Plate High Hardness 58-63 HRC Wear Resistant Composite Welded Wear Steel Plate

high hardness 58-63 HRC wear resistant composite welded wear steel plate

 Wodon wear plates are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate.

The overlay alloy has a high amount of chromium carbide hard particles which makes the plate have good wear and impact resistance.

Overlay thickness range: 3-25mm

Wear plate size: 1400*3000,1400*3400, 1400*3500, 2100*3500, customized.

Wodon wear plates are used to make many complex wear parts to be positioned in high wear places.

We have several equipment to transform our plates: six sets of plasma cutting machine , 4 bending machines and pressing machines,

with high processing capacity operated by engineers and technical experts, we can provide wear plate cutting, bending, bolting, punching and welding according to customer's drawings.

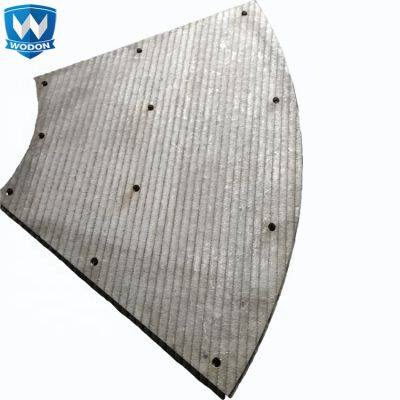

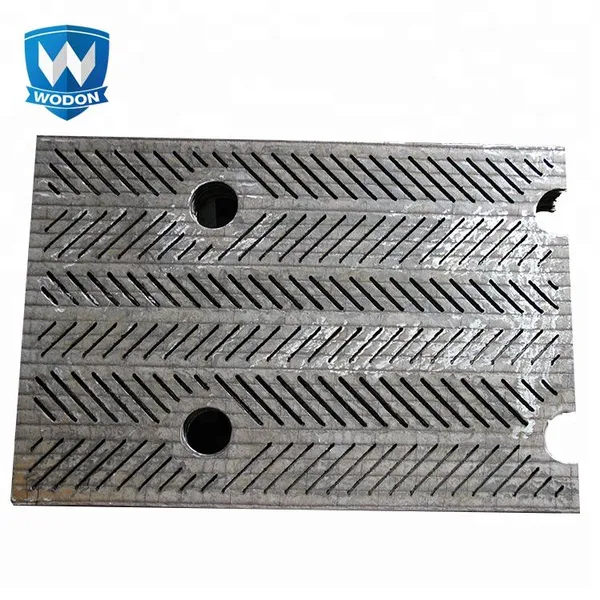

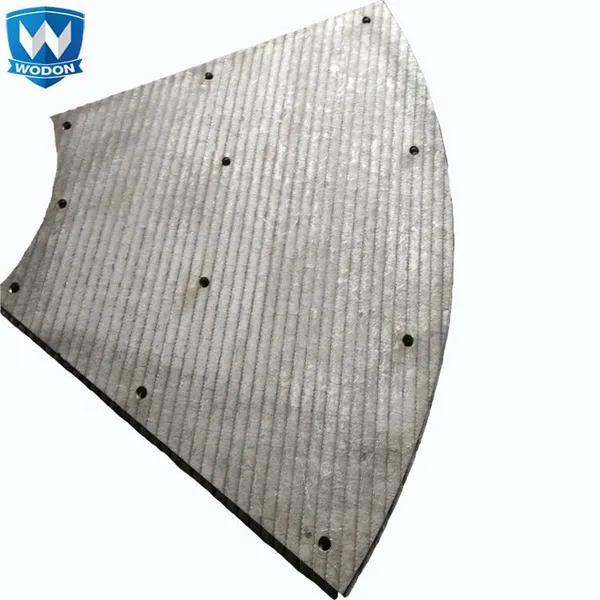

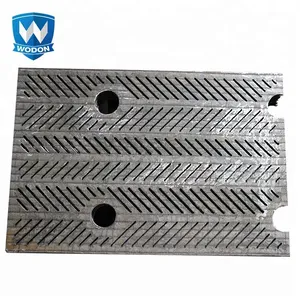

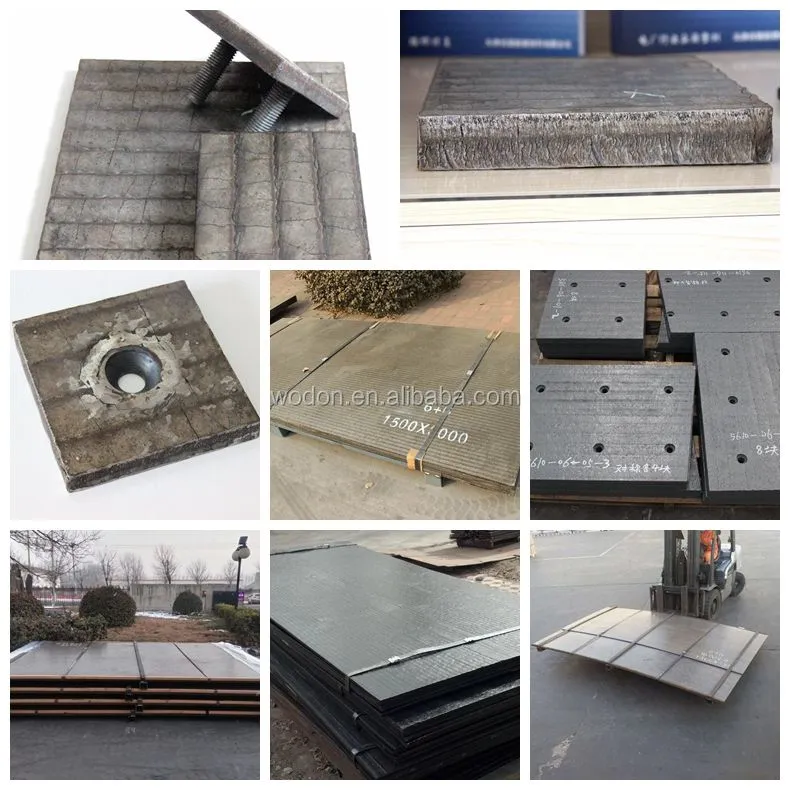

1.Drilling Holes

Straight holes and Countersunk holes.
2.Bolt embedded welding in the back
Embedding the Pre-processed bolt in the back of wear plate.
3.Bending
Wodon wear plate can be cold formed and made into curve or cone.
4.Welding
Wodon wear plate can be welded and assembled into kinds of wear parts.

 Wear pipe, Elbow, Square to round transition

 We also introduced in our factory automatic welding equipment for pipes (internal and external) meeting the increasing demand for small diameter wear pipes.

Wear pipes

1. Steel pipe with regular base material + overlay,  pipes are welded with our automatic welding machine resulting in good shaped and flat surface pipes.

2. Bending the wear plate into round pipes

3. Assembling the wear plate into square pipes

Automatic welding, metallurgical bonding, available to weld the maximum pipe diameter of 80mm and maximum pipe length of 3000mm.

 Wear elbow

Weld directly on the elbow wall

using wear plate to make lobster back bend

wear plate used to make tube

  Quality Assurance:  25-40% high chrome content, carbide (Cr7C3) volume fraction above 50%, 58-65HRC, smooth surface, high wear resistance.

  Professional:  Many experienced surface engineering professionals, solid technical knowledge and R&D capacity.

  OEM&ODM: Customized orders are available.

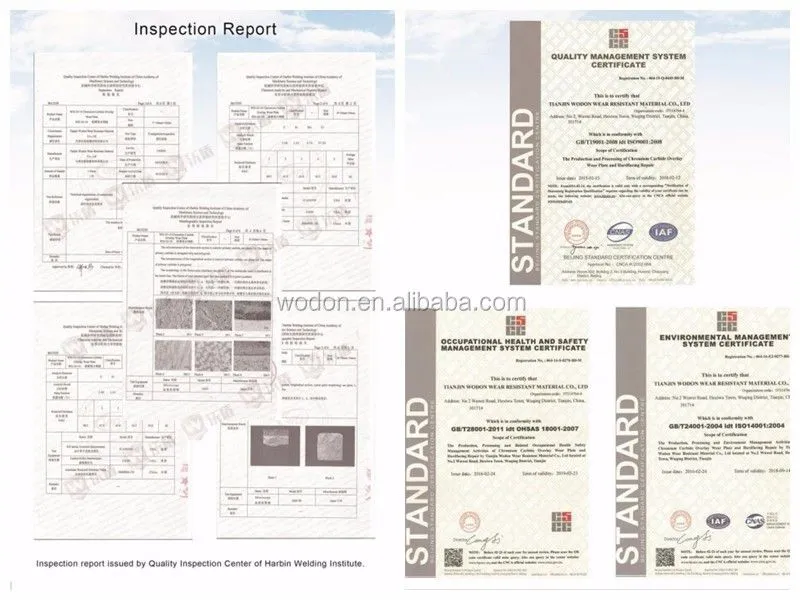

  Certificates: ISO9001, OHSAS18001, ISO14001, ASTM G65 test report, third party test report, etc.

  Jiangsu Wodon Wear Resistant Material Co. Ltd is located in Jiangsu city, China’s northern international shipping center. We are specialized in researching,

 developing and producing wear resistant products with many years experience in this field. We have more than 200 employees, with an annual output of

 90,000 m² of wear plates and 8,000 tons of welding consumables.

  hardface wear plate workshop, open arc welding machine, bending machine, plasama cutting machine

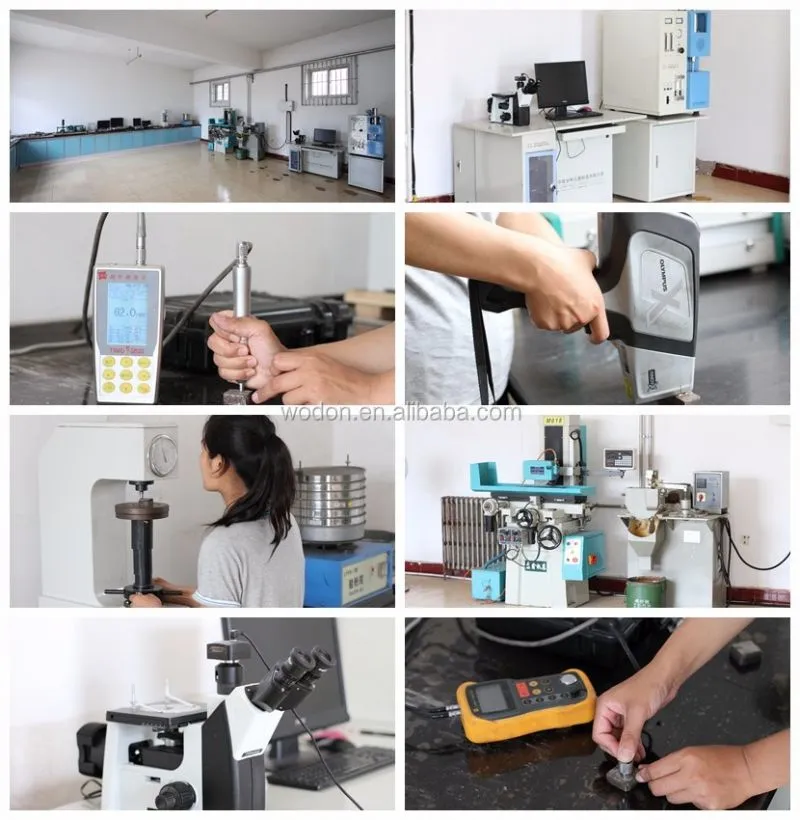

 Testing equipment :Carbon-sulfur Detector, Portable Rockwell Hardness Tester, Portable Spectrograph, Desktop Rockwell Hardness Tester, Wet Sand Rubber Wheel Wear Tester, Metallurgical Microscope, Thickness Tester, Metallographic Grinding and Polishing Machine, Powder Test Sieve.

welding wire warehouse, 150-250kgs welding wires packed in drum

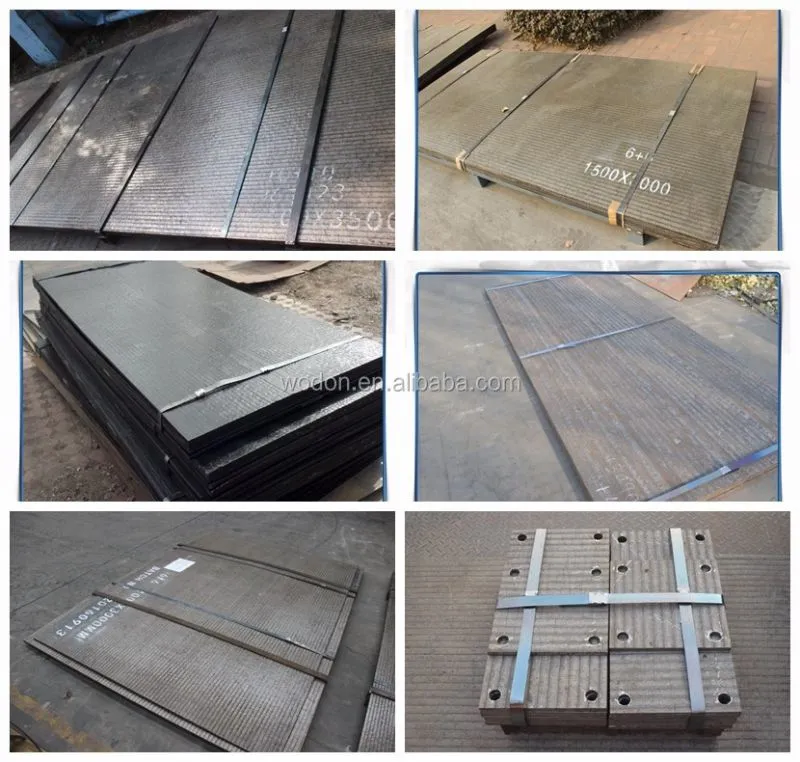

  wear plate warehouse and sample room

Customer on site visit and exhibitions

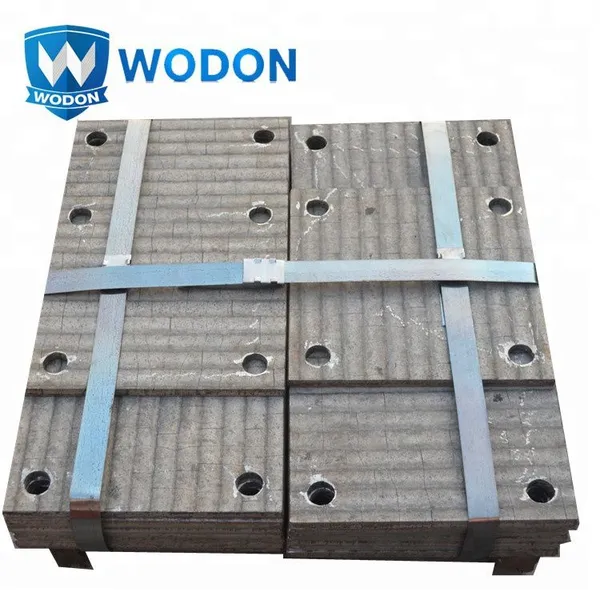

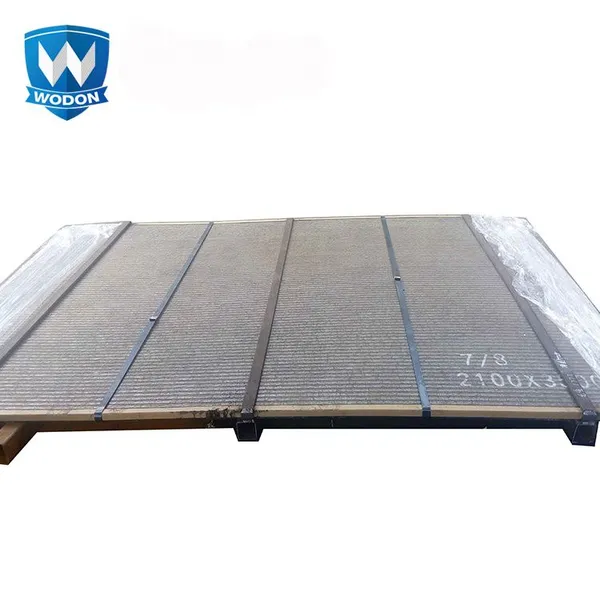

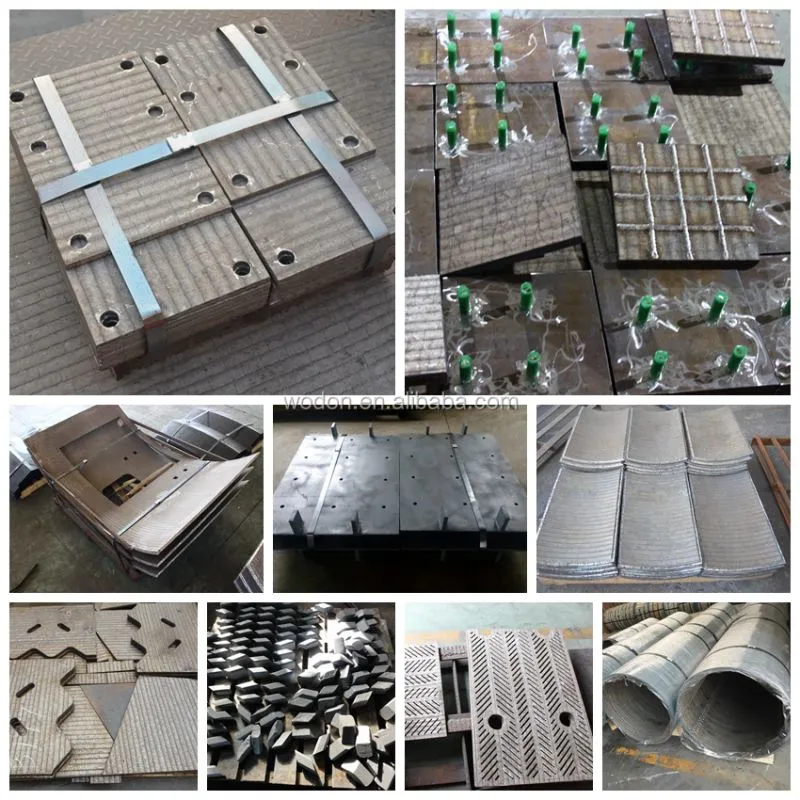

 Packaging: Steel pallet, Non fumigation pallets,Customized

Packaging Size: 1.4*3.4, 1.4*.3.0, 1.4*3.5, 2.1*3.5, customized.

Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

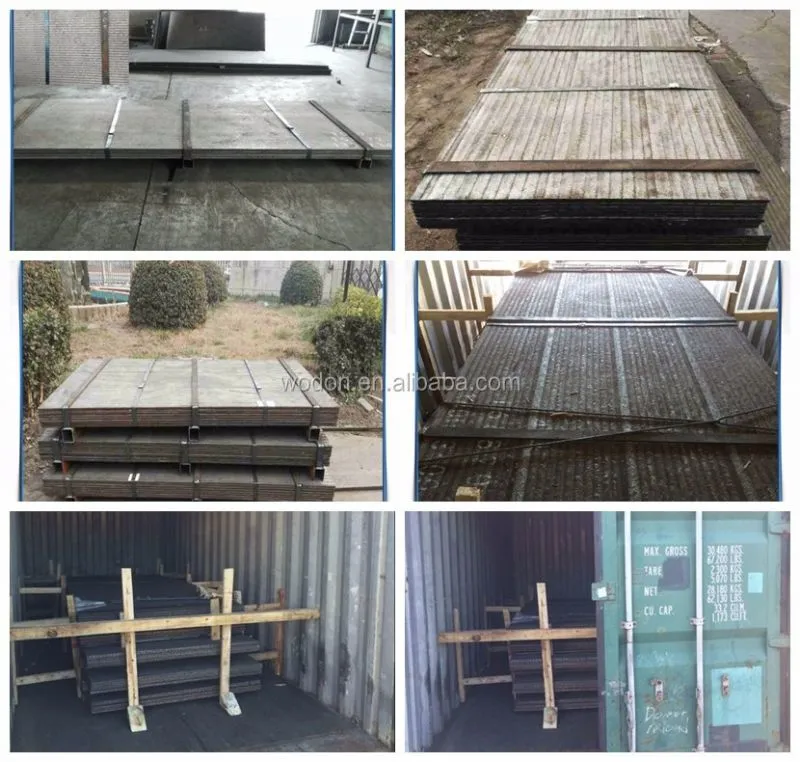

 wear plate packaging

 Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s probems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
