CrC Alloy Welding Hardfacing Bimetal Steel Sheet
- T/T Credit Card
You May Like
-
High Quality CrC Coated Wear Resistant Clad Concrete Pump High Strength Cco Wear Plate
-
Chute Liner Heat Resistant Standard Hardened Wear Steel Plate
-
Loader Bucket Wear Resistant Steel Sheet Plate DIN Certified Ship Plate Application Customized Bending Cutting Welding Services
-
HRC 58-63 Weld Hard Face Cladding Wear Plate
-
High Wear Resist Overlaying Hardfacing Steel Plate Liner
-
Wear Abrasion Resistant Steel Plate Made by Chromium Carbide Overlay Hardfacing
Product Description

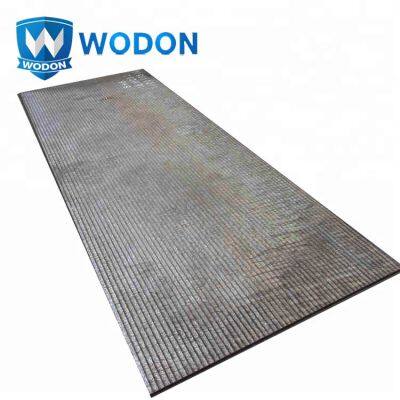

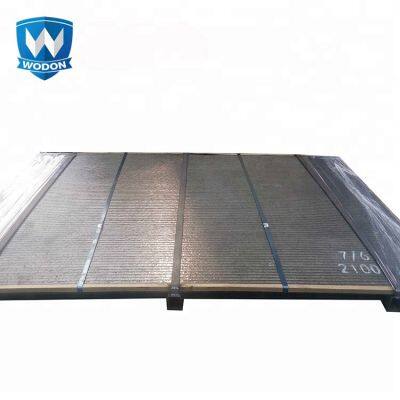

CrC alloy welding hardfacing bimetal steel sheet

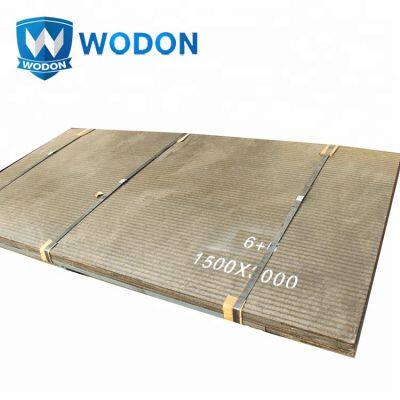

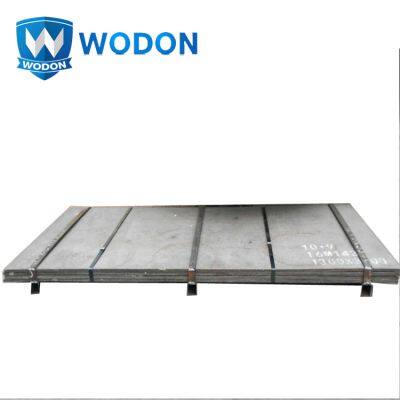

Chromium carbide overlay bimetal steel sheet without cracks

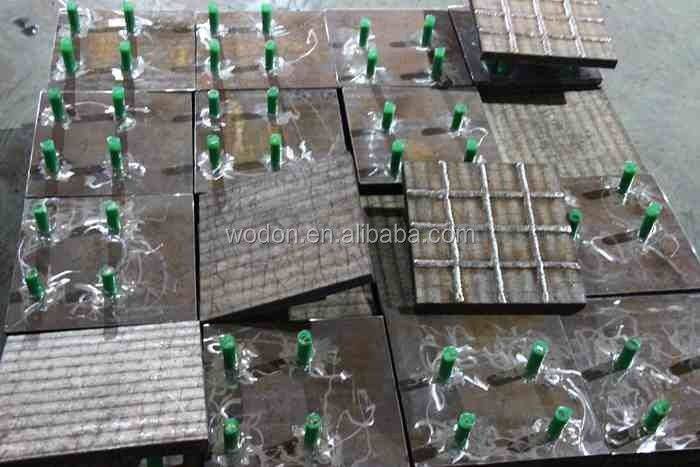

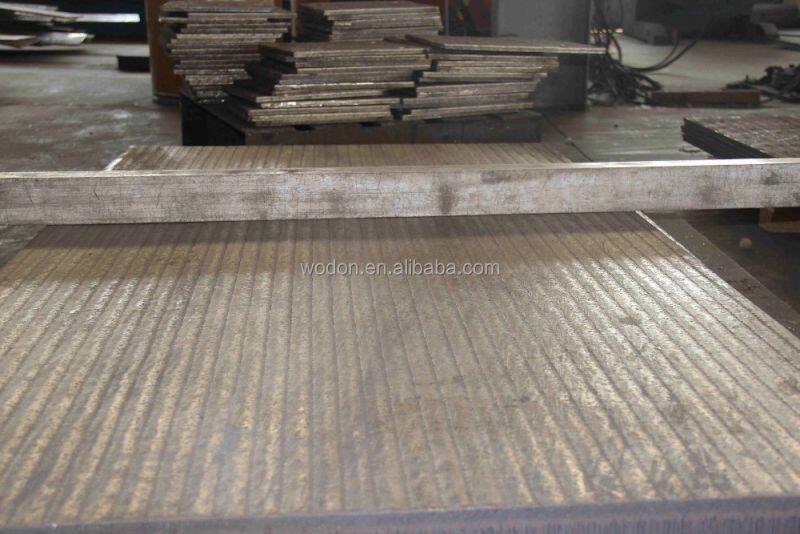

Wear parts processed with bimetal welding steel sheet
alloy plate
Wodon CrC alloy bimetal welding steel sheet wear plate are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles.
|
Product Name |
CrC alloy welding hardfacing bimetal steel sheet |
|
Brand |
Wodon |
|
Base Plate |
Q235/Q345 |
|
Hardfacing layer |
High chromium high carbide overlay |
|
Chemical Composition |
C(%): 3.0-5.0 ,Cr(%): 25-40 |
|
Microstructure |
The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
|
Hardness |
HRC58-65 |
|
Surface Treatment |
Hardfacing,clading,coated |
|
Technique |
Hardfacing,open arc welding,submerged arc welding |
|
Wear Resistance |
High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel |
|
Impact Resistance |
Medium |
|
Flatness tolerance |
±3mm/m |
|
Thickness tolerance |
Uniform overlay thickness, with tolerance within 0-0.5mm |
|
Main Thicknesses |
3+3,4+4, 5+5 6+4,6+5,6+6,6+8 8+4,8+5,8+6,8+7,8+8 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 14+6,14+8,14+10,16+6,16+8,16+10 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 Customized |
|
Plate Size |
Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm Customized |
|
Place of Origin |
China |
|
Application |
Mining,Steel,Cement,Power,Port,etc |

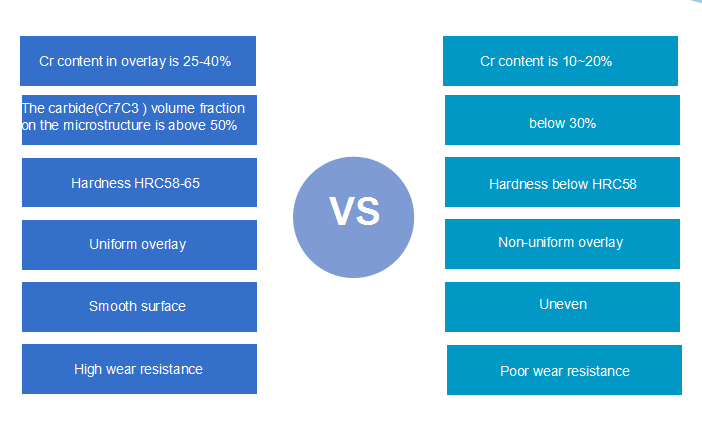

Wodon Alloy Bimetal Welding Steel Sheet Others

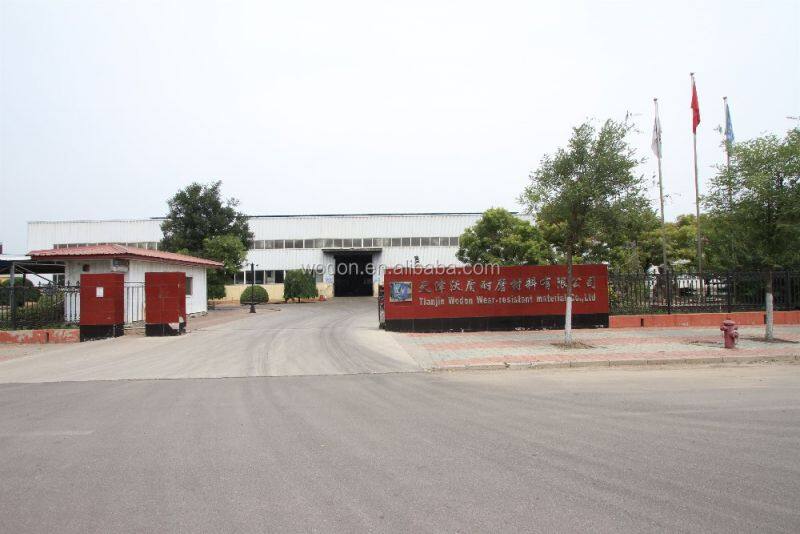

Factory

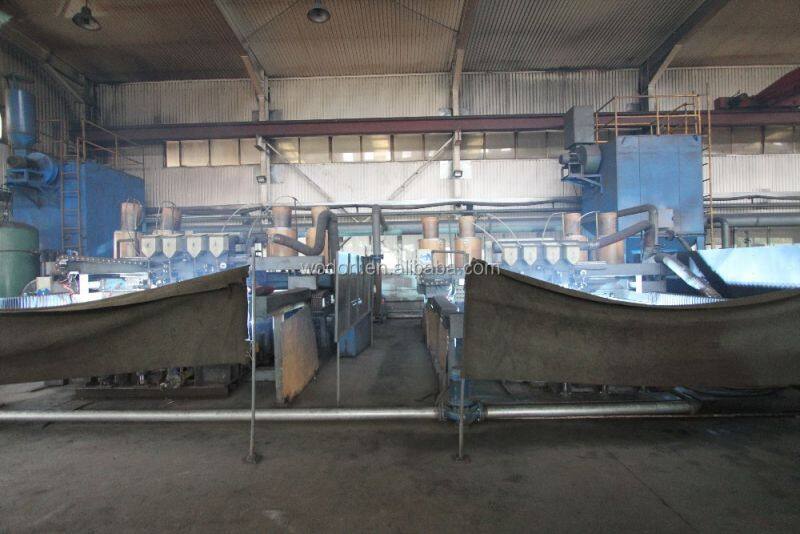

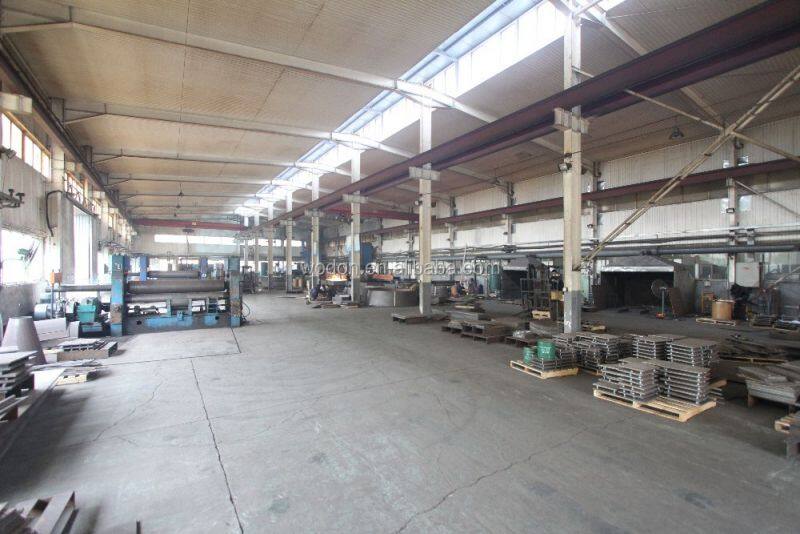

Wear plate workshop

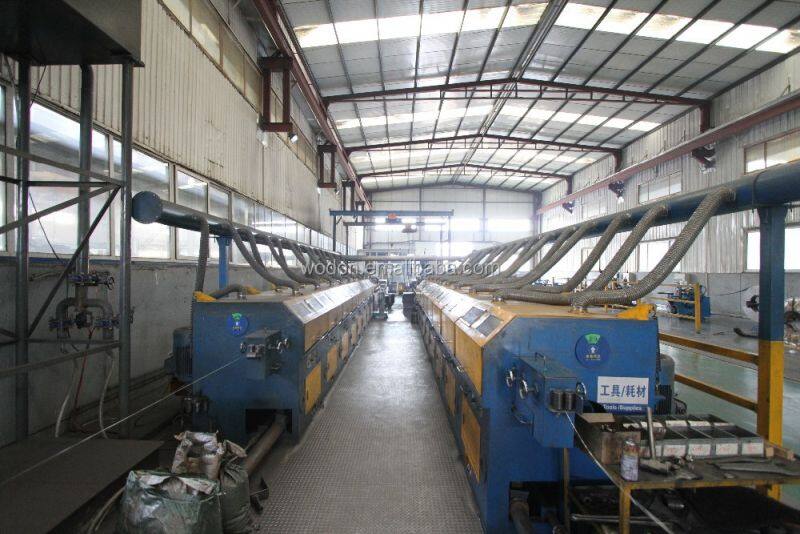

Flux cored welding wire workshop

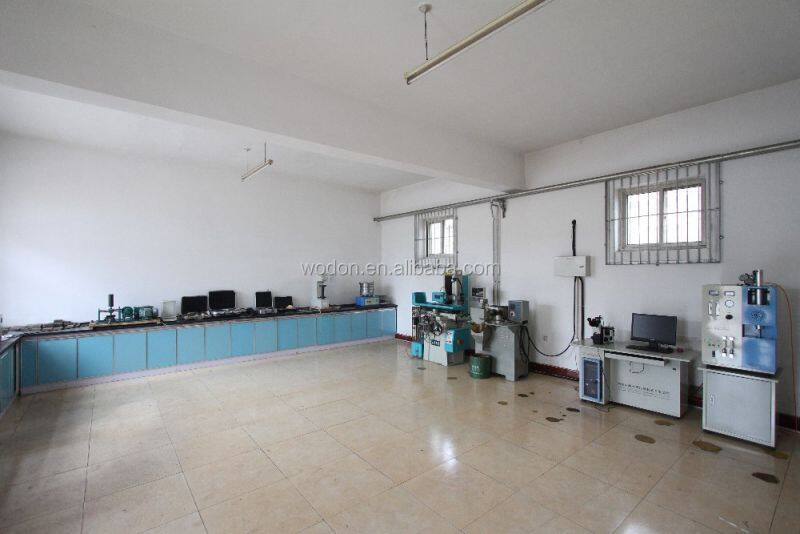

Labratory

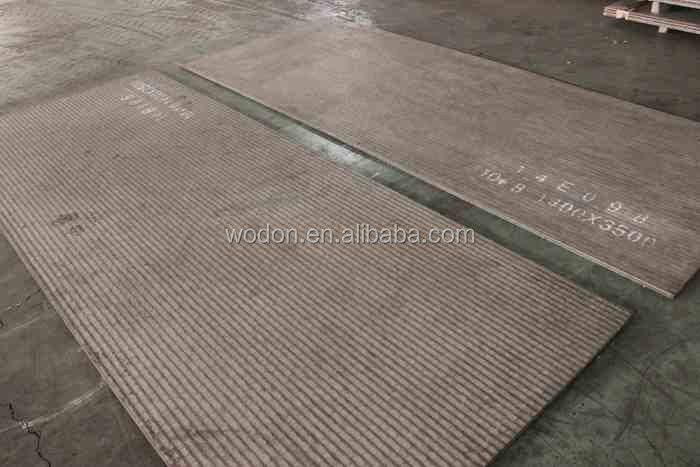

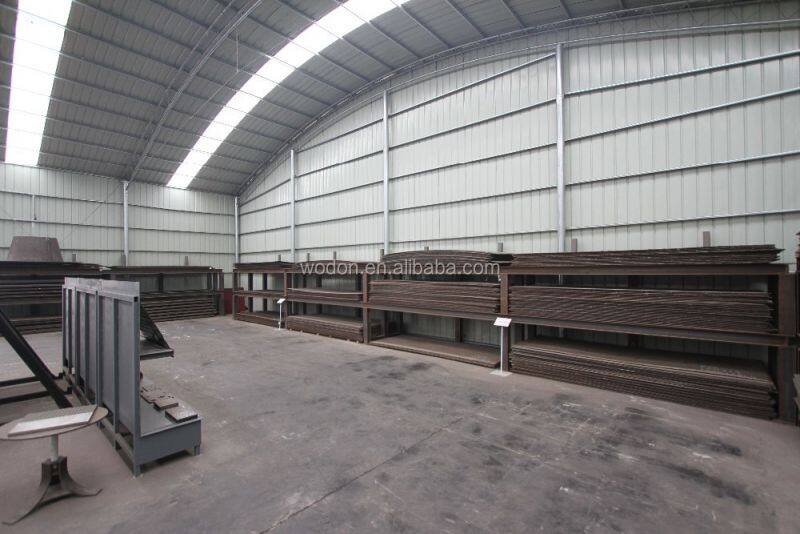

Wear plate warehouse
Packaging: Steel pallet, Non fumigation pallets,Customized
Packaging Size: 1.4*3.4, 1.4*.3.0, 1.4*3.5, 2.1*3.5, customized.
Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

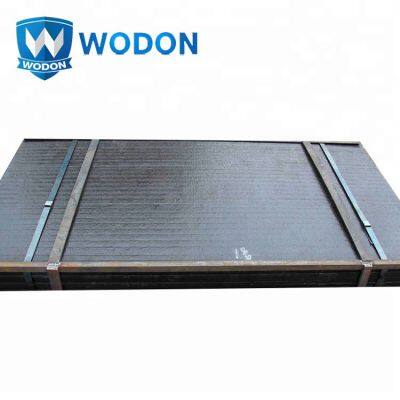

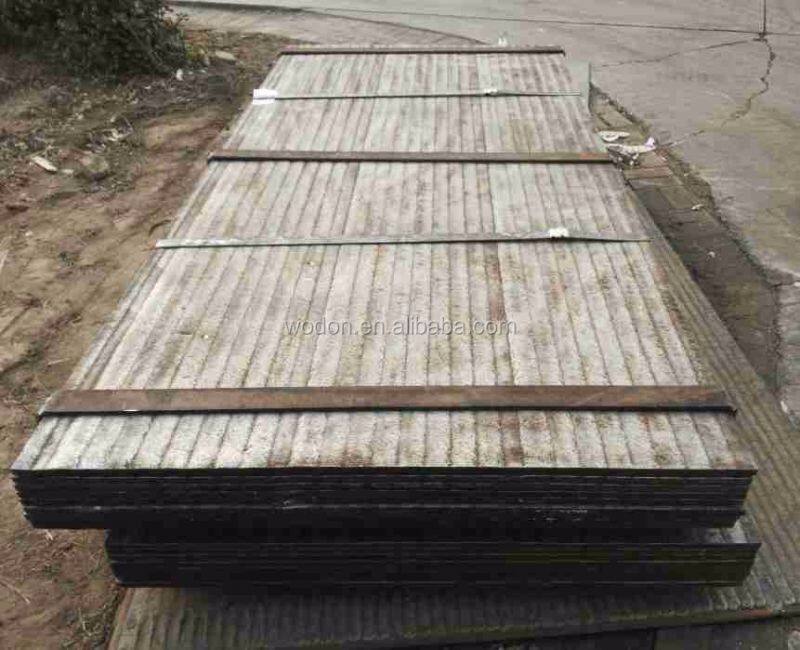

Wear plate packaging
Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s problems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
If you have another question, pls feel free to contact us as below:
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company\'s technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
