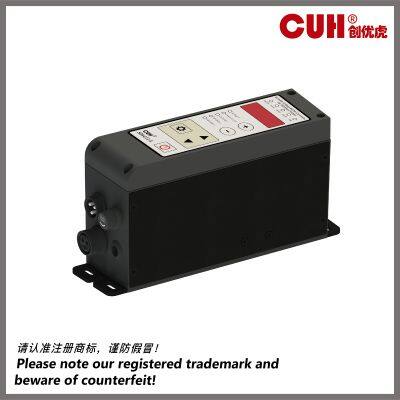

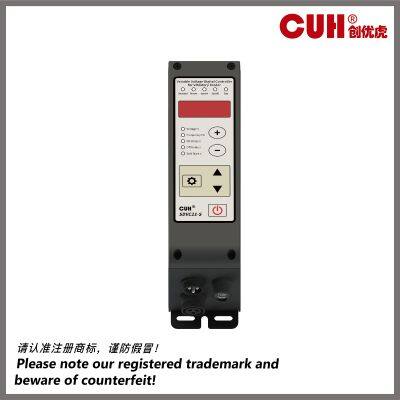

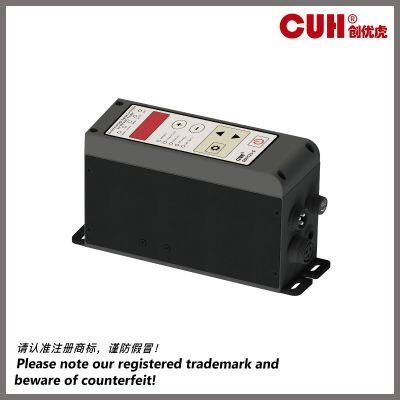

SDVC21-S（5A）Variable Voltage Digital Controller for Vibratory Feeder

CE certificate

Automatic Voltage Regulation: The internal digital voltage regulation circuit can reduce feed speed variation caused by mains voltage fluctuation.

Time Adjustable Soft Start: When powered on, the controller will gently increase output voltage from 0 to the preset value to avoid a sudden shake. Soft start time can be digitally preset

Preset Speeds: 4 feed speeds can be preset, stored, and outputted by connecting external short-circuit signals.

Dual Switch Sensor ON/OFF Control: 2 NPN switch sensors or PLCs can be connected to turn on/ off the controller.

Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.

Remote Speed Control: The output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DC signal.

DC Control Orutput: The controller can output low voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices.

Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.

Overvoltage Protection: If the input voltage is too high, the power supply of the controller will be shut down automatically to protect itself.

Fuse-Short Circuit Protection: If the output of the controller is short-circuited, the fuse inside will be blown to protect the controller and the load.

Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high voltage.
