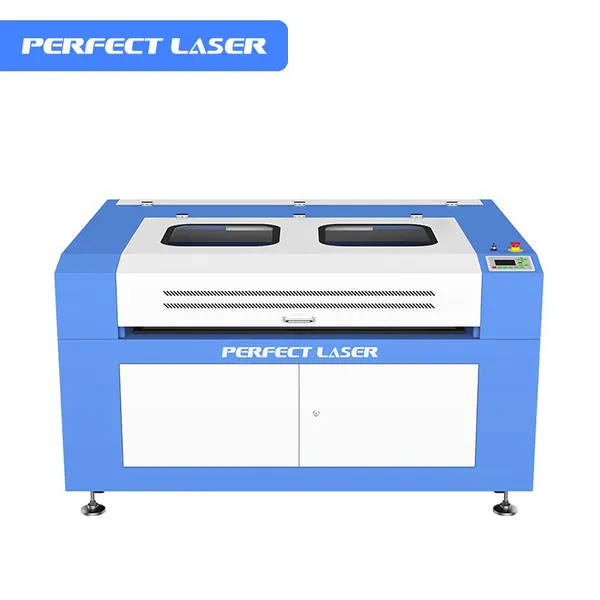

Hot Sale 13090 Co2 Laser Engrave Machine / Laser Cutter and Engraver 1390 / Clothing Laser Cutting Machine for Leather and Acrylic

Hot Sale 13090 Co2 Laser Engrave Machine / Laser Cutter and Engraver 1390 / Clothing Laser Cutting Machine for Leather and Acrylic photo-1
Hot Sale 13090 Co2 Laser Engrave Machine / Laser Cutter and Engraver 1390 / Clothing Laser Cutting Machine for Leather and Acrylic photo-2
Hot Sale 13090 Co2 Laser Engrave Machine / Laser Cutter and Engraver 1390 / Clothing Laser Cutting Machine for Leather and Acrylic photo-3
Hot Sale 13090 Co2 Laser Engrave Machine / Laser Cutter and Engraver 1390 / Clothing Laser Cutting Machine for Leather and Acrylic photo-4
Hot Sale 13090 Co2 Laser Engrave Machine / Laser Cutter and Engraver 1390 / Clothing Laser Cutting Machine for Leather and Acrylic photo-5
US$ 2550 - 4660 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Perfect Laser
Place of Origin:
China
Model Number:
PEDK-13090
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
20 days
Brand Name Perfect Laser
Place of Origin China
Model Number PEDK-13090
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) 1970mm*1480mm*1250mm
Condition New
Graphic Format Supported AI, DWG, DXF, PLT
Cooling Mode Water Cooling
CNC or Not No
Applicable Material Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Laser Type CO2
Engraving Speed 0-60000mm/min
Engraving Area 1300*900mm

Product Introduction

PEDK-13090 laser engraving machine is the most hot-selling model accepted by our customers. Co2 laser cutters has large 1300mm by 900mm working area, compact nesting, convenient storage materials.

The  knife-shape aluminum heavy strip work of the platform can avoid  defective products caused by reflection of backstop while cutting  acrylic & wood materials.

If change into honeycomb working table, Co2 laser cutters can used to engrave and cut cloth, fabric, carpet, shoes, etc.


Product Features

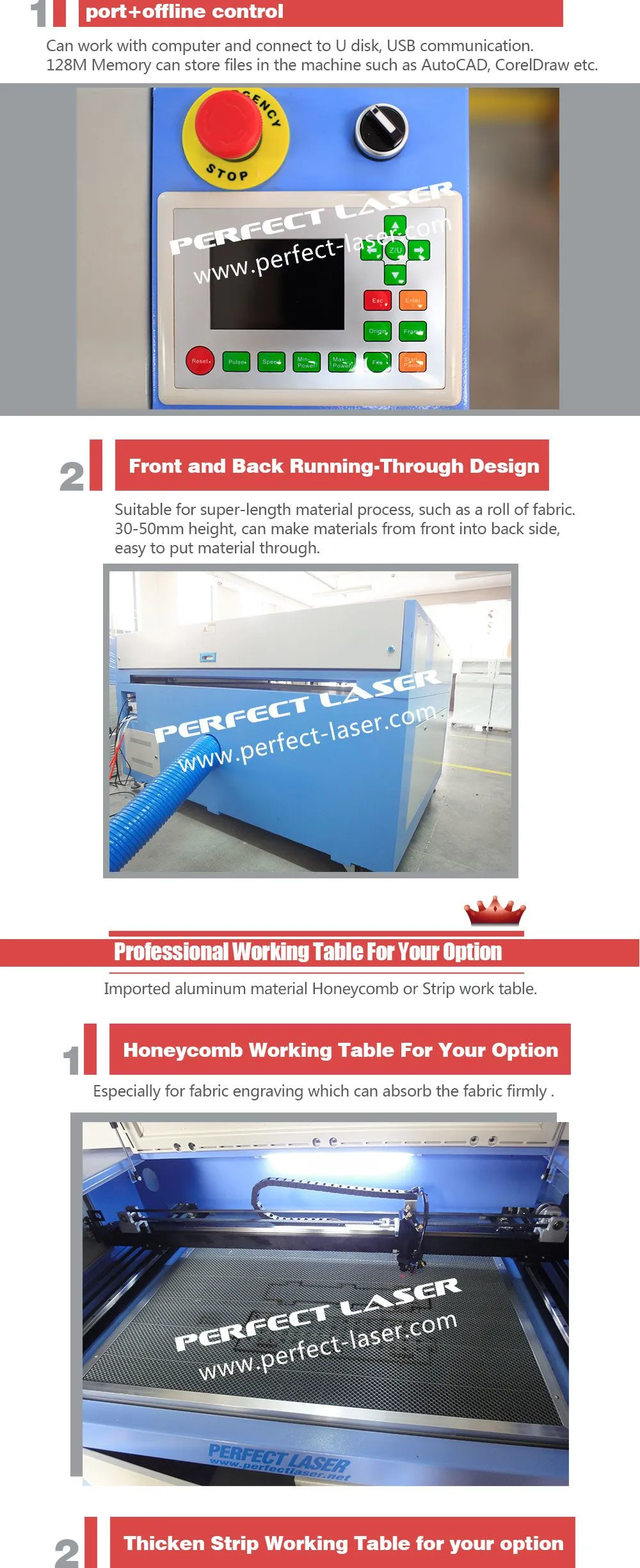

1. Professional Working Table: Honeycomb  or Strip work table of the 80w laser cutter for you to choose, use  imported stable aluminum material, can meet the needs of diversified  laser procession.

2. Taiwan Made Ball Screw Rod: The  motorized up and down table adopt Taiwan “Double-win” brand high  precision ball screw rod and high accuracy linear running guide rail,  can improve the precision and accuracy of the 100w laser cutter.

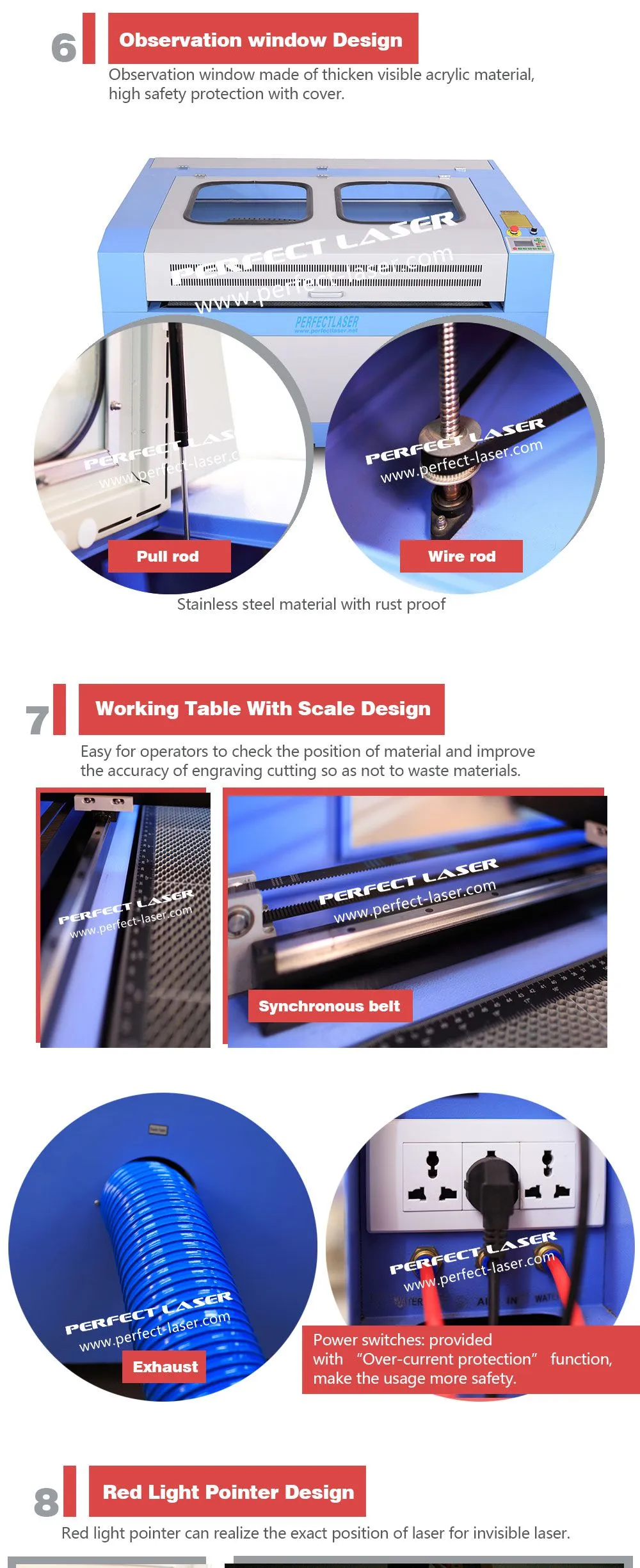

3. Red Light Pointer Function: As laser light is invisible, and the red light pointer of the pvc laser cutter can realize the exact position of laser beam.

4. Special  Front and back running-through design 30-50mm height, Co2 laser cutters  can make a unique door for the limitless engraved materials come  through from front into back side, easy to put material through.

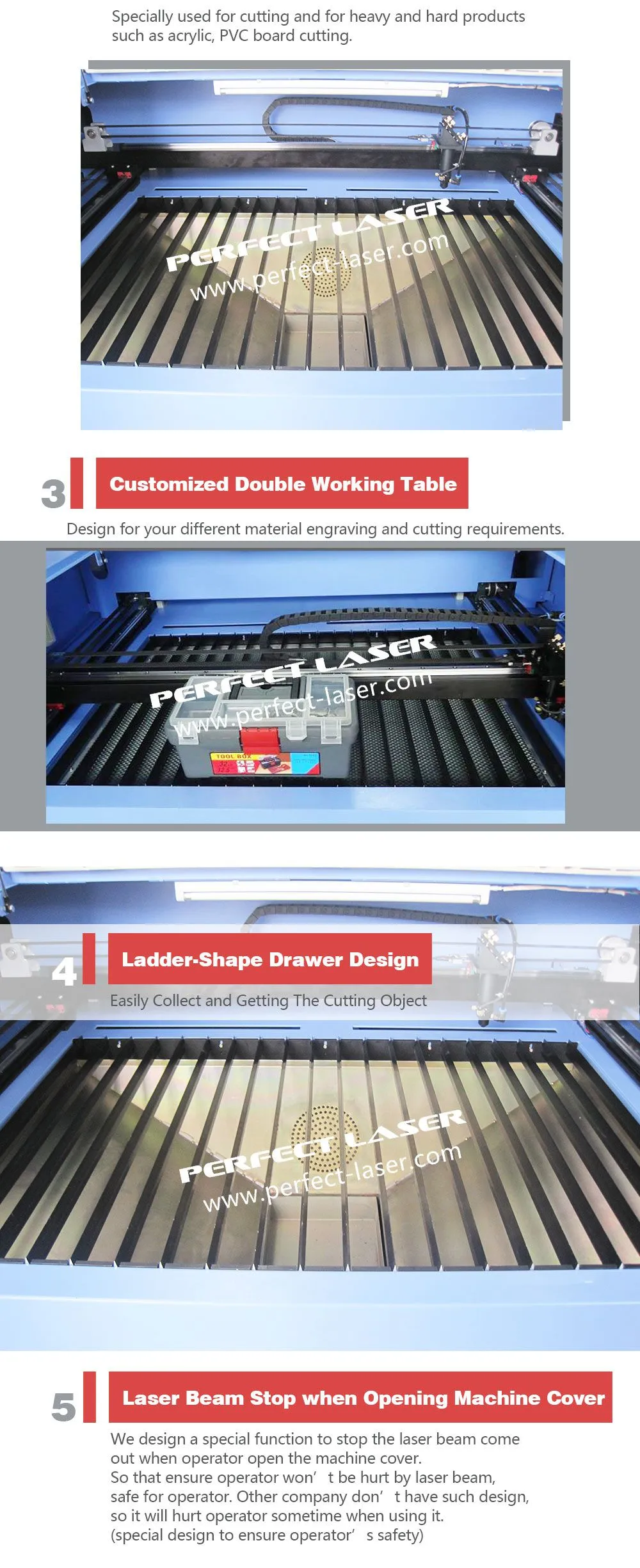

5. Ladder-Shape Drawer Design: Easily collect and getting the cutting object.

6. Laser Beam Stop when Opening Machine Cover: We  design a special function to stop the laser beam come out when operator  open the 130w laser cutter machine’s cover. So that ensure operator  won’t be hurt by laser beam, safe for operator. Other company don’t have  such design, so it will hurt operator sometime when using it.

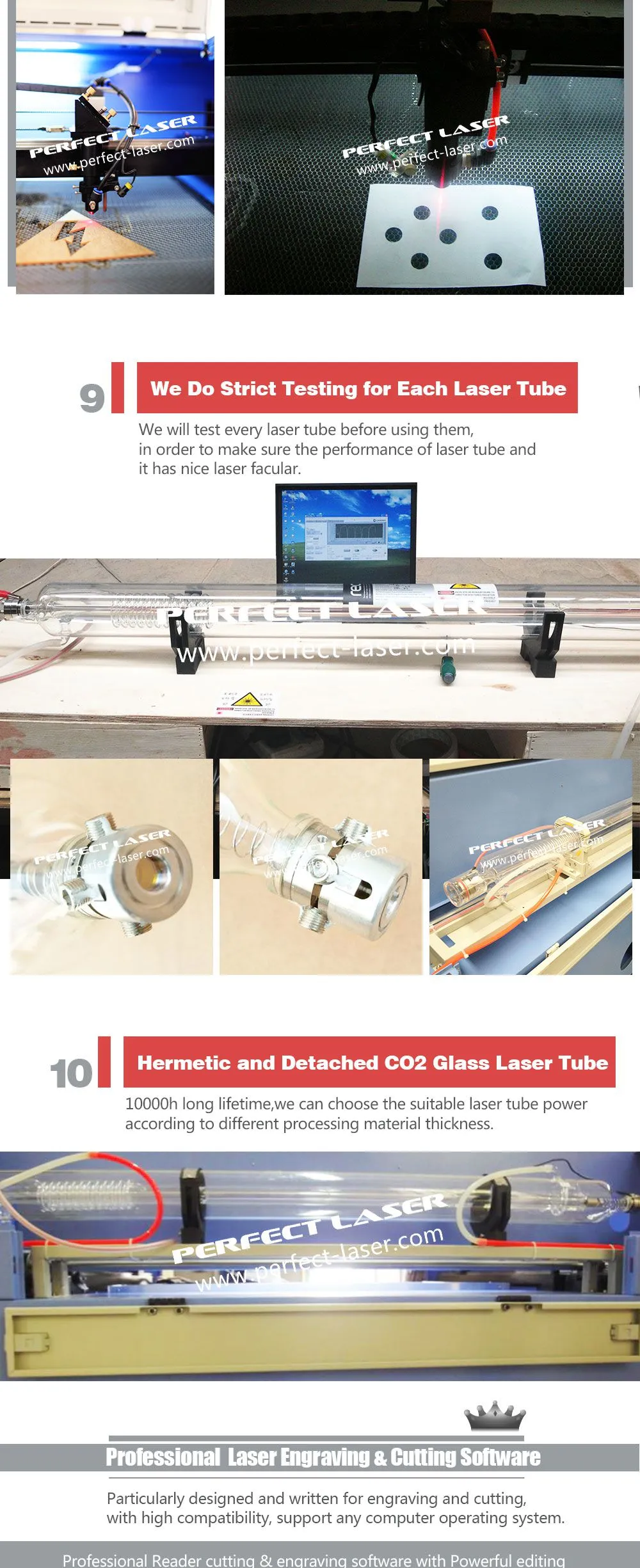

7. We Do Strict Testing for Each Laser Tube: We  will test every laser tube before using them, in order to make sure the  performance of laser tube and it has nice laser facular.


Application
1.  Available materials: the Co2 laser cutters are widely applied in  acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather,  paper, EVA materials, PVC plastic, crystal, bamboo, seal, rubber plate,  marble, granite, Gum, Ceramics, etc. nonmetal materials.


2. Application Industry: the Co2 laser cutters are widely applied in advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.


Technical Data

Working Area

1300x900mm (4 feet*3 feet) Co2 Laser Cutters

Laser Power

60w / 80w / 100w / 130w / 150w

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

0-60000mm/min

Cutting Speed

0-10000mm/min

Cutting Thickness

0-25mm acrylic (Others Determined by Materials)

Repeat Location Accuracy

+/-0.0125mm

Driving Mode

DC0.8A 24V Stepper Motor

Position System

Red dot Laser Pointer

Interface

USB port transfer

Voltage

AC220v/50hz or 110v/60hz

Machine Power

900w

Controlling System

CNC Professional Control System

Support Graphics Mode

BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.

Cooling Mode

CW-3000 Water Cooling (with Protection Function)

Auxiliary Devices

Exhaust Fan and Exhaust Pipe

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Power Control Mode

Laser Energy Combining Movement Control System

Software

Professional Reader Laser Cutting Software

Operating Temperature

0-45C

Operating Humidity

5-95%

Packing

Wooden Box

Guarantee Time

12 Months for Machine, 3-10 Months for Laser Tube

Operation

VCD Training, Engineer Overseas Available

Machine Size

1970mm*1480mm*1250mm

Product Tags: laser cutter and engraver , co2 laser engrave machine , clothing laser cutting machine
