Help CenterWear-resistant Lining Plate for the Inner Part of the Mining Feeding Chute
Related Products
-
Chromium Carbide Overlay Wear - Resistant PlateUS$ 200 - 300MOQ: 1 Square Foot -
Chromium Carbide Wear Plates for Cement Industry High Abrasion Resistance Custom Sizes AvailableUS$ 200 - 300MOQ: 1 Square Foot
-
Hardfacing Welding CCO Bimetallic Wear Resistant Steel PlatesUS$ 200 - 300MOQ: 1 Square Foot
-
Premium Chromium Carbide Overlay Cladding Hardfacing Wear Plate for Industrial DurabilityUS$ 100 - 600MOQ: 1 Square Foot
-
Bimetallic Wearable Lining Plate Bucket Excavator Customizable Bimetallic Wearable Lining PlatesUS$ 100 - 300MOQ: 1 Square Foot
Wodon wear resistant parts

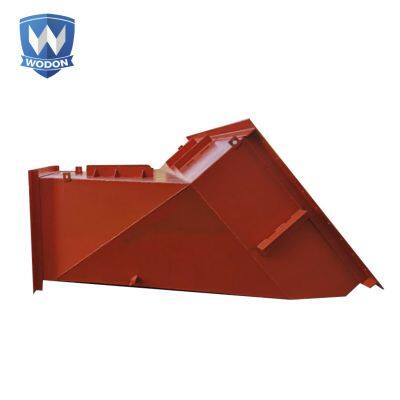

chromium carbide overlay bimetallic wear resistant liner for chute

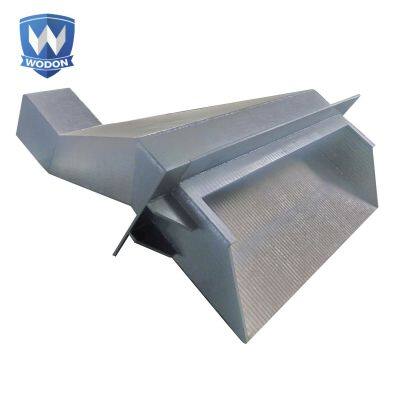

wear resistant chute made by cco plate
Wodon chrome alloy coated mixer bottom with super wear resistance
1. Wear resistant steel plate:
Medium/low carbon steel+abrasion resistant layers→wear resistant steel plate with metallurgical bonding
Q235/Q345B+Chromium Carbide overlay→wear resistant composite plate with Submerged arc or Open arc welding
2. Process: All kinds of Liners are made of wear resistant steel plate by cutting, bending, punching, bolting and welding.
According to customer's drawings.
3. Standard size: Customer's Requirement
Open arc welding plate : 1.4 m*3.4 m, 1.5*3.0 m, 2.0*3.0 m, customized
Submerged arc welding plate : 1.4 m*3.0 m, 1.4 m*3.5 m, 2.1 m*3.5 m, customized4. Certification: ISO9001:2008; OHSAS 18001-2007; ISO14001:2004
5. Detail:
The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 55~65 and depends on the overlay's thickness.
| Product name | Wodon wear resistant chute liner with bimetal plate |
| Material | Q235/Q345+Chromium carbide overlay alloy |
| Certificate | ISO9001:2008 |
| Chemical composition | C: 3.0~5.0 % Cr: 25~40 % |
| Microstructure | Chromium carbide hard particles volume fraction above 50 % The maximum hardness of chromium carbide is HV 1800 |
| Wear Resistance | Our test shows that the wear resistance of Wodon plate is 30 times higher than low carbon stell and 12 times than heat treated steel |
| Impact resistance | Wodon wear plates can withstand medium impact |
| Temperature resistance | Wodon wear plates can withstand temperatures up to 600 ºC. We can customize high temperature resistance wear plates according to customer's requirements which can withstand maximum terperatures up to 900 ºC |
| Flatness tolerance | ± 3 mm/m |
| Thickness tolerance | Uniform overlay thickness, with tolerance within 0~0.5 mm |
| Surface treatment | hardfacing, cladding, open arc or submerged arc welding |
| Standard sizes | Open arc welding: 1.4*3.4 m, 1.5*3.0 m and 2.0*3.0 m, customized Submerged arc welding: 1400*3000 mm, 1400*3500 mm, 2100*3500 mm, customized |
| The main thicknesses (mm) |
3 on 3, 4 on 4, 5 on 5 4 on 6, 5 on 6, 6 on 6, 8 on 6 4 on 8, 5 on 8, 6 on 8, 7 on 8, 8 on 8 4 on 10, 5 on 10, 6 on 10, 7 on 10, 8 on 10, 9 on 10, 10 on 10, 20 on 10 4 on 12, 5 on 12, 6 on 12, 7 on 12, 8 on 12, 10 on 12, 11 on 12, 12 on 12 6 on 14, 8 on 14, 10 on 14 6 on 16, 8 on 16, 10 on 16 6 on 18, 8 on 18, 10 on 18 5 on 20, 6 on 20, 8 on 20, 10 on 20, 20 on 20, 10 on 30, 10 on 40, and Customized |
Wodon wear plates are used to make many complex wear parts to be positioned in high wear places. We have several equipment to transform our plates: 7 CNC automatic plasma cutting machine, 7 multi functional bending machines and pressing machines, with high processing capacity operated by engineers and technical experts. We can provide wear plate cutting, bending, punching and welding according to customer's drawings

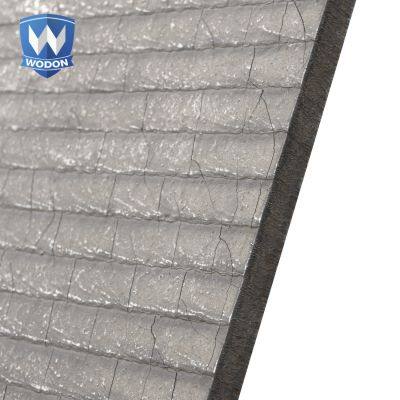

In the picture there are many cracks, please don't worry. The wear resistant steel plate is not broken and the cracks are good to release the thermal stress. Wodon wear plate is composed of many welding beads and the overlay contains a series of evenly spaced hairlike cracks (The cracks are distributed throughout the overlay thickness, but end up on the base plate's surface). These transversely distributed cracks relief the structure's tension improving wear resistant steel plate's performance like mechanical properties and the overlay don't fall off the base metal.
Tianjin Wodon Wear Resistant Material Co., Ltd is located in Tianjin city, China's northern international shipping center. We are specialized in researching, developing and producing wear resistant products with many years experience in this field. We have more than 300 employees, with an annual output of 140000 squaremeters of wear plates and 9000 tons of welding consumables.
Packaging: Steel pallet, Non fumigation pallets, Plastic Film, Customized
Packaging Size: 1.4*3.4 m, 1.5*3 m, 2*3 m, 1.4*.3.0 m, 1.4*3.5 m, 2.1*3.5 m, customized.
Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Loading into 20 ft or 40 ft container.
Q: Are you trading company or manufacturer ?
A: We are manufacturer with 4 factorys, our own sales department and our own inspection technology department.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
also, FOB, CIF, CFR all are available for your product.
5. More Information
