Help CenterWear Resistant Chrome Alloy Flux Cored Welding Wires
Related Products
-
Wear-Resistant Hardfacing Welding Wire for Shield Machine Cutter HeadsUS$ 30 - 50MOQ: 1 Kilogram -
High-Performance Hardfacing Wear-Resistant Welding Wires for Single-Tooth RollersUS$ 20 - 50MOQ: 1 Kilogram
-
Durable Flux-Cored Wear-Resistant Welding Wires for Grinding RollersUS$ 30 - 50MOQ: 1 Kilogram
-
High-Performance CO2 Wear-Resistant Welding Wires for Roller Press MachinesUS$ 20 - 50MOQ: 1 Kilogram
-
Roller Surface Surfacing Welding Wear-resistant Welding WireNegotiableMOQ: 1 Ton
Welding Wires
Smooth Surface
No Clearing Slag
Low Welding Spatter
High Welding Efficiency
High Transition Coefficient--0.9
Model |
Specification (mm) |
Hardness (HRC) |
Main Ingredient |
Main Application |
WD161 |
2.4 2.8 3.2 |
58-65 |
C:3.0-5.0 Cr:22-27 |
Used for wear plate single layer hardfacing, hardness is up to HRC60 after welding. |
WD261 |
2.4 2.8 3.2 |
57-63 |
C:3.0-5.0 Cr:22-27 |
Used for wear plate double layer hardfacing, hardness is above HRC60 after welding,good impact resistance and not easy to fall off. |
WD361 |
2.4 2.8 3.2 |
57-63 |
C:3.0-5.0 Cr:24-30 |
Used for wear plate multi-layer hardfacing, hardness is above HRC60 after welding,good impact resistance and not easy to fall off. |
WD181 |
2.4 2.8 3.2 |
58-65 |
C:3.0-5.0 Cr:22-27 |
Used for thin sheet welding, hardness up to HRC60 after welding, control overlay thickness below 3mm to ensure good wear resistance. |
WD161H |
2.4 2.8 3.2 |
58-65 |
C:3.0-5.0 Cr:25-32 |
Overlay has high chromium content after welding, good wear resistance. Used for wear plate single layer hardfacing. |
Workshop
4 welding wires production lines9,000 tons output per year

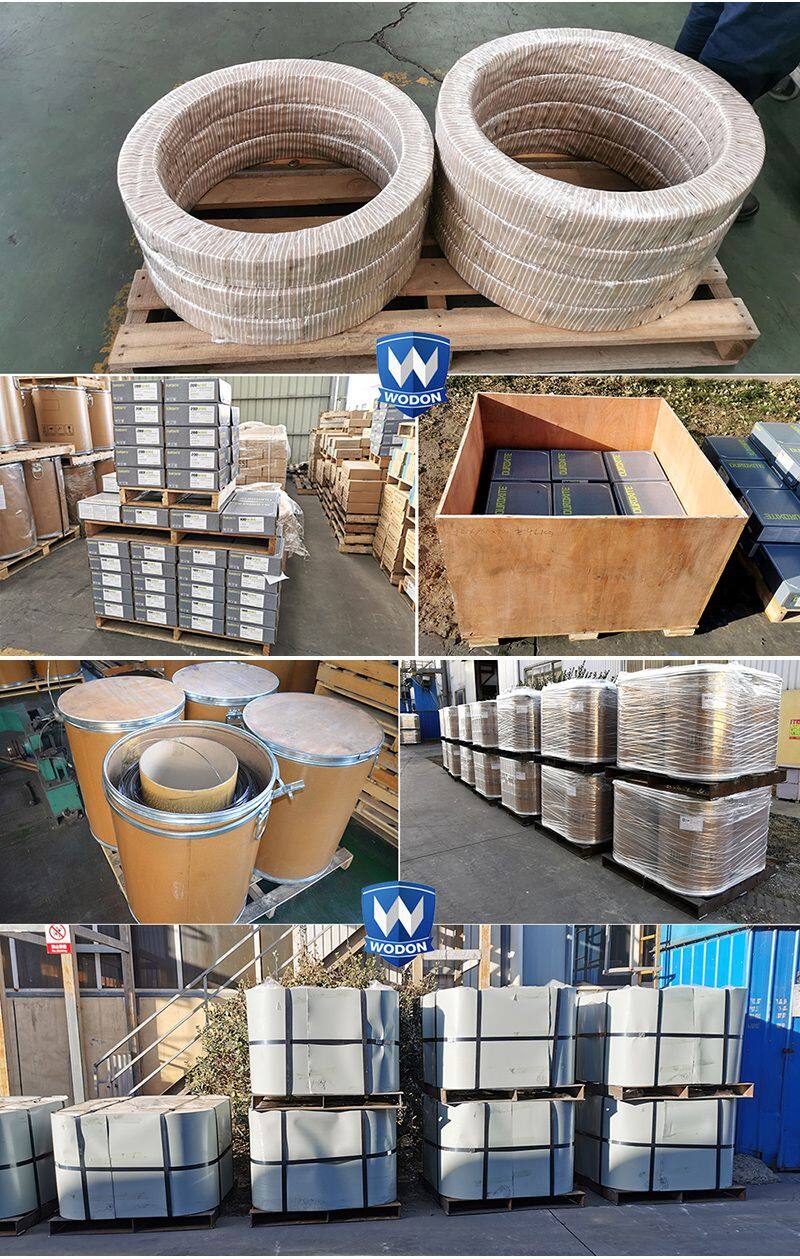

Packaging & Delivery
1. Welding wire 15kgs vacuum packaging 2. Welding wire 50kgs packaging 3. Welding wire 150-250kgs per drum
Why us?
Wodon produces more than 100 kinds of flux cored welding wires | |
Products |
Details |
Wear plate welding wire |
Single-layer hardfacing welding wire, double-layer hardfacing welding wire and multi-layer hardfacing wire |
Welding wire for repairing |
Coal grinding roller hardfacing welding wire; cement Vertical mill hardfacing welding wire; Squeeze roller hardfacing welding wire; Repairing welding wire for steel slag grinding roller; Repairing welding wire for star wheel and other repairing welding wire |
Gas shielding welding wire |
All kinds of gas shielding repairing welding wires (repair all kinds of wear resistant parts), heat resistant welding wire, grate bar and single tooth roller repairing welding wire, impact resistant welding wire and various welding wires containing special elements (which can be customized as required) |
Instruction |
1. Smooth wire feeding, stable arc, uniform diameter 2. Less spatter and smoke during welding, above 90% hardfacing efficiency 3. Every drum (spool) packed with one whole PC of welding wires, without any joint, no broken arc phenomena during the welding to improve production efficiency 4. Developing more than 100 kinds of flux cored wear resistant welding wire suited to metal wear resistant field which can satisfy the wear resistant requirements of many wear resistant parts under all kinds of working conditions 5. The base metal and the wear resistant overlay are metallurgical bonding; After welding, the wear resistant layer doesn't fall off because of uniform stress relief. We can provide qualification certificate, product data sheet, test report including chemical composition, hardness, etc of wear resistant overlay |
We developed our own flux cored welding wire with customized ingredient for all kinds of working conditions. Our welding wires has following advantages:
1. smooth wire feeding, stable arc , uniform diameter
2. less patter and smoke during welding, above 90% hardfacing efficiency
3. every drum packed with one whole PC of welding wires, without any joint, no broken arc phenomena during the welding to improve production efficiency
4. developing more than 100 kinds of flux cored wear resistant requirements of many wear resistant field which can satify the wear resistant requirements of many wear resistant parts under all kinds of working conditions.
5. the base metal and the wear resistant overlay are metallurgical bonding; after welding, the wear resistant layer doesn't fall off because of uniform stress relief.
FAQ
Q: Are you trading company or manufacturer ?
A: We are ISO certified flux cored welding wire and CCO wear plate factory.
Q: Are you able to produce customized chemical composition and dimension?
A: Yes, we could offer special welding wire and wear plate according customers' requirement.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge.
A: Payment
Q: Do you provide after-sales service ?A: Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
