Help CenterIndustrial Calculator RK3562J/RK3562 4*A53+1*M0 64-Bit With Python for Communication Management
Related Products
-
Bliiot ARMxy Series Allwinner Technology T507-H Industrial Computer Quad-core ARM Cortex-A53 CPU 1X/2Y Series IO Board OptionalNegotiableMOQ: 1 Piece -
Bliiot Embedded Computer Based on ARM Cortex-A53 and Cortex-M4 Core I.MX8M Mini is Suitable for Any General Industrial and IoT ApplicationsBL304NegotiableMOQ: 1 Piece
-
Bliiot Compact Embedded Computer ARMxy Series I.MX6ULL Processor 8G EMMC Flash ARM Cortex-A7 Architecture BL302NegotiableMOQ: 1 Piece
-
ARMxy Series Multi-function Industrial Controller T113-i Dual-core ARM Cortex-A7 +C906 RISC-V+HiFi4 DSP Heterogeneous Multi-core Processor BL330NegotiableMOQ: 1 Piece
-
ARMxy BL410 Industrial Controller RK3568J/RK3568B2 Processor Quad-core ARM Cortex-A55 8/16/32GB and 1/2/4GB LPDDR4X RAMNegotiableMOQ: 1 Piece

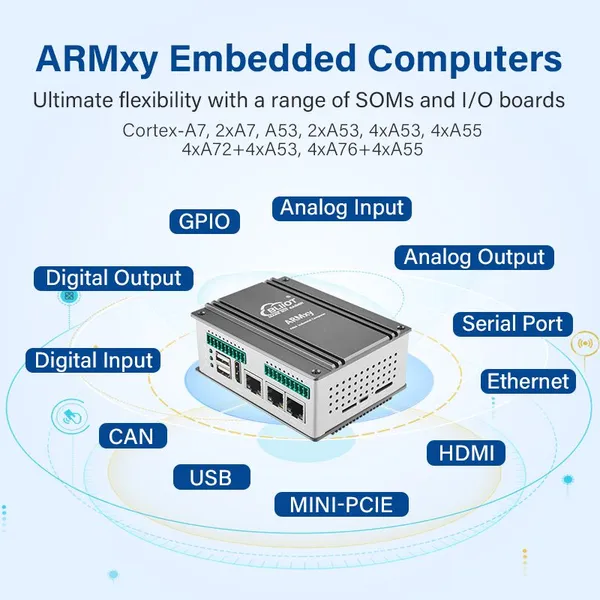

The ARMxy series ARM embedded computer BL370 series is an industrial-grade ARM controller with flexible I/O. It is designed with the RK3562/RK3562J processor, featuringa quad-core ARM Cortex-A53 and a single-core ARM Cortex-M0, with a clock speed of up to 1.8GHz/2.0GHz. The BL370 series comes with 8/16/32GB eMMC, and various RAM and ROM combinations of 1/2/4GB LPDDR4X. It supports a rich set of I/O interfaces and is equipped with a built-in 1TOPS NPU for deep learning. The BL370 series is widely used in industries such as industrial control, edge computing, AIoT, artificial intelligence, communication management, AGV, machine vision inspection, robotics, industrial IoT gateways, energy storage systems, automation control, and transportation rail systems.
The BL370 series ARM embedded computer offers a variety of interfaces, including 3x100MHz Ethernet ports, 2xUSB 2.0, 1xHDMI 2.0, 1 X-series I/O board, and 2 Y-series I/O boards.These interfaces can be used for communication, PWM output, pulse counting, and other data acquisition and control tasks. It also features a built-in Mini PCIe interface, supporting communication via Bluetooth, WiFi, 4G, and 5G modules.
The BL370 series ARM embedded computer supports various operating systems, including Linux-5.10.198, Linux-RT-5.10.198 kernel, Ubuntu 20.04, Debian 11 (bullseye) (planned), and Android 13 (planned). It also supports Docker containers, Node-RED, and Qt-5.15.2 for graphic interface development. Additionally, the device is compatible with the BLIoTLink industrial protocol conversion software for industrial data acquisition and conversion, enabling fast access to mainstream IoT cloud platforms and industrial SCADA configuration software. Remote access and maintenance can be performed through the BLRAT remote access tool, and Node-RED supports the rapid development of IoT applications.
The BL370 series ARM embedded computer has undergone professional electrical performance design and high/low-temperature testing validation. It can operate reliably and stably in harsh electromagnetic interference environments and a temperature range of -40 to 85°C. Thedevice is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
