Home > Products > roughness meter > Sandblasting and Shot Blasting Roughness Meter DB20-SRT231+

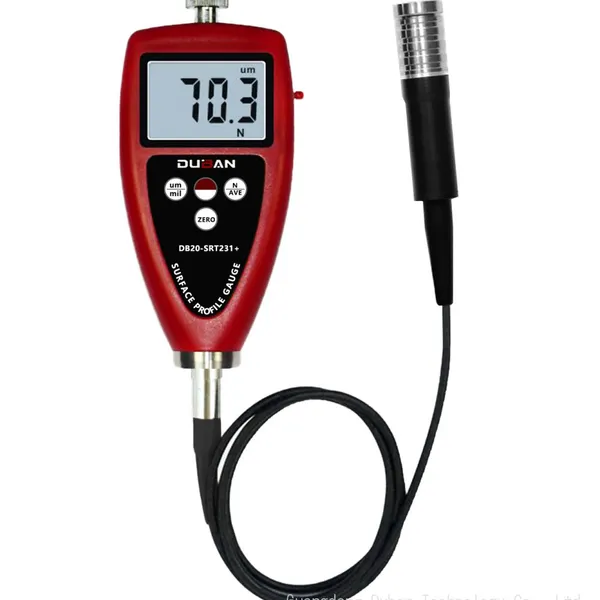

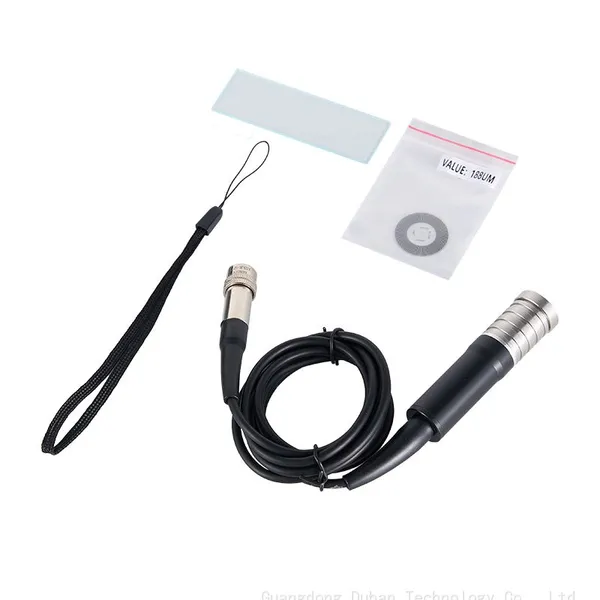

Sandblasting and Shot Blasting Roughness Meter DB20-SRT231+
- guangzhou
- 3 days
You May Like
Product Details
| Brand Name | DUBAN | Place of Origin | China | |
| Model Number | DB20-SRT231 |
Product Description
【Product Information】
Used in Shot blasting industry、The printing industry、Spraying Anti Corrosion Industry,According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.
【Product Feature】
(1)Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
(2)Conform ASTM D4417-B, IMO MSC 218 (82), the SANS 5 772, U.S. The Navy NSI009-32, the U.S. Navy the PPI 63101-000 of the test method.
(3)Public and imperial units converted, with the average computing power
(4)With Rs232 communication cable, and computer data communications.
(5)With a maximum value latch, undervoltage alarm indicator function
(6)Direct measurement of the surface peak - trough height.
(7)Have Bluetooth features to choose from.
【Technical Parameters】
| Display | LCD Display |
| Accuracy | ±5% or ±5 µm(whichever is the greater) |
resolution | 0.1μm(Measurements<100μm) |
| 1μm(Measurements<1000μm) | |
| Range | 0~750um |
| principle of measurement | Inductive type |
| working | Operating temperature |
no more than 85% | |
Power supply | 2x1.5vAAA Battery |
| Size | 176x63x25 mm |
Weight | 310g |
