BL168GM-SFP is a network managed industrial Ethernet switch that complies with FCC, CE and RoHS standards. Support 2 gigabit optical ports and 8 gigabit electrical ports; Support Ethernet layer 2 protocol required by industrial field to ensure the stability of communication network; This series of switches adopts low power consumption, fanless design, to ensure no noise interference, while supporting -40~75℃ working temperature and good EMC performance, to ensure stable work in harsh industrial environment, for factory automation, intelligent transportation, Video surveillance and other industrial applications to set up fast and stable network terminal access network to provide safe and reliable solutions.
v Support IGMP Snooping;
v Supports Port-based VLAN ports, IEEE 802.1Q VLAN, simple network planning;
v Support QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability;
v Support STP/RSTP/ERPS, SNMPv1/v2/v3 to ensure network security;
v Adopt RMON to improve the prediction ability of network monitoring machine;
v Support port mirroring function for online debugging;
v Support port speed limiting, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression;
v Security management: support ACL access control lists and 802.1X;
v Management function: support WEB, CLI, SNMP management mode;
v Monitoring and maintenance: support port mirroring, interface status monitoring, log management;
v Alarm function: Support power supply, port, abnormal state relay output.
Product Parameters
BL168GM-SFP specification introduction | ||
Power |
Power Input |
DC12-52V（Dual Power Redundant Backup） |
Access terminal |
Phoenix terminal |
|
Dual power redundancy |
Support |
|
Built-in overcurrent 4.0A protection |
Support |
|
Reverse connection protection |
Support |
|
LED Indicators |
Power indicator |
PWR |
Interface indicator |
Electric port,Fiber port（Link/ACT） |
|
RJ45 Ports |
RJ45 specification |
8xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive |
Standards |
IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab、IEEE802.1D-Spanning Tree Protocoll、IEEE802.1w-Rapid Spanning Tree Protocoll、IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Control |
|
Fiber Ports |
Fiber ports specification |
2x1000BaseFX ports（SFP） |
Ethernet Software Features |
Network security |
Support IEEE 802.1x, HTTP, RADIUS, MAC address binding |
Management and maintenance |
Support Console, Telnet and WEB management modes, and support SNMP v1/v2/v3 |
|
Redundancy technology |
Supports STP, RSTP, MSTP, and ERPS |
|
Multicast technology |
IGMP snooping、Support static multicast |
|
Exchange function |
Support port speed limit support port aggregation support port flow control. Support port VLAN, IEEE 802.1Q VLAN. Support broadcast storm suppression. |
|
Switch properties |
Transmission mode |
Store-and-forward |
Packet Buffer Memory |
1Mbit |
|
Switching delay |
5μs |
|
MAC Address Table |
16K |
|
Bandwidth |
45.6G |
|
Power dissipation |
5W |
|
Certification |
MTBF |
300,000 hours |
EMI |
FCC Part 15 Subpart B Class A，EN 55022 Class A |
|
EMC |
IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air) |
|
IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz) |
||
IEC(EN)61000-4-4(EFT)：Power Port : ±2kV CM//±1kV DM |
||
IEC(EN)61000-4-5(Surge)：Power Port : ±2kV CM//±1kV DM |
||
IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz) |
||
IEC(EN)61000-4-16：30V cont. 300V,1s |
||
IEC(EN )61000-4-8 |
||
Shock ：IEC 60068-2-27 |
||
Freefall ：IEC 60068-2-32 |
||
Vibration ：IEC 60068-2-6 |
||
Working Environment |
Working temperature |
-40～75 ℃ |
Storage temperature |
-40～80 ℃ |
|
Relative Humidity |
5%～95%( no condensation） |
|
Mechanical properties |
Shell |
Metal shell |
Dimensions |
175.6x 135x 45.5mm |
|
Protection type |
IP40 |
|
Weight |
0.82Kg |
|
Installation method |
DIN rail |
|
Heat dissipation mode |
Natural cooling, no fan |
|
Warranty |
Warranty period |
1 year |
Detailed Photos
Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of Industrial IoT, Industrial Edge Computing, Industrial Automation Data Acquisition and Communication devices. Beilai is the pinyin of barium-rhenium in Mandarin.
Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.
Beilai offer partners with a wide range of hardware including IIoT Gateways, Protocol Converters, Distributed I/O System, Ethernet I/O Modules, Remote I/O, ARM Industrial Computer, 4G IoT M2M RTU, 4G Edge Router, Remote Battery Measurement Module, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
Send Inquiry to This Supplier
You May Also Like
-
BL160 5 Port 10/100 Mbit Support Automatic Cross Identification Industrial Ethernet SwitchUS$ 41.27 - 44.44MOQ: 1 Piece
-
BL160G Switch for Industrial Automation Has Superior Robustness and Adapt to Hharsh EenvironmentsUS$ 41.27 - 44.44MOQ: 1 Piece
-
BL160P 5 RJ45 DC 12-52v Industrial POE Switch With Good Optical and Electrical CharacteristicsUS$ 41.27 - 44.44MOQ: 1 Piece
-
BL160GP Network POE Switch With DIN-Rail Mounting, Wide Temperature Operation, IP40 Rating and LED IndicatorsUS$ 41.27 - 44.44MOQ: 1 Piece
-
BL162P Supports 16 10Base-T/100Base-TX POE Ports Industrial Ethernet POE SwitchingUS$ 41.27 - 44.44MOQ: 1 Piece
-

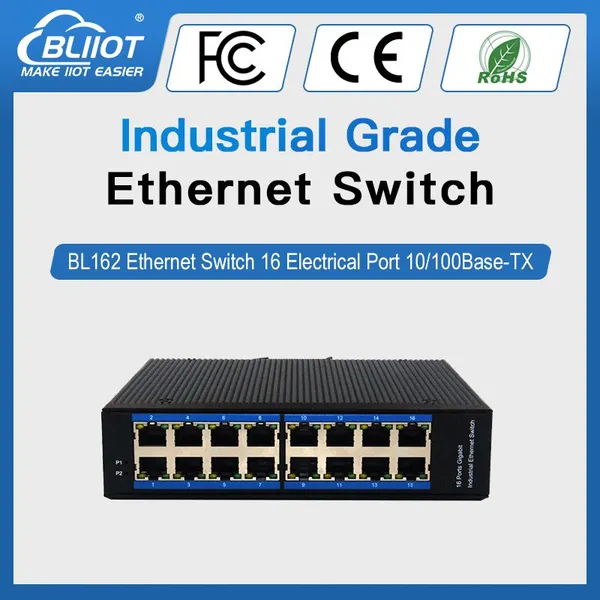

BL162 16-Port 10/100 Mbit Lightning Surge Protected Switch for Industrial AutomationUS$ 41.27 - 44.44MOQ: 1 Piece
-
