Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	BL161G

Product Description

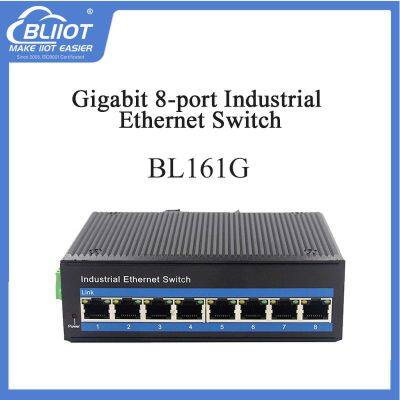

BL161G, an 8-channel gigabit Ethernet switch, supports 8 10Base-T/100Base-TX/1000Base-TX network ports. Products comply with FCC, CE, ROHS standards. BL161G industrial switch has a working temperature of -40ºC ~ 75ºC, with superior robustness to adapt to a variety of harsh environments, can also be very convenient to be placed in a compact space control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection housing and LED indicator light make the BL161G industrial switch a plug and play industrial device, providing a reliable and convenient solution for users to network their Ethernet devices.

The use of high-quality photoelectric integration module to provide good optical and electrical characteristics;

Ensure reliable data transmission and long working life;
Support full-duplex or half-duplex mode, with automatic negotiation ability;
Network port supports automatic cross identification;
With store and forward mechanism, support a variety of protocols;
Meet industrial operation standards, the average trouble-free work in more than 300,000 hours;
Working power supply: DC 12-52V provides reverse connection protection

BL161G specification introduction
Power	Power Input	DC12-52V（Dual Power Redundant Backup）
	Access terminal	Phoenix terminal
	Dual power redundancy	Support
	Built-in overcurrent 4.0A protection	Support
	Reverse connection protection	Support
LED Indicators	Power indicator	PWR
	Interface indicator	Electric port（Link）
RJ45 ports	RJ45 specification	8xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive
	Standards	IEEE802.310BASE-TIEEE802.3i； 10Base-T；IEEE802.3u；100Base-TX/FX； IEEE802.3ab1000Base-T；IEEE802.3z1000Base-X；IEEE802.3x； IEEE802.3af； IEEE802.3at
Switch properties	Transmission mode	Store-and-forward
	Packet Buffer Memory	2Mbit
	Switching delay	<10μs
	MAC Address Table	8K
	Bandwidth	20G
	Power dissipation	<5W
Certification	MTBF	300,000 hours
	EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
	EMC	IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air)
		IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz)
		IEC(EN)61000-4-4(EFT)：Power Port : ±2kV CM//±1kV DM
		IEC(EN)61000-4-5(Surge)：Power Port : ±2kV CM//±1kV DM
		IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz)
		IEC(EN)61000-4-16：30V cont. 300V,1s
		IEC(EN )61000-4-8
		Shock ：IEC 60068-2-27
		Freefall ：IEC 60068-2-32
		Vibration ：IEC 60068-2-6
Working Environment	Working temperature	-40～75 ℃
	Storage temperature	-40～80 ℃
	Relative Humidity	5%～95%( no condensation）
Mechanical properties	Shell	Metal shell
	Dimensions	143.7 x 103x 44.2mm
	Protection type	IP40
	Weight	0.64Kg
	Installation method	DIN rail
	Heat dissipation mode	Natural cooling, no fan
Warranty	Warranty period	1 year
