BL161GP, an 8-channel gigabit Ethernet POE switch, supports 8 10Base-T/100Base-TX/1000Base-TX POE ports. Products comply with FCC, CE, ROHS standards. BL161GP industrial switch has a working temperature of -40ºC ~ 75ºC, with superior robustness to adapt to a variety of harsh environments, can also be very convenient to be placed in a compact space control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection housing and LED indicator light make the BL161GP industrial switch a plug and play industrial device, providing a reliable and convenient solution for users to network their Ethernet devices.
The use of high-quality photoelectric integration module to provide good optical and electrical characteristics;
Ensure reliable data transmission and long working life;
Support full-duplex or half-duplex mode, with automatic negotiation ability;
Network port supports automatic cross identification;
With store and forward mechanism, support a variety of protocols;
Meet industrial operation standards, the average trouble-free work in more than 300,000 hours;
Working power supply: DC 12-52V provides reverse connection protection;
Product Parameters
BL161GP specification introduction | ||
Power | Power Input | DC48-57V（Dual Power Redundant Backup） |
Access terminal | Phoenix terminal | |
Dual power redundancy | Support | |
Built-in overcurrent 4.0A protection | Support | |
Reverse connection protection | Support | |
LED Indicators | Power indicator | PWR |
Interface indicator | Electric port（Link） | |
RJ45 ports | RJ45 specification | 8xRJ45,100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive |
Standards | IEEE802.310BASE-TIEEE802.3i； 10Base-T；IEEE802.3u；100Base-TX/FX； IEEE802.3ab1000Base-T；IEEE802.3z1000Base-X；IEEE802.3x； IEEE802.3af； IEEE802.3at | |
POE Standard | POE Standard | IEEE802.3af/ IEEE802.3at |
POE ports | 1-8 electrical ports support POE | |
Output power | Maximum power 15.4W (IEEE 802.3af) Maximum power 30W (IEEE 802.3at) The POE port automatically recognizes af/at | |
Switch properties | Transmission mode | Store-and-forward |
Packet Buffer Memory | 2Mbit | |
Switching delay | <10μs | |
MAC Address Table | 8K | |
Bandwidth | 20G | |
Power dissipation | <5W | |
Certification | MTBF | 300,000 hours |
EMI | FCC Part 15 Subpart B Class A，EN 55022 Class A | |
EMC | IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air) | |
IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz) | ||
IEC(EN)61000-4-4(EFT)：Power Port : ±2kV CM//±1kV DM | ||
IEC(EN)61000-4-5(Surge)：Power Port : ±2kV CM//±1kV DM | ||
IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz) | ||
IEC(EN)61000-4-16：30V cont. 300V,1s | ||
IEC(EN )61000-4-8 | ||
Shock ：IEC 60068-2-27 | ||
Freefall ：IEC 60068-2-32 | ||
Vibration ：IEC 60068-2-6 | ||
Working Environment | Working temperature | -40～75 ℃ |
Storage temperature | -40～80 ℃ | |
Relative Humidity | 5%～95%( no condensation） | |
Mechanical properties | Shell | Metal shell |
Dimensions | 143.7 x 103x 44.2mm | |
Protection type | IP40 | |
Weight | 0.64Kg | |
Installation method | DIN rail | |
Heat dissipation mode | Natural cooling, no fan | |
Warranty | Warranty period | 1 year |

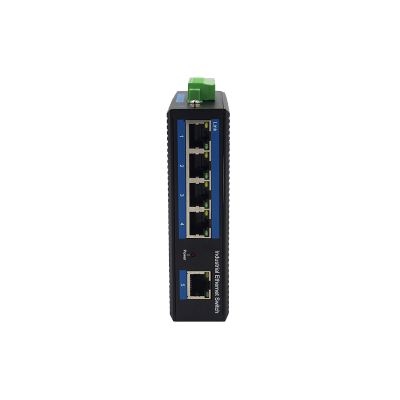

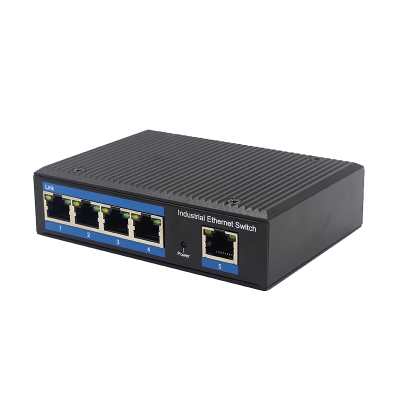

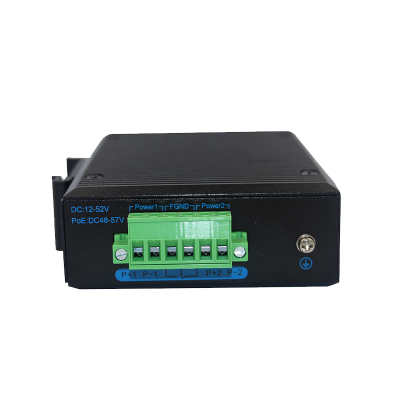

Detailed Photos
