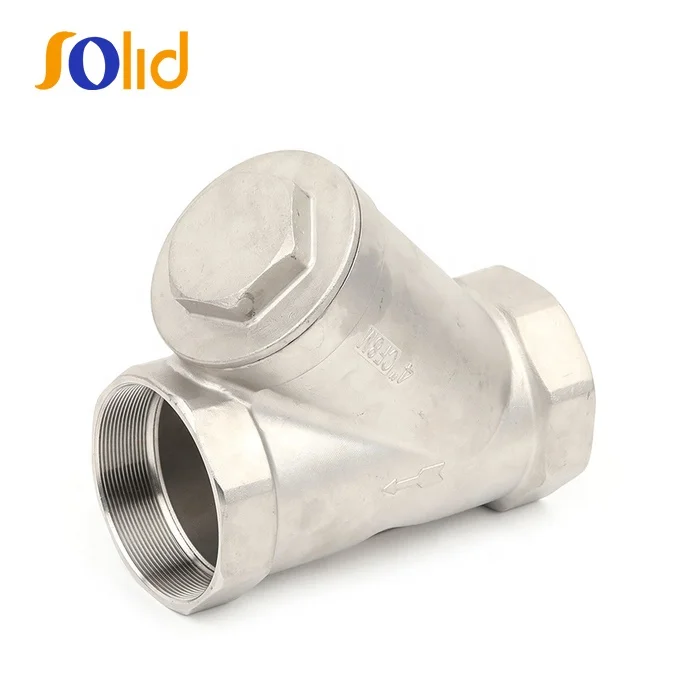

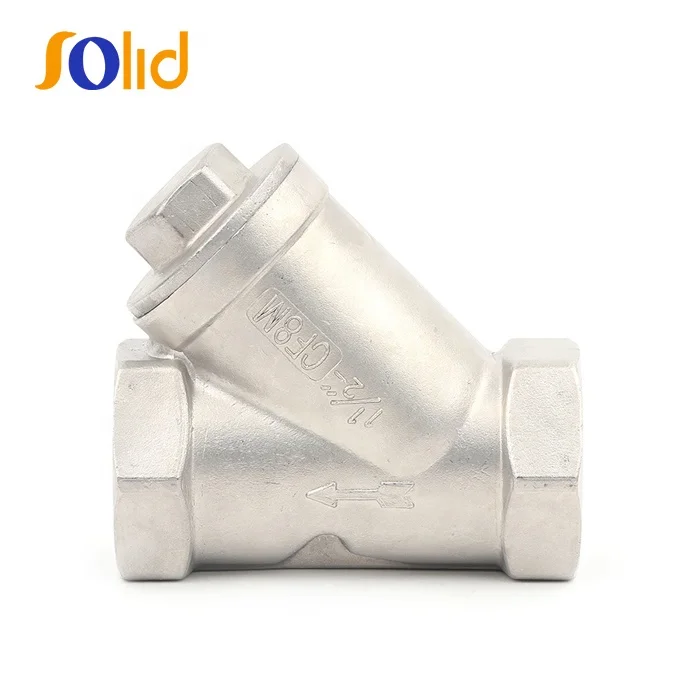

316 Stainless Steel BSP Threaded End Y Type Strainer for Water
EUR 10.00 - 100.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
solid
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days
Related Products
-
Ductile Iron Cast Iron Straight Pipeline Filter Flanged Basket T Type StrainerUS$ 10.00 - 100.00MOQ: 50 Pieces -
BSPP Threaded Female Ends PN16 Brass Filter Valve Y Type StrainerNegotiableMOQ: 50 Pieces
-
Factory Prices 1/2''-4'' Filter Valve Brass Y Type Strainer With Brass BodyNegotiableMOQ: 50 Pieces
-
800WOG Stainless Steel /SS 316 NPT/BSP CF8 Screw Ends Thread Y Type Strainer/FilterUS$ 10.00 - 100.00MOQ: 50 Pieces
-
800WOG Stainless Steel /SS 316 NPT/BSP CF8 Screw Ends Thread Y Type Strainer/FilterUS$ 10.00 - 100.00MOQ: 50 Pieces
Brand Name
solid
Place of Origin
China
Product Description
Application:
Applicable Temperature: ≤425 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: PN10-PN40, 150LB-600LB
Size Range: 1/2" ~ 4"(DN15-DN100)

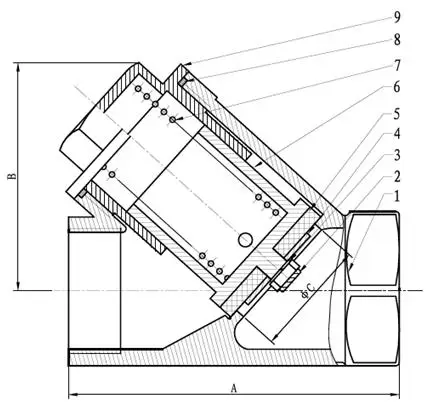

| Number | Name | Material |
|---|---|---|
| 1 | Body | ASTM A351 CF8M |
| 2 | Nut | SS304 |
| 3 | Spring Washer | SS304 |
| 4 | Washer | SS304 |
| 5 | Seat Ring | PTFE |
| 6 | Plug | SS316 |
| 7 | Spring | SS304 |
| 8 | Gasket Packing | PTFE |
| 9 | Cap | ASTM A351 CF8M |
Detailed Images
