DIN BS Standard Cast Steel and Cast Iron Gate Butterfly Check Valve Ductile Iron Valves
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
DIN 3352 F4 4 Inch Ductile Cast Iron Resilient Seat or Brass Seat Gate Valve Flanged Gate Valve
-
High Quality Ductile Iron Body PN16 DN50-DN1600 Slurry Knife Sluice Gate Valve
-
AWWA C509, C515 Ductile Iron Non- Rising Stem Resilient Seated Sluice Gate Valve
-
Ductile Iron Resilient Seated NRS Plain End Gate Valve For PVC,PE,Ductile Iron Pipe
-
DIN/BS/AWWA Double Flange Ductile Iron Sluice Valve With Resilient Seat
-
DI Ductile Iron Groove Joint Ends Rising Stem Resilient Seated Gate Valve
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Standard | DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25 |
Type | Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem |
Material | Body: Ductile iron GGG40/50 or Cast IronGG25 Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated Stem: stainless steel 2Cr13 , SS304,SS316 Bolt and Nuts : Carbon Steel with zinc plated or SS304,316 |
Coating | Internal and external with fusion bonded epoxy coating min250μm |

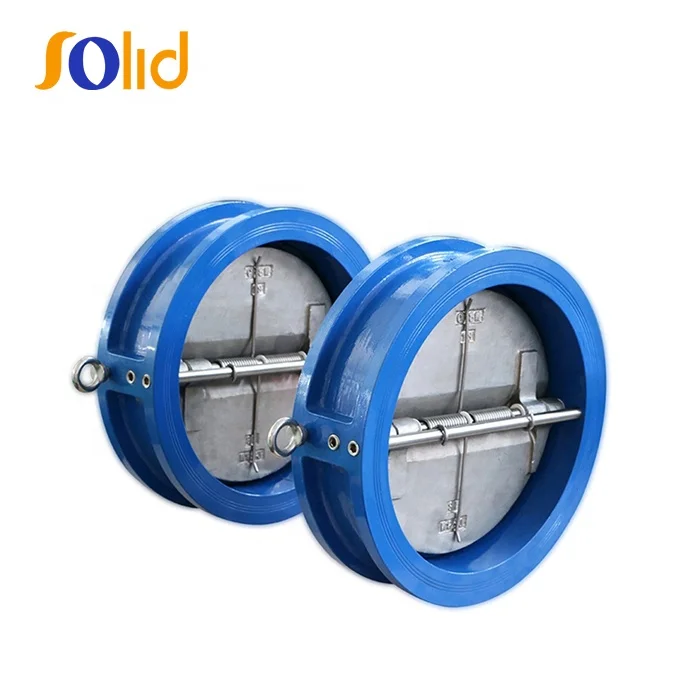

Check Valve
Standard | BS5153,DIN3202-F6,DIN3201-F1, AWWA C508 |
Type | Swing Type , Lift Type, Dual Plate type, Ball Check type |
Material | Ductile iron GGG40/50 or Cast IronGG25 Disc seat ring :Brass/Bronze/Stainless steel/ EPDM Body seat ring : Brass/Bronze/Stainless steel Bolt and Nuts : Carbon Steel with zinc plated or SS304,316 |
Coating | Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting |
Globe Valve
Standard | BS5152, DIN3202-F1, MSS-SP-85 Flange drilling is according to BS4504, DIN2501, and ANSI B16.1 PN10, PN16, PN25 |
Type | Flange End |
Material | Ductile iron GGG40/50 or cast iron Stem: Stainless Steel Disc seat ring :Brass/Bronze/Stainless steel/Rubber Body seat ring : Brass/Bronze/Stainless steel/Rubber |
Coating | Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting |
Butterfly Valve
Standard | EN593/ ISO 5752 /BS5155/AWWA C504 |
Type | Double Flange Eccentric, Double Flange Concentric, Water type , Lug type , U type , Grooved type |
Material | Body : DI/CI /Carbon Steel/Stainless Steel Disc: DI/Stainless steel 304/316,AL-Bronze Shaft :Stainless steel410/416/420 Seat :EPDM/NBR |
Coating | Internal and external with fusion bonded epoxy coating min250μm |
Y-strainer
Standard | BS2080,DIN3201-F1, MSS-SP Flange drilling is according to BS4504, DIN2501, and ANSI B16.1 PN10, PN16 |
Type | Flange End |
Material | Ductile iron GGG40/50 /Cast Iron GG25/ Carbon Steel Bonnet :Cast iron/Ductile iron Screen : Stainless steel 304 |
Coating | Internal and external with fusion bonded epoxy coating min250μm or Liquid epoxy painting |

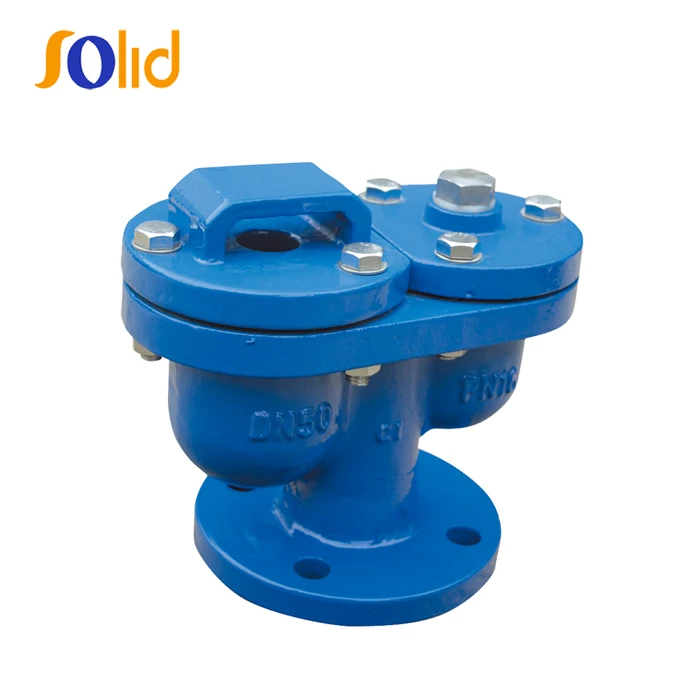

Air valve
Standard | EN1074-4, BS , ANSI |
Type | Single orifice type, double orifice type, triple function |
Material | Ductile iron GGG40/50 /Cast Iron GG25/Carbon Steel, float ball: SS304, ABS or NBR |
Coating | Internal and external with fusion bonded epoxy coating. min250μm or liquid epoxy painting |
We can supply gate valve,butterfly valve,check valve,air valve,globe valve and other valves.
