ASTM A216 WCB Stainless Steel Dual Plate Inline Wafer Single Disc Check Valve
US$ 10.00 - 100.00
/ Piece
50 Pieces(Min. Order)
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
BS 5352 Hot Sale Class 800 Carbon Steel A105 Forged Steel Threaded NPT End Swing Check Valve
-
PN10/PN16 Stainless Steel Single One Way Wafer Type Swing Disc Check Valve
-
API 598 600#, Wafer, CF8 WCB Stainless Steel Wafer End Dual Plate Check Valve
-
A216 WCB Class 300 RF Cast Steel Flange Swing Check Valve
-
Stainless Steel 304 CF8M BSP Thread Vertical Spring Loaded Non Return Check Valve 1000wog
-
Stainless Steel/WCB/CF8/ CF8M Single Disc Wafer Type Flap Check Valve
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description

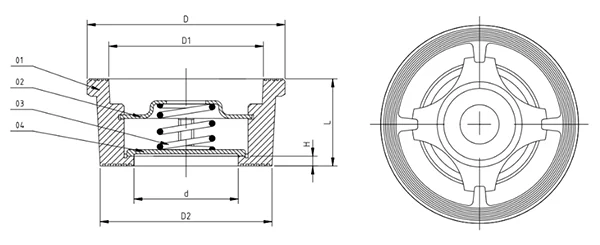

| SDC | Outer Diameter | DIN | ANSI | AU | |||||
|---|---|---|---|---|---|---|---|---|---|
| PN10 | PN16 | PN25 | PN40 | 150Lb | 300Lb | Table D | Table E | ||
| DN15 | 39 | 51 | 51 | 51 | 51 | 45.5 | 51.5 | 53 | 53 |
| DN20 | 46 | 61 | 61 | 61 | 61 | 55 | 63.5 | 59 | 59 |
| DN25 | 54 | 71 | 71 | 71 | 71 | 64.5 | 70 | 69 | 69 |
| DN32 | 70 | 82 | 82 | 82 | 82 | 74 | 79.5 | 73 | 73 |
| DN40 | 83 | 92 | 92 | 92 | 92 | 83.5 | 92.5 | 84 | 84 |
| DN50 | 96 | 107 | 107 | 107 | 107 | 101.5 | 108 | 96 | 96 |
| DN65 | 115 | 127 | 127 | 127 | 127 | 120.5 | 127 | 109 | 109 |
| DN80 | 135 | 142 | 142 | 142 | 142 | 133.5* | 146.5 | 128 | 128 |
| DN100 | 153 | 162 | 162 | 168 | 168 | 171.5 | 178 | 160 | 160 |
| DN125 | 187 | 192 | 192 | 194 | 194 | 194 | 213 | 192 | 192 |
| DN150 | 217 | 218 | 218 | 224 | 224 | 219.5 | 248 | 217 | 213 |
| DN200 | 274 | 273 | 273 | 284 | 290 | 276.5 | 305 | 274 | 270 |
| Item | Part | Material | QTY |
|---|---|---|---|
| 1 | Body | CF8M | 1 |
| 2 | Spring Cover | SS316 | 1 |
| 3 | Spring | SS316 | 1 |
| 4 | Disc | CF8M | 1 |
Technical Specifications
-Design: ASME 16.34/API 594/API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5, ASME B16.47
-BW End: ASME B16.25
-Test: API 598/ API 6D/ BS 6755
-Special: NACE MR-01-75
Design Features
-Dual plate or single plate.
-Spring loaded disc.
-Resilient or metal seated.
- Retainer or Retainer Less Design
- Round, Full Lug or Double Flange
-Light-weight & compact design.
-Optional plug disc.

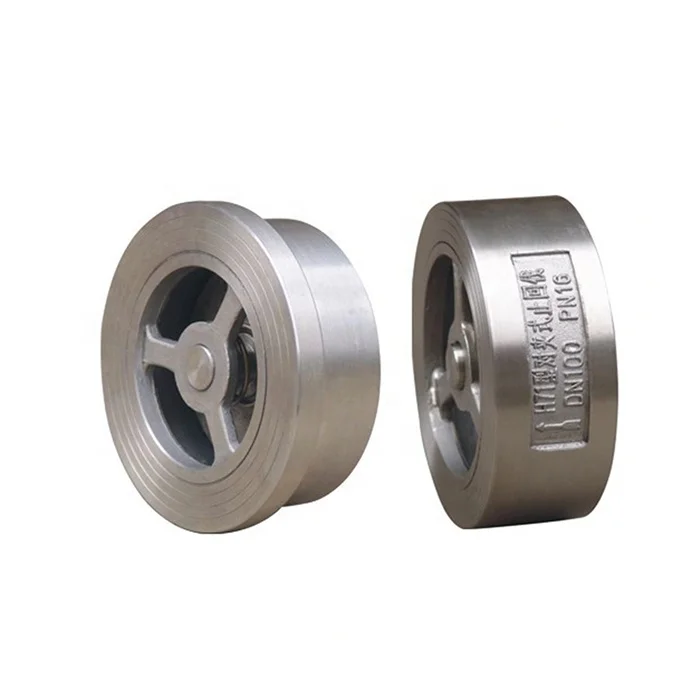

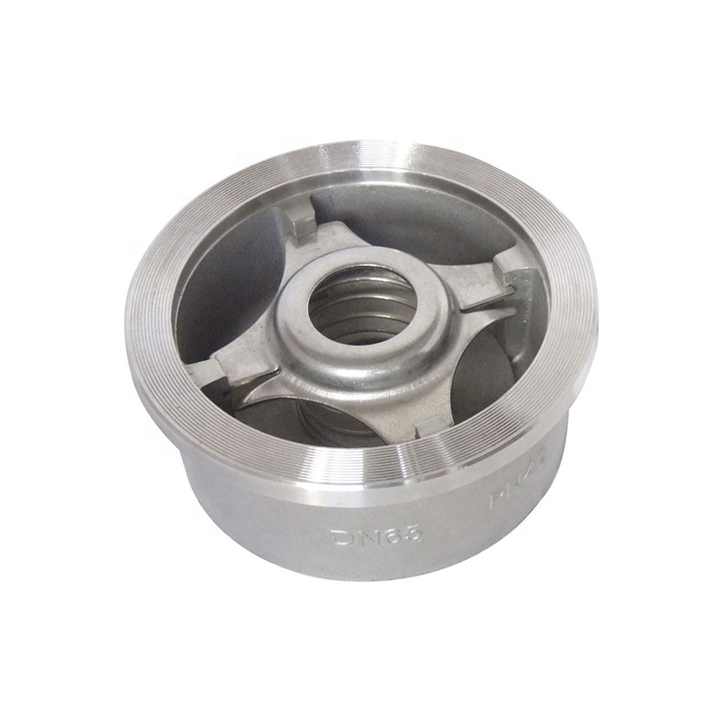

Detailed Images
