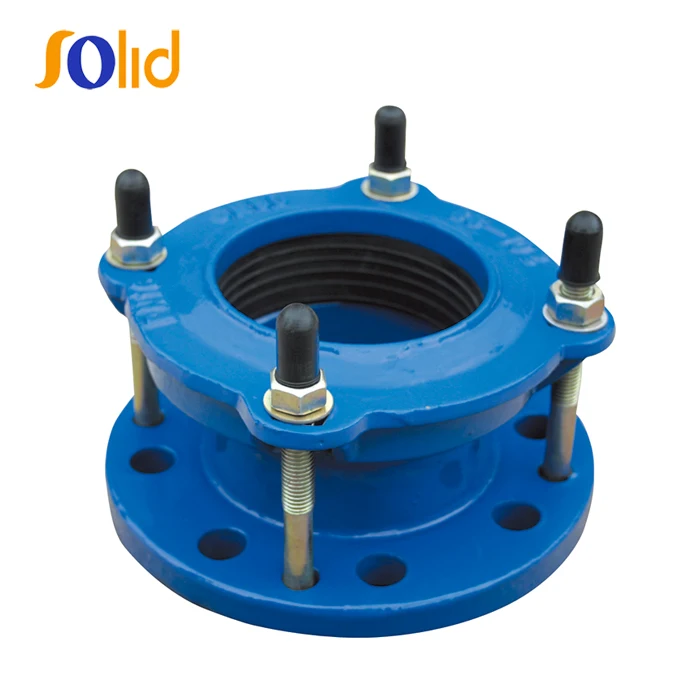

Ductile Iron DCI Universal Flange Adaptor Joint and Coupling

Flanged Adaptors are designed for pipelines , As a wide tolerance system
it will fit most standard pipe materials and therefore dramatically reducesthe number of dedicated Flanged Adaptors which need to be stocked for maintenance purposes

It is suitable for steel , GRP, PVC, PE, Ductile Iron , Cast Ironand Asbestors Cement

When connecting PE pipes , It is important that pipe inserts are fitted to the PE pipes .

1) All the flanged adaptors are assembled by " T " bolts.

2) Bolts ,Nuts and Washers are in carbon steel Grade 4.8 , 8.8 with zinc plated ,
dacromet coating or according to customer's request.

3) Body material is Ductile iron GGG500-7 .

4) Fusion bonded epoxy powder coating in blue, black or red or according to customer's
request .

5) Gaskets material : E.P.D.M. , NBR or SBR .

6) Accommodate BS, DIN, ANSI flange drillings .
