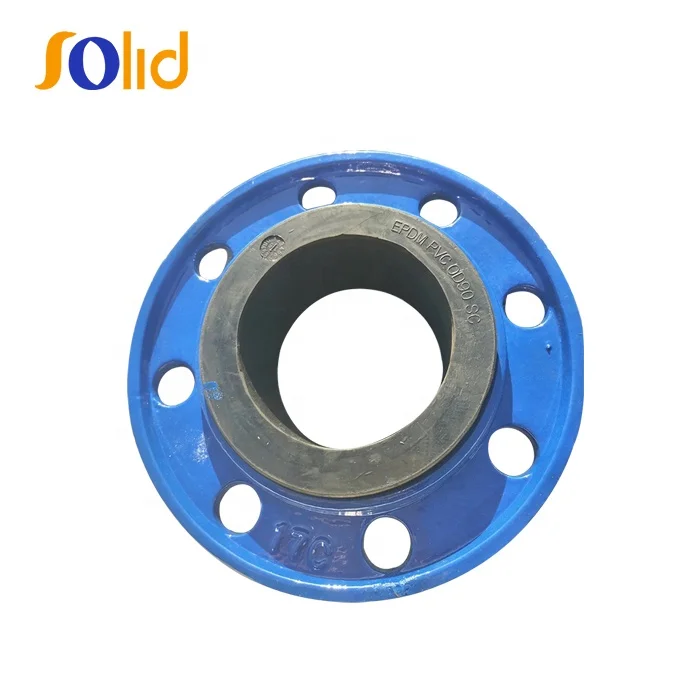

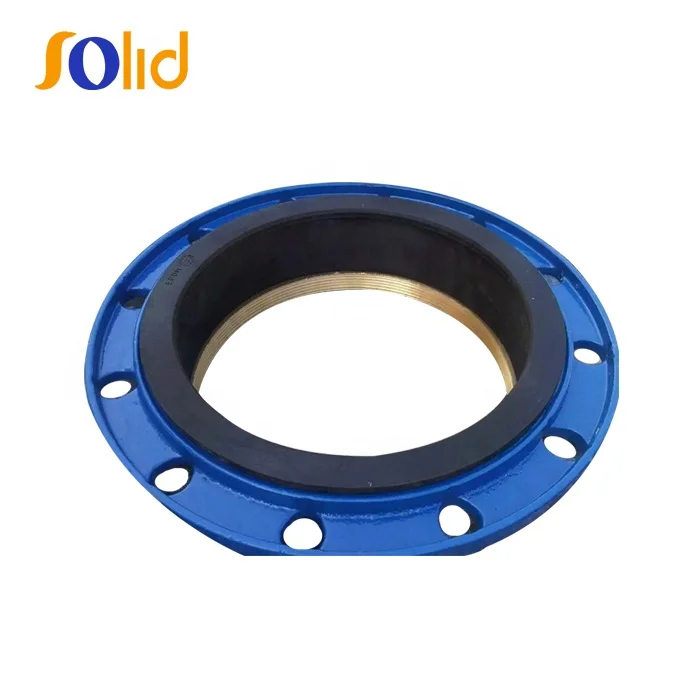

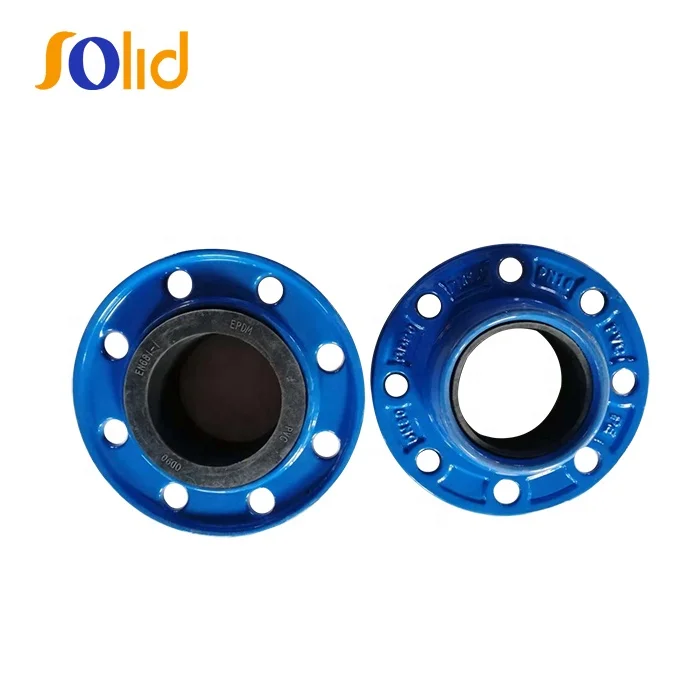

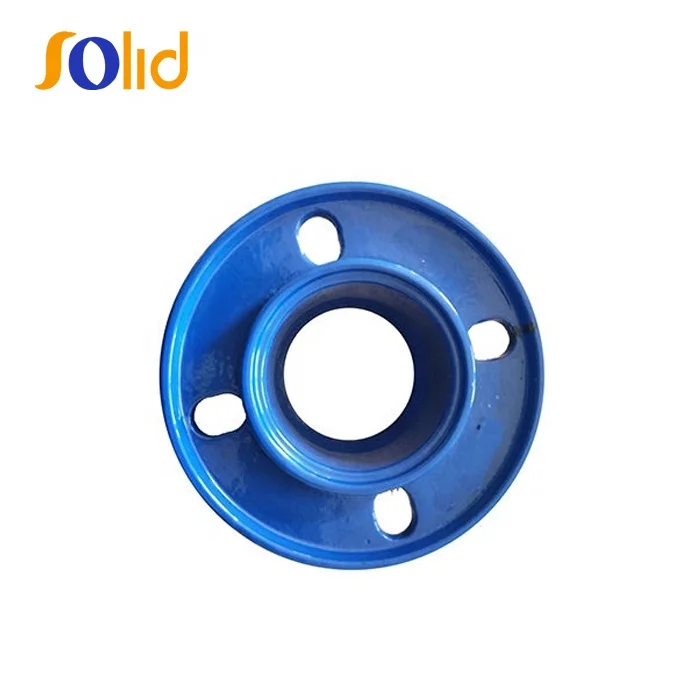

PVC/PE/DI Pipe OD 50mm Ductile Iron Quick Flange Adaptor with PN10/16
US$ 6.50 - 35.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
SOLID Ductile Iron Wide Range Self-Locking Restrained Coupling
-
China Factory Epoxy Coating Ductile Iron Wide Range Self-Locking Universal Coupling
-
Ductile Iron GGG50 Wide Range Self-Locking Flexible Universal Coupling
-
Ductile Iron GGG50 Self-Locking Universal Coupling
-
Hot Sale PN10 PN16 Ductile Iron GGG50 Reducer Connection Possible Self-Locking Universal Coupling
-
Ductile Iron Restraint Wide Range Universal Flexible Coupling with Brass Grip
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Material Specification:
| PVC O Ring Flange Adaptor | |||||
| NO | Name | Material | Surface | ||
| 1 | Flange | GGG50 | Internal and External for FBE,Ral5017,Thickness:250um | ||
| 2 | O Ring | EPDM | Black,the edage is cone-shape | ||
| PE O Ring Flange Adaptor | |||||
| NO | Name | Material | Surface | ||
| 1 | Flange | GGG50 | Internal and External for FBE,Ral5017,Thickness:250um | ||
| 2 | O Ring | EPDM | Black,the edage is cone-shape | ||
| 3 | Sheathing | Copper | Brass | ||
| 1.Connect Method:PN10/16 Flange connect,flange drill to EN1092 standard. | |||||
| 2.Pressure Test:100% test hydro,1.5 shell test,1.1 sealing test. | |||||
Features:
Ductile Iron GGG50 Material with FBE coated.
PN10,PN16 working pressure.
EPDM or EPDM+Brass Seal Ring
Flanges drilling ISO PN 10/16
Angular deflection +/-6°
Flange adapters are used to join a flanged part to the spigot end of a pipe or tube. They are used to connect networks composed of different materials. They can also be specially designed for one material. In this case, they are offered in anchoring or non-anchoring versions. With the self-anchoring (locking) products, concrete anchor blocks are unnecessary.
1.Quick Flange Adaptor are designed to connect flange end and PVC/PE pipe, with brass ring is for PE pipe, the brass ring will fasten the pipe to avoid to be pulled out, without brass ring is for PVC pipe.
2.The feature is installed quickly and easily.
Application:
1.Drinking Water networks
2.Fire protection networks
3.Irrigation networks
4.Waste Water networks
Detailed Images
