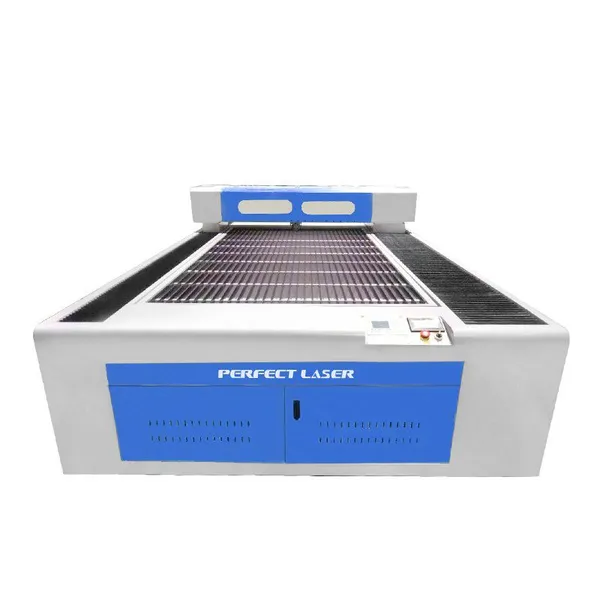

Help Center300W 1300X2500mm Mixed Co2 Laser Cutting Machine For Metal, Stainless Steel,Iron, Acrylic, Wood, Plastic
Related Products
-
1500w Fiber Laser Metal Cutting Machine for Aluminum Stainless Steel Iron Sheet PlateUS$ 10990 - 11590MOQ: 1 Unit -
6000w 320nm Dia 12mts Length Metal Tube Pipe Fiber Laser CutterUS$ 133100 - 133600MOQ: 1 Unit
-
1000w 3000x1500mm Metal Sheet and 6mts Metal Pipe Tube Fiber Laser CutterUS$ 34500 - 34900MOQ: 1 Unit
-
1500w Small 600x600mm Metal Fiber Laser Stainless Steel CutterUS$ 28700 - 29200MOQ: 1 Unit
-
1500w Rotary High Precision Metal Hardware Fiber Laser Cutting MachineUS$ 20500 - 20900MOQ: 1 Unit
Features:
1) Mix Cutting: The metal plate cutter supports both metal and non-metal Cutting, which can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.
2) The metal plate cutter adopts 150w / 180w / 260w / 300w Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4) This metal plate cutter adopts dynamic auto-focusing metal sheet laser cutting head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5) Equipped with LCD Touch Screen+ USB port+ DSP Offline Control, which make the metal plate cutter can not only work without computer, but also connect to U disk, USB communication.
6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7) This steel sheet cutter use imported high precision linear guide rail and professional optical system, dust-proof and lubricate, which improve the cutting quality and prolong machine lifetime.
8) Professional Strip work table: meets the needs of diversified laser procession;
9) Water Cooling System with Alarm Protection, adopt CW-5000 or CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10) Equipped with highly-qualified Consumables,USA original Focus Lens and reflect mirror, steel sheet cutter makes high efficiency and steady.
11) Red Light Pointer realizes the exact position without laser.
12) Matched Professional cutting software is particularly designed and written for both metal and non-metallic cutting, with high compatibility, support any computer operating system.
13)The steel sheet cutter can also called mdf laser cut, acrylic cutter.
Technical Data:
Product Name |
CNC Laser Cutter |
|
Model |
PEDK-130250M |
|
Working Area |
1300x2500mm |
|
Laser Power |
300w |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6um |
|
Transmission Method |
Belt Transmission |
|
Driving System |
High-precision 3-phase “LEADSHINE” Step Motor and Driving System |
|
Working Table |
Thicken Strip Working Table |
|
Cooling Type |
Water Cooling S&A CW-6000 |
|
Laser Output Control |
(0-100% Set by Software ) |
|
Smallest Character Engraving |
Chinese: 2.0mmx2.0mm, English Letter: 1.0mmx1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Positioning Accuracy |
±0.02mm/m |
|
Positioning Speed |
20m/min |
|
Max. Cutting Thickness |
40mm |
|
Max. Cutting Speed |
20m/min |
|
Controlling Software |
Off-computer Controlling System |
|
Graphic Format Supported |
BMP, PLT, DST, DXF, and AI, etc |
|
Compatible Software |
CorelDraw, Photoshop, AutoCAD, All type of AutoCAD software |
|
Auxiliary Equipment |
Exhaust Fan and Air Exhaust Pipe |
|
Working Voltage |
AC110-220V ±10%/10A,50-60HZ |
|
Power |
||
Packing |
Standard Plywood Case Comply with Export Standard |
|
Control Software |
Perfect Laser Professional Mixed Laser Cutting Machine Software |
|
Guarantee |
12 month guarantee for whole machine 10 month guarantee for laser tube |
|
Training |
VCD Training Video for Easy Learning Engineer Overseas Installation & Training is Available |
|
