Home > Products > saddle > DN50-DN450 Ductile Iron Universal Joint Pipe FIttings Tapping Saddles for PVC Pipe

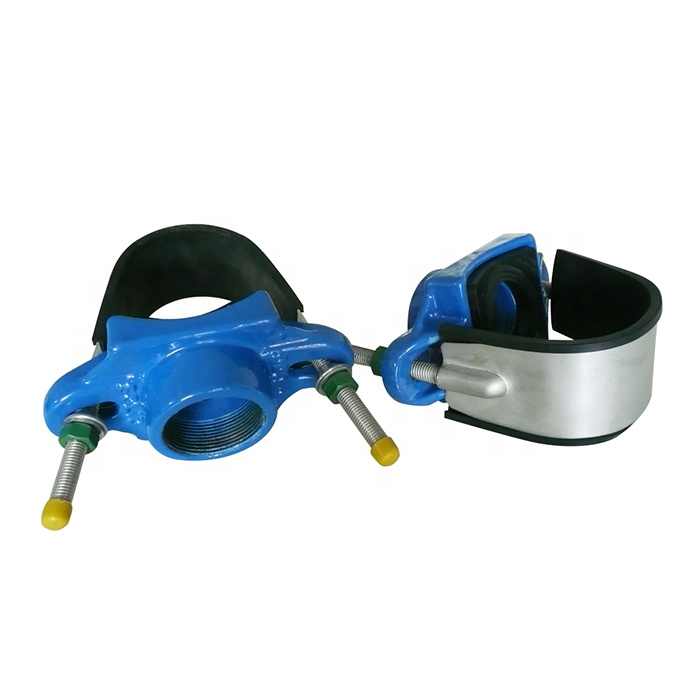

DN50-DN450 Ductile Iron Universal Joint Pipe FIttings Tapping Saddles for PVC Pipe
US$ 12.00 - 100.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
High Quality Ductile Iron Pipe Clamp/Cast Iron Pipe Saddle Clamp For PVC Pipe
-
Service Saddle pipe saddle joint tapping saddle for PVC Pipe
-
Ductile Iron Tapping Saddles for PVC Pipes
-
Ductile iron universal tapping saddle with thread outlet
-
Ductile Iron DI tapping saddle Clamp for DCI Ductile Cast Iron Pipe
-
Factory PVC water pipe ductile iron di saddle clamps for steel pipe
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
| Material Specification | |
| Part Name | Material |
| Body | Ductile Iron (with FBE coated) |
| Band | SS 304 |
| Gasket | NBR |
| Bolt | SS 304 with 65mm lenth thread |
| Nut | Galvanzied steel nuts |
| Dimensions | ||||
| Size | Normal | Range | Bolts | |
| DN | Min | Max | Dia & Length | |
| DN50 | 340 x 1, 1 1/4 | 55 | 75 | M12 x 130 |
| DN65 | 340 x 1, 1 1/4 | 70 | 90 | M12 x 130 |
| DN80 | 340 x 1, 1 1/4 | 75 | 98 | M12 x 130 |
| DN80 | 340 x 1, 1 1/4 | 87 | 107 | M12 x 130 |
| DN100 | 340 x 1, 1 1/4 | 97 | 118 | M12 x 130 |
| DN100 | 340 x 1, 1 1/4 | 105 | 125 | M12 x 130 |
| DN100 | 340 x 1, 1 1/4 | 110 | 133 | M12 x 130 |
| DN125 | 340 x 1, 1 1/4 | 130 | 155 | M12 x 130 |
| DN150 | 350 x 1 1/2, 2 | 158 | 177 | M12 x 130 |
| DN150 | 350 x 1 1/2, 2 | 158 | 190 | M12 x 130 |
| DN150 | 350 x 1 1/2, 2 | 161 | 186 | M16 x 120 |
| DN175 | 350 x 1 1/2, 2 | 185 | 210 | M16 x 120 |
| DN200 | 350 x 1 1/2, 2 | 190 | 230 | M16 x 120 |
| DN200 | 350 x 1 1/2, 2 | 200 | 227 | M16 x 120 |
| DN200 | 350 x 1 1/2, 2 | 215 | 240 | M16 x 120 |
| DN200 | 350 x 1 1/2, 2 | 230 | 255 | M16 x 120 |
| DN250 | 350 x 1 1/2, 2 | 260 | 285 | M16 x 120 |
| DN250 | 350 x 1 1/2, 2 | 285 | 310 | M16 x 120 |
| DN300 | 350 x 1 1/2, 2 | 315 | 340 | M16 x 120 |
| DN300 | 350 x 1 1/2, 2 | 338 | 365 | M16 x 120 |
| DN350 | 350 x 1 1/2, 2 | 344 | 372 | M16 x 120 |
| DN350 | 350 x 1 1/2, 2 | 368 | 384 | M16 x 120 |
| DN400 | 350 x 1 1/2, 2 | 394 | 420 | M16 x 120 |
| DN400 | 350 x 1 1/2, 2 | 404 | 430 | M16 x 120 |
| DN400 | 350 x 1 1/2, 2 | 418 | 443 | M16 x 120 |
| DN450 | 350 x 1 1/2, 2 | 474 | 493 | M16 x 120 |
Detailed Images
