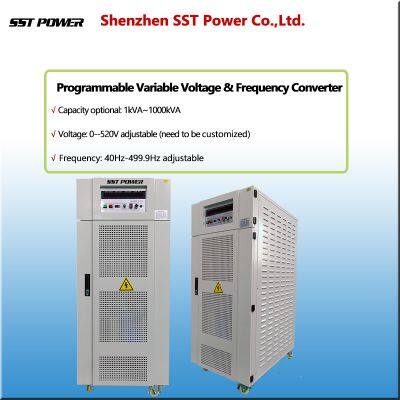

Three Phase 50Hz to 60Hz and 60Hz to 50Hz AC Power Source 40Hz to 400Hz Frequency Converter

FOB Price

US$ 250 - 2000 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T L/C Cash
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SSTPOWER	Place of Origin	China
Type	Other	Output Power	1 - 200KW
Output Frequency	40Hz or 499.9Hz	Output Voltage	380V/400V/415V/440V/480V
Input Voltage	380V/400V/415V/440V/480V/220V/230V/240V

Product Description

FC33 Three Phase Variable Voltage & Frequency Converter

•High accuracy of voltage and frequency regulating with fast reponse time.

•Display the voltage, frequency, current and power simultaneously

•Instant trip breaker within 2ms in case of failure

•No interference of radiation, no harmonic disdortation

•With buzzer alarm for overload, over voltage, over temperature, short circuit

•Apply worldwidely for all kinds of voltage and frequency standard

•Pure and stable sinewave output, withstands all kinds of load.

FC33 3 Phase in 3 Phase out Variable Voltage & Frequency Converter

Item

FC33

Power Rating（KVA）

10K

15K

20K

30K

45K

60K

75K

100K

120K

150K

200K

Control Method

IGBT/PWM (Pulse Width Modulation)

Input

Rated Voltage

3P4W+G 380V

Voltage Range

±10%

Frequency

50/60Hz(47Hz-63Hz)

Output

Rated Voltage

Low Grade：0-300V ; High Grade :0-520V

Limit Current Low Grade(L-N)(A)

125

167

208

275

333

417

558

Limit Current High Grade(L-N)(A)

104

138

167

208

279

Source Voltage Regulation

≤±1%

Load Voltage Regulation

≤±1%

Power Factor

PF≥0.8

Frequency

400HZ（499.9HZ can be customized）

Frequency Stability

≤0.01%

Wave distortion

﹤2%

Efficiency

≥90%

Reponse time

≤2ms

Crest Factor

3:01:00

System Protection

Overload, over voltage, over current, input under voltage, over temperature, short circuit

LED Display

Voltmeter

4 Digital LED display for output voltage, resolution 0.1V

Ammeter

4 Digital LED display for output current, resolution 0.1A

Wattmeter

4 Digital LED display for output power, resolution 0.1W/0.1KW

Frequency Meter

4 Digital LED display for output frequency, resolution 0.1Hz/Step

Others

Cooling System

Air

Insulation Resistance

≥2MΩ

Voltage-endurance

The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min.

Working Environment

Ambient Temperature

0℃-45℃( No condensation )

Working Humidity

0℅-90℅( No condensation )

Altitude

≤1500m

Dimension

Size WxDxH(mm)

500×650×850

550×750×1100

700×900×1300

800×1100×1400

850×1220×1400

Net Weight (KG )

160

200

260

320

370

400

440

900

950

1250

1650

Gross Weight (KG )

180

220

280

370

400

430

490

950

1000

1300

1700

Product specifications are subject to change without further notice.
