50Hz to 60Hz and 60Hz to 50Hz AC Power Source 40Hz to 400Hz Frequency Converter
US$ 250 - 2000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SSTPOWER
Place of Origin:
China
Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Three Phase 50Hz to 60Hz and 60Hz to 50Hz AC Power Source 40Hz to 400Hz Frequency ConverterUS$ 250 - 2000MOQ: 1 Piece -
30KVA Three Phase 50Hz 60Hz 400HZ 220V to 380VAC Varible Voltage And Frequency Power SupplyUS$ 3580 - 3600MOQ: 1 Piece
-
Single Phase 220v To Three Phase 380V 400V 415V Voltage Converter Power Supply 50KVAUS$ 4630 - 4700MOQ: 1 Piece
-
10KVA Single Phase 50Hz to 60Hz 400HZ Converter 220V 230V 240V Varible Voltage And Frequency Power SupplyUS$ 1450 - 1600MOQ: 1 Piece
-
Single Phase 220V to Three Phase 380V Rotary Phase ConverterUS$ 250 - 2000MOQ: 1 Piece
Brand Name
SSTPOWER
Place of Origin
China
Type
Other
Output Power
1 - 200KW
Output Frequency
40Hz or 499.9Hz
Output Voltage
380V/400V/415V/440V/480V
Input Voltage
220V/230V/240V

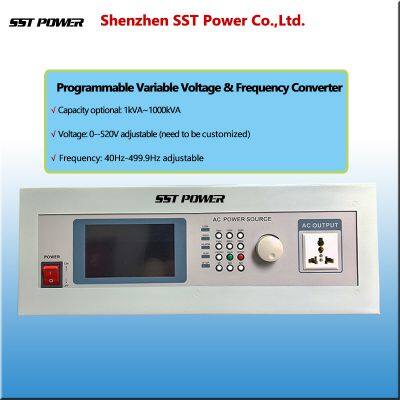

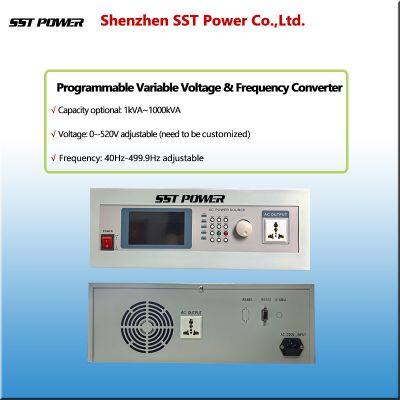

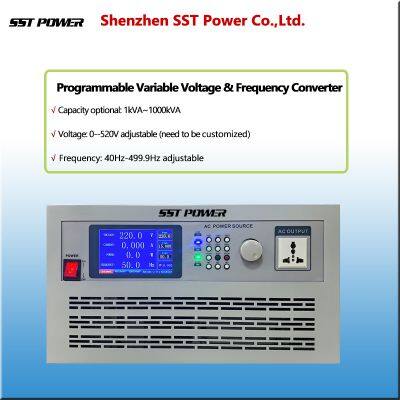

FC11 Single Phase Variable Voltage & Frequency Converter
•High accuracy of voltage and frequency regulating with fast reponse time.
•Display the voltage, frequency, current and power simultaneously
•Instant trip breaker within 2ms in case of failure
•No interference of radiation, no harmonic disdortation
•With buzzer alarm for overload, over voltage, over temperature, short circuit
•Apply worldwidely for all kinds of voltage and frequency standard
•Pure and stable sinewave output, withstands all kinds of load.
| FC11 One Phase Variable Voltage & Frequency Converter | |||||||||||||
| Item | FC11 | ||||||||||||
| Power Rating（KVA） | 0.5K | 1K | 2K | 3K | 5K | 10K | 15K | 20K | 30K | 50K | 60K | ||
| Control Method | IGBT/PWM (Pulse Width Modulation) | ||||||||||||
| Input | |||||||||||||
| Rated Voltage | 1P2W+G 220V | ||||||||||||
| Voltage Range | ±10% | ||||||||||||
| Frequency | 50Hz(47Hz～63Hz) | ||||||||||||
| Output | |||||||||||||
| Rated Voltage | Low Grade: 0-150V ; High Grade: 0-300V | ||||||||||||
| Limit Current Low Grade(L-N)(A) | 4 | 8 | 17 | 25 | 42 | 83 | 125 | 167 | 250 | 417 | 500 | ||
| Limit Current High Grade(L-N)(A) | 2 | 4 | 8 | 13 | 21 | 42 | 63 | 83 | 125 | 208 | 250 | ||
| Source Voltage Regulation | ≤±1% | ||||||||||||
| Load Voltage Regulation | ≤±1% | ||||||||||||
| Power Factor | PF≥0.8 | ||||||||||||
| Frequency | 50/60Hz(40.0～499.9HZ (Programmable) | ||||||||||||
| Frequency Stability | ≤0.01% | ||||||||||||
| Wave distortion | ﹤2% | ||||||||||||
| Efficiency | ≥90% | ||||||||||||
| Reponse time | ≤2ms | ||||||||||||
| Crest Factor | 3:01:00 | ||||||||||||
| System Protection | Overload, over voltage, over current, under voltage, over temperature, short circuit | ||||||||||||
| LED Display | |||||||||||||
| Voltmeter | 4 Digital LED display for output voltage, resolution 0.1V | ||||||||||||
| Ammeter | 4 Digital LED display for output current, resolution 0.1A | ||||||||||||
| Wattmeter | 4 Digital LED display for output power, resolution 0.1W/0.1KW | ||||||||||||
| Frequency Meter | 4 Digital LED display for output frequency, resolution 0.1Hz/Step | ||||||||||||
| Others | |||||||||||||
| Cooling System | Air | ||||||||||||
| Insulation Resistance | ≥2MΩ | ||||||||||||
| Voltage-endurance | The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min. | ||||||||||||
| Working Environment | |||||||||||||
| Ambient Temperature | 0℃-45℃( No condensation ) | ||||||||||||
| Working Humidity | 0℅-90℅( No condensation ) | ||||||||||||
| Altitude | ≤1500m | ||||||||||||
| Dimension | |||||||||||||
| Size WxDxH(mm) | 430×500×180 | 350×530×660 | 350×650×860 | 550×750×1100 | 700×900×1300 | ||||||||
| Net Weight (KG ) | 25 | 29 | 40 | 70 | 75 | 120 | 138 | 180 | 270 | 380 | 400 | ||
| Gross Weight (KG ) | 31 | 35 | 46 | 76 | 80 | 132 | 180 | 200 | 300 | 400 | 420 | ||
| Product specifications are subject to change without further notice. | |||||||||||||
