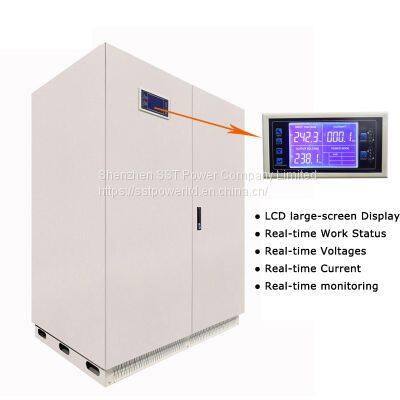

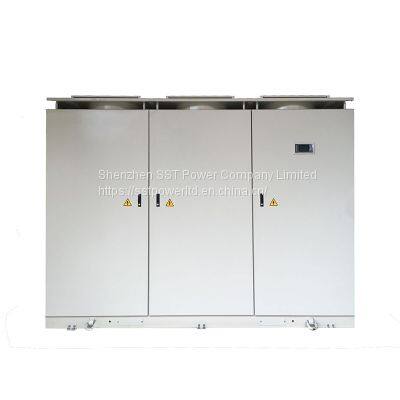

Help Center100kva Static ac Automatic Voltage Regulator/AVR Industrial Three Phase SCR Voltage Stabilizer
Related Products
-
60kVA Three Phase Voltage Automatic Balance Static Non-contact Voltage StabilizerUS$ 1600 - 2000MOQ: 1 Piece -
1000kva Static ac Automatic Voltage Regulator/AVR Industrial Three Phase SCR Voltage StabilizerUS$ 11000 - 19000MOQ: 1 Piece
-
Contactless 3 Phase 80KVA 120KVA Static Voltage Regulator StabilizerUS$ 1700 - 2400MOQ: 1 Piece
-
3 Phase 20KVA to 80KVA Static Voltage Stabilizer Outdoor Type IP54 Noncontact AVRUS$ 1300 - 1450MOQ: 1 Piece
-
3 Phase 60KVA Static Voltage Stabilizer Outdoor Type IP54 AVR AVS Voltage RegulatorUS$ 1800 - 1900MOQ: 1 Piece
Product ： ZW-S Three Phase Static Voltage Stabilizer
Model ： ZW-S10kVA-4000kVA
Input Voltage ： 3 x 380VAC (3Phase + N)(208V,220V, 230V, 400V, 415V option)
Input Range ： ±15%~60%(Can be customized)
Output Voltage ： 3 x 380VAC (3Phase + N)(208V,220V, 230V, 400V, 415V option)
Output Accuracy： ±1%/±2%/±3%/±5%( Can be adjusted)
Phase ： Three Phase
1. General
ZW-S series three phase intelligent static AC voltage stabilizer adopt the newest DSP operation and metering IC control technology, fastest AC sampling technology, effective values calibrating technology, current zero-crossing switching and fast compensating voltage stabilizing technology. They control several available silicon slice by special sequence to control the voltage connections, then to change the main voltage and voltage polar.
It is composed of insulation transformer, SCR modules, CPU control core, fast voltage stabilizing technology and safety protection device so that the voltage stabilizer accomplish non-contact control, safe, high efficient, energy conservation and environmental protection. It is the perfect match of transformer and SCR on/off switch.
2. Application
This product is widely used for national defense, mechanical processing equipment, transportation, communications, scientific research, industry, transportation, railways, large electromechanical equipment, metal processing equipment, CNC machine tools, printing machines, laser cutting machines, production lines, construction engineering equipment, elevators, medical equipment, Embroidery textile equipment, air-conditioning, radio and television, household appliances, lighting, new energy and other power-consuming occasions that need to be stabilized.
3.Environment
ZW-S series voltage stabilizer should be used indoors. For outdoor use, customization is available, please contact our salesperson.
Ambient temperature: -15°C~+40°C
Relative humidity; ≤90%
Altitude: ≤1000m
No vibration or bumps in the installation site
There is no gas, steam, chemically deposited dust, dirt and other explosive and corrosive media that seriously affect the voltage and insulation.
4. Features
● Fast Response
Response time within 40 millisecond.
● Wide Input Voltage Swing Ranges
Input Range can be customized from - ±15% to ±60%
● High Precision for the Output Voltage
Output Voltage Accuracy could be ±1% (±1% to ±5% adjustable)
● Multi-protection Design
Highly reliable and endurable design. With the protection of over-voltage, under-voltage ,over-load, short-circuit, automatic bypass.
● Independent Phase Control
Three - phase input and output are adjusted separately to achieve balance so that the equipment can operate normally. This type voltage stabilizer has higher accuracy and more stable operation.
