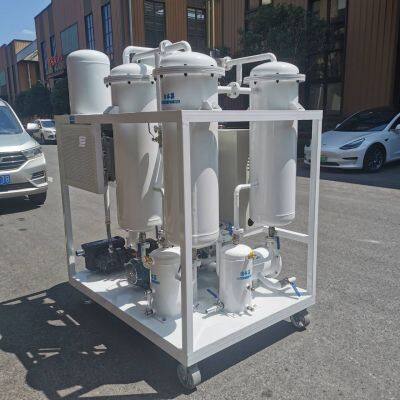

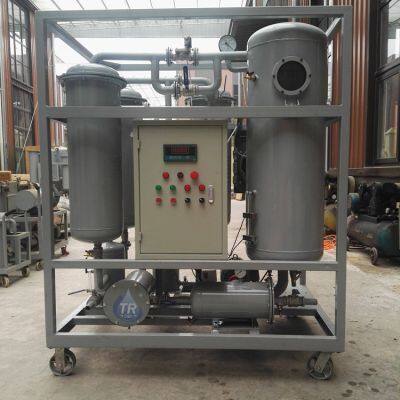

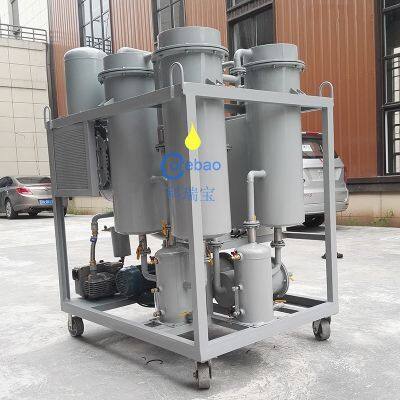

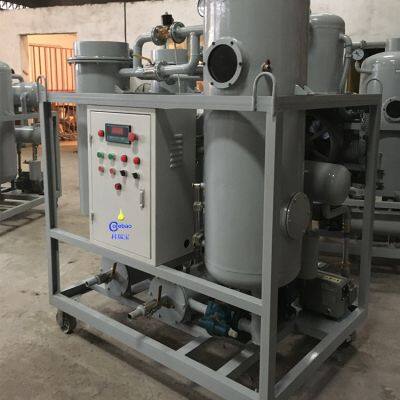

Turbine oil Purification machine remove lubricating oil moisture particles
- 100 Set / Sets per Month
- Shanghai,Chongqing,any port of China
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 3 days
You May Like
-
Mobile Vacuum Double Stage Transformer Oil Purifier Machine
-
Oil Purifier Machine China Lubricating Oil Purifier with Plate Pressure Filter
-
High Quality lube Oil Filtration Machine Hydraulic Oil Purification Plant
-
Lubricant Oil Regeneration Plant Lubrication Oil Purifier Machine
-
Fully Automatic Double Stage Recyclition Oil Filtration Unit 3000 Liter/Hour
-
Portable High Vacuum Transformer Oil Purification Machine
Product Details
Brand Name | COREBAO | Place of Origin | China | |
Model Number | ZJC-J50F | Certification | ISO9001:2015,CE,SGS | |
After-sales Service Provided | No overseas service provided | Voltage | 380V/50Hz(On-demand customization) | |
Usage | Lubricant Oil | Condition | New | |
Power(W) | 40kW | Working Pressure | ≤0.4Mpa | |
Flow | 3000L/h |
Product Description
TURBINE OIL PURIFIER
FUNCTIONS OF SERIES
As industrial equipment operates over time, it is natural for water and solid particles to infiltrate the lubricating system. This gradual intrusion not only causes erosion and wear of vital metal components but also compromises the overall performance of the lubricating oil, ultimately impacting the efficient operation of the entire unit. Addressing these inevitable challenges, the ZJC Series oil purification device is purpose-built and meticulously crafted to provide effective solutions.
TECHNICAL ADVANTAGES
Advanced Moisture and Air Removal: The ZJC Series incorporates American coalescing-separating spraying technology, significantly boosting moisture and air removal efficiency.
Efficient Dehydration: Utilizing American dry-decompression techniques, this series doubles the dehydration efficiency, ensuring the optimal condition of the oil.
Enhanced Filtration: With the adoption of Fengyu's patented folded filter element, the ZJC Series achieves a finer filtration level of up to 5μm and an outlet oil β index exceeding 1000. Combined with gas recoil technology, this extends the filter element's lifespan twofold.
Precise Heating Control: The low load design, with less than 1.0W/C, maintains constant oil heating to preserve oil quality.
Multi-Group Control: Offering multiple group control, constant temperature settings, and adjustable ranges from 0-100°C for precise operation.
Safety Measures: The ZJC Series includes a secure chain control system to prevent overheating in case of oil loss, ensuring safety in operation.
Automated Oil Level Control: Utilizing float valves and photoelectric oil level control, the need for manual supervision is eliminated.
Foam Prevention: The series adopts French de-foaming techniques to prevent oil leakage, maintaining system integrity.
Reliable Electrical Components:With major electrical apparatus imported from America, the ZJC Series offers a safe and dependable control system.
Motor Protection: A phase protector is used to prevent damage to the electrical motor.
Low Noise Operation: The low-noise oil pump ensures quiet and efficient operation.
Environmentally Friendly Design:Featuring a ship-shaped chassis-mount structure, it guarantees oil leak protection and safeguards against environmental pollution.
APPLICATION SCOPE
Turbine Oil: Designed for effective purification, dehydration, and maintenance of turbine oil.
Fire Resistant Oil: Ideal for optimizing the quality and safety of fire-resistant oils.
Lubricating Oil: Ensures efficient dehydration and filtration, extending the life of lubricating oils.
Hydraulic Oil: Facilitates the removal of impurities and the enhancement of hydraulic oil performance.
Engine Oil: Optimizes engine oil quality and ensures safe and reliable operation.
KEY FUNCTIONS
Efficient Dehydration: Employs advanced techniques to remove moisture, enhancing the longevity of oils.
Emulsion Break: Quickly and effectively breaks oil emulsions, ensuring oil quality and performance.
Fine Filtration: Achieves precision filtration of particulates in oil, resulting in cleaner and higher-grade oil.
Online Operation: Enables safe and seamless operation with units online, guaranteeing uninterrupted performance and reliability.
At our company, we prioritize the safe and secure transportation of your valuable products. Each unit is meticulously packed in robust, high-quality crates designed to withstand the rigors of transit. Our packing process ensures that every product is fully protected against potential damage, preserving its integrity from our facility to your destination.
