Product Description

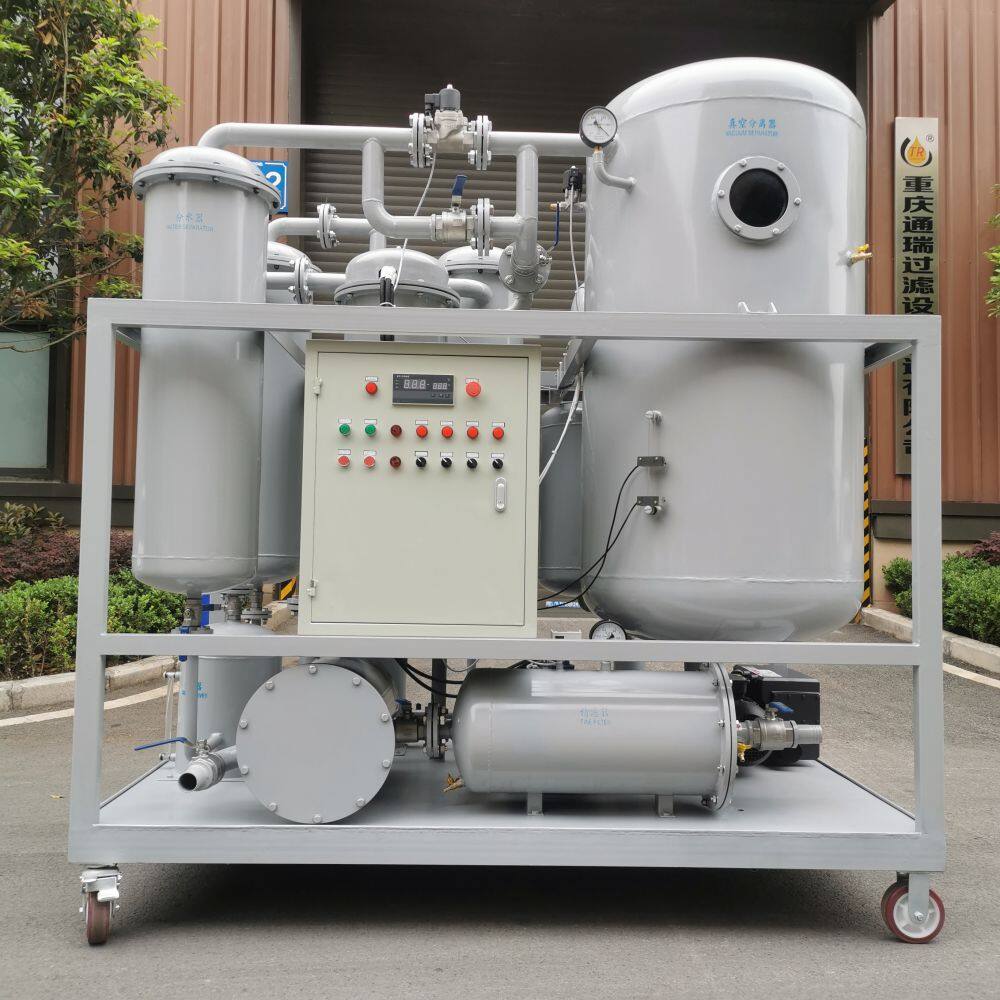

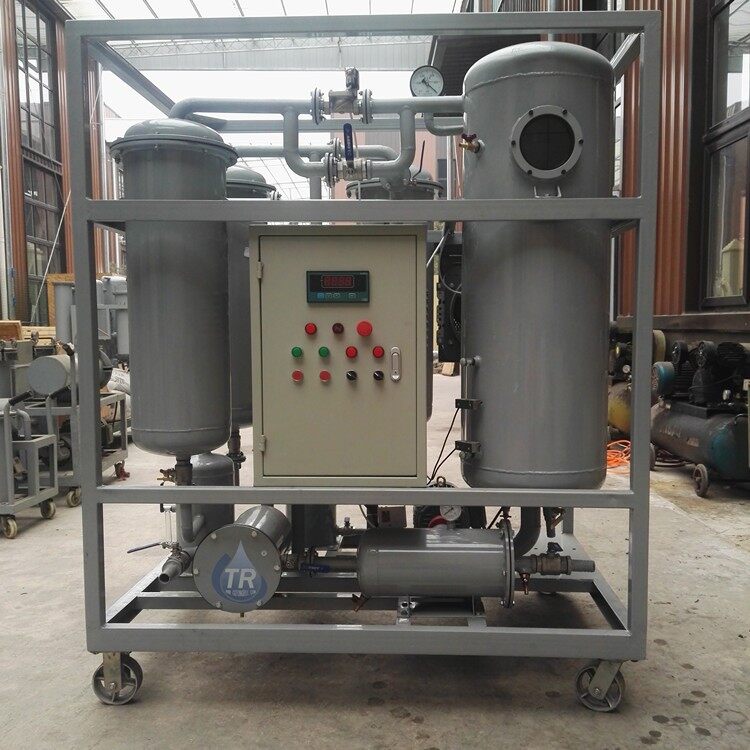

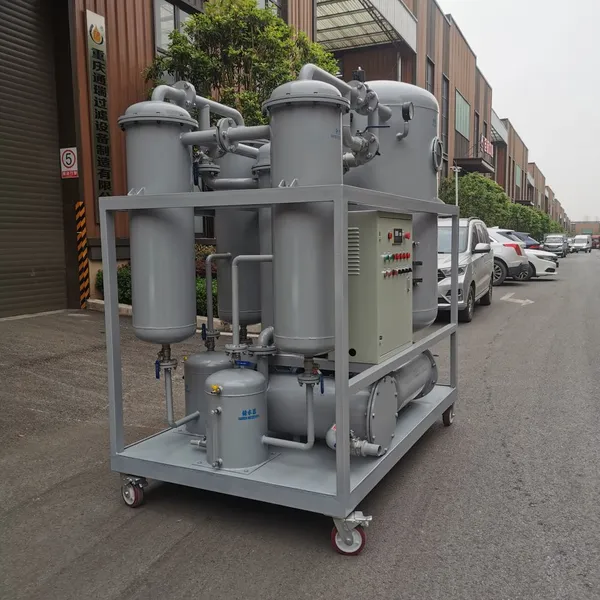

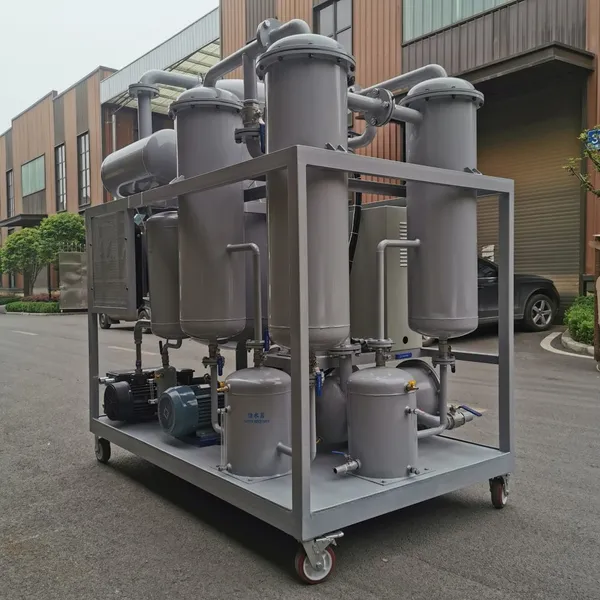

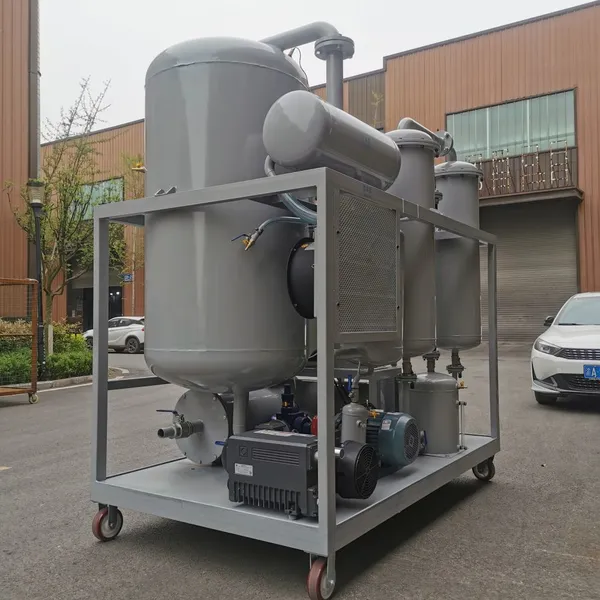

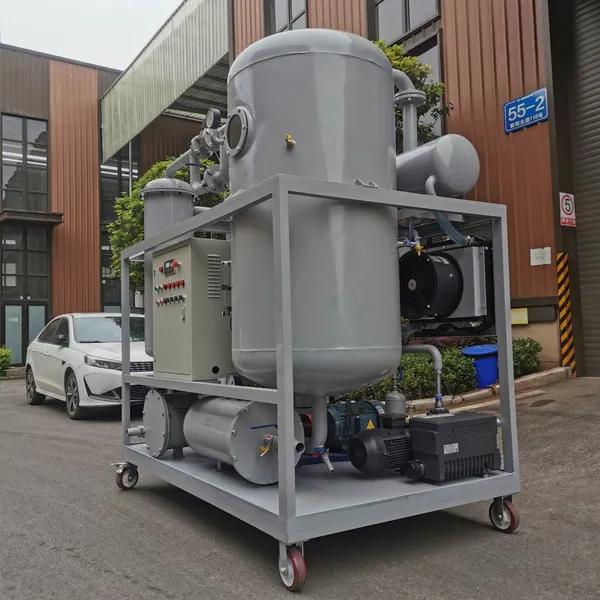

Turbine oil filter machine is mainly used to treat unqualified turbine oil, especially suitable for severely emulsified turbine oil, which can quickly and efficiently remove moisture, gas and impurities in the oil. Make the quality indicators of the oil products meet the new oil standards to ensure the safe operation of the steam turbine unit. This machine uses a special polymer material as the medium, which integrates demulsification, dehydration and impurity removal. Combined with vacuum separation technology, it can online demulsification, dehydration, acid removal, and impurity removal, so that the severely turbid and emulsified turbine oil becomes clear. transparent. Turbine oil filter is an ideal equipment for online processing of turbine oil, low viscosity lubricating oil and hydraulic oil.
Product advantages：
1. Strong ability to remove water and break emulsification, it is easy to separate a large amount of water in the oil, and it is also easy to remove a small amount of water in the oil. The oil becomes clear and transparent.
2. The ability to filter impurities is strong. The automatic backwashing filter bag can remove a large amount of impurities in the oil. The large area and deep precision filter material can remove the fine particles in the oil. It can be used instead of the oil system cleaning device to make the oil with serious pollution. The system can also be restored to within the "Operating Turbine Oil Pollution Control Standards".
3. High degree of automation, small and light, safe and reliable. This turbine oil filter machine adopts infrared liquid level automatic control device, which realizes the separation of man-machine and makes the operation simpler and more reliable.
Technical Parameter
Item |
unit |
ZJC-10 |
ZJC-20 |
ZJC-30 |
ZJC-50 |
ZJC-75 |
ZJC-100 |
ZJC-150 |
ZJC-200 |
ZJC-300 |
||
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4500 |
6000 |
9000 |
12000 |
18000 |
||
Vacuum degree |
Mpa |
-0.06 ～ -0.096 |
||||||||||
Working pressure |
Mpa |
≤0.3 |
||||||||||
Fault free |
H |
≥4000 |
||||||||||
Continuous working time |
H |
≥150 |
||||||||||
Working temperature |
℃ |
40 ～ 70 |
||||||||||
Heating power |
kW |
9 |
18 |
30 |
36 |
60 |
72 |
108 |
144 |
144 |
||
Total Power |
kW |
11.5 |
17.5 |
33 |
39.5 |
66 |
79 |
115 |
153.5 |
154 |
||
Diameter of inlet&outlet |
DN |
25 |
25 |
25 |
32 |
42 |
42 |
50 |
50 |
50 |
||
weight |
Kg |
500 |
530 |
570 |
780 |
800 |
960 |
1050 |
1150 |
1350 |
||
Dimensions |
L |
mm |
1300 |
1350 |
1450 |
1500 |
1500 |
1800 |
1800 |
1800 |
2500 |
|
W |
mm |
1000 |
1000 |
1100 |
1150 |
1000 |
1500 |
1650 |
1500 |
1600 |
||
H |
mm |
1450 |
1450 |
1500 |
1650 |
1750 |
1800 |
1900 |
2000 |
2200 |
||
Oil index after treatment | ||||||||||||
Water content |
80ppm |
|||||||||||
Gas content |
≤0.1% |
|||||||||||
cleanness |
≤5µm（or as per requirement） |
|||||||||||
Demulsification Value |
≤10 min |
|||||||||||
Personnel advantage
Tongrui Filtration Equipment has obtained a number of patent certificates, providing customers with one-to-one supporting solutions
Payment advantage
Paid by T/T , L/C, Weston union, Paypal ...
Delivery time:
1~2work days if it is in stock. If not in stock, then 5~7work days
Shipping terms:
By ship, truck, air or others
