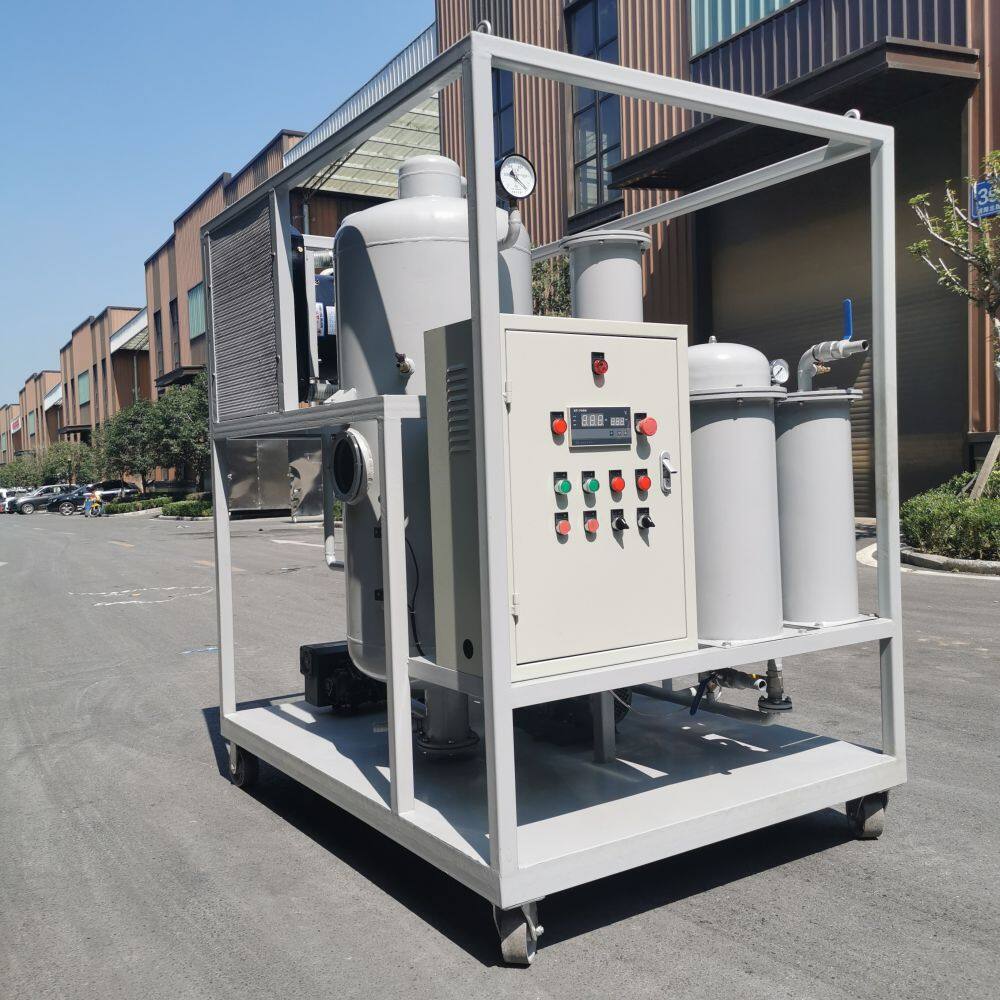

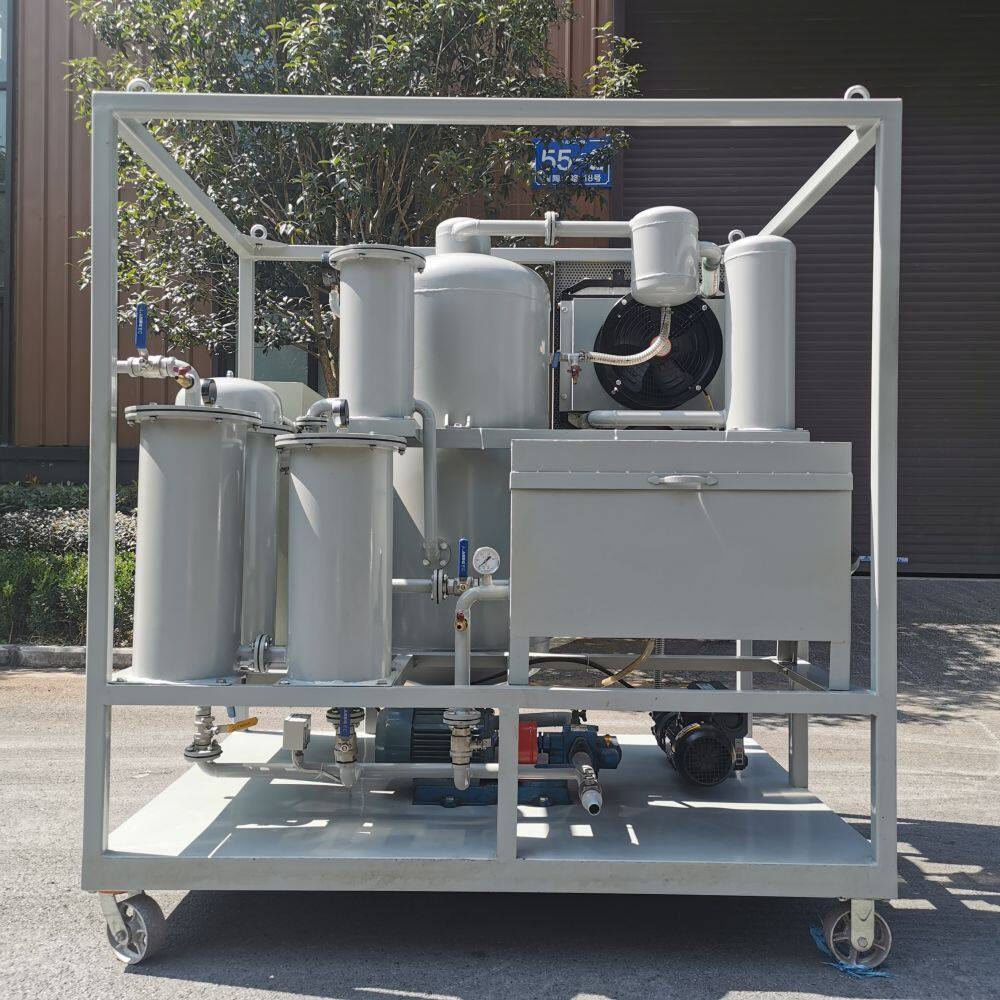

Oil Purifier Machine China Lubricating Oil Purifier With Plate Pressure Filter

APPLICATION

   ZJD-K multi-function lubricating oil purifier is developd targeting at the different characteristics of various lubricating oil. It is used for processing multiple types of lubricating oil and is widely applied in electricity, metallurgy, mine, machinery,chemical engneering, traffic,manufacturing ,food industy,ect. It can filter gear oil, hydraulic oil, freezer oil, vacuum pump oil,internal-combustion oil and heat treatment oil and quickly remove impurities, water, gas,light hydrocarbon and acid which are contained in the oil as well as enhance the quality of ol, recover the utilization capacity of the lubrication oil.

FEATURES:

1. ZJD-K is composed of ZJD vacuum hydraulic oil purifier and BK press filter machine,the two functions can be worked together or worked separately.

2. Four-stages filtration system, which can effectively filter out suspended particles and fine powdery impurities from the oil.

3. Three-dimensional complex type flash evaporation and aggregation separation,which can remove water and gas rapidly and thoroughly.

4. Strong wind condensing system: can quickly condense water vapor into water, increase the dehydration rate and reduce the vacuum pump load.

5. Infrared Oil-level Controlling System

1)The oil-level floating ball or infrared liquid level automatic controller system are installed in the vacuum vessel to control the oil level so as to avoid the oil being suctioned into vacuum pump in the operation.

2)When oil quantity is lower than the level of the float ball, then the oil pump will start-up automatically and pump oil into the vacuum vessel, when oil is up to the floating ball level, pump will stop automatically.

6. Digital intelligent temperature controller can set upper and lower limits for heating temperature, stable control and direct temperature display. The temperature probe detects the oil temperature directly, the temperature measurement is sensitive and accurate, and there is no hysteresis.

7. The machine is provided with overpressure, overcurrent, overload and anti-dry protection measures to ensure the safe operation.
