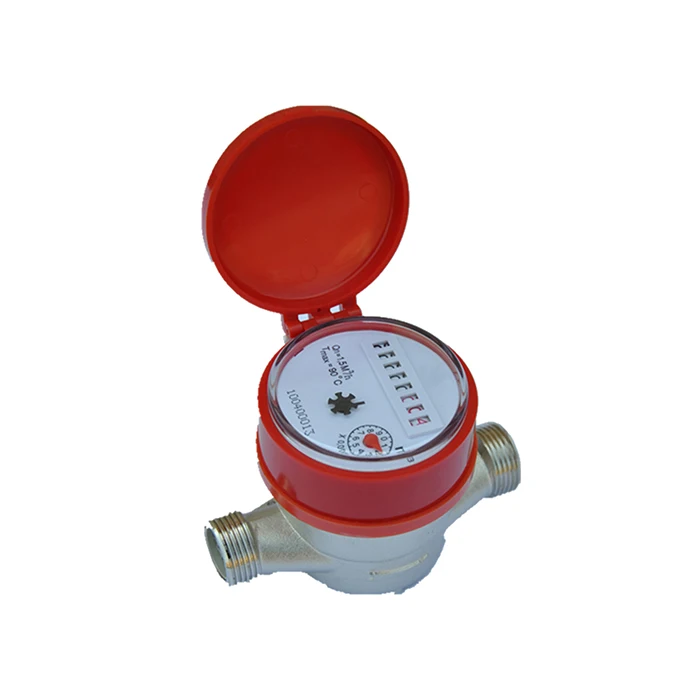

DN15mm Single Jet Dry Type of Pulse Hot Water Meter With ISO 4064 Standard

Name: DN15mm Single Jet Dry Type of Pulse Hot Water Meter With ISO 4064 Standard
Brand: MIDAS
Availability: InStock

FOB Price

US$ 30.00 - 35.00 / Piece

50 Pieces(Min. Order)

Port TIANJIN,QINGDAO,SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

MIDAS

Place of Origin

China

Product Description

Operating condition	PN: 1.0(10bar)
The water temperature	Cold water up to 40℃ and hot water up to 90℃
Standard	ISO9001, ISO4064
Medium Pressure	General Water Meter
Medium Temperature	Cold(Hot) Water
Size	DN15~DN25mm
Work Environment	Liquid Sealed Water Meter
Counter Instructions	Digital and Analogue
Level Measurement	B
Application	Measuring the volume of cold potable water passing through the pipeline
Brand Name	MIDAS
Packaging	Carton, pallet and as per customer's requirement.

Application:
Measuring the total volume of portable water passing through the pipeline.
It can be equipped with pulse output assembly (reed switch).

Feature:
Compact design, light weight, magnet transmission register which could be rotation in 360°for convenient reading.
Note: 1.The water mwter complies with the standard of <>（ISO4064-1~3:2005,IDT）
2. For hot water up to 90℃ is available on request.

Metrological requirements:
Temperature class：for cold water:T30 , for hot water：T30/90
Water pressure class：MAP10 or MAP16 on request
Pressure-loss class：Δp63
Sensitivity to the irregularity in the upstream velocity fields class：U10
Sensitivity to the irregularity in the downstream velocity fields class：D5

Maximum permissible error:
1）In the lower zone（Q1≤Q＜Q2）±5%
2）In the upper zone（Q2≤Q≤Q4）： for water temperature up to 30℃
±2% from 30℃ up to 90℃ ±3%

Dimensions

Type	Size	Length	Width	Height	Connecting Thread
	DN	L	B	H	Connecting Thread
	mm				D
LXDG-15	15	110	82	89	G3/4B
LXDG-20	20	130	82	89	G1 B
LXDG-25	25	130	82	89	G1 1/4B
