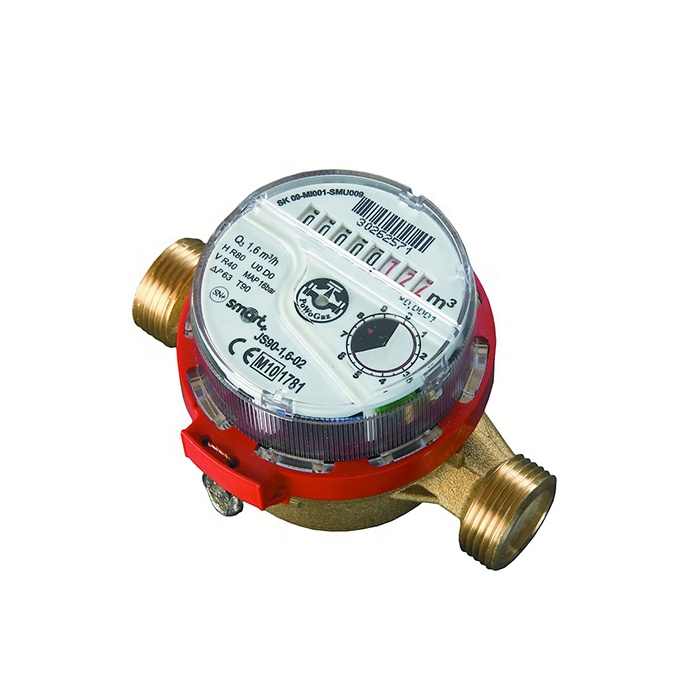

Home > Instruments & Meters > Meter for Liquid & Gas > Water Meter > 4-20ma Output Brass Single Jet Water Flow Meter
US$ 20.00 - 30.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
MIDAS
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
Low Cost Brass Single Jet Hot Water Flow MeterUS$ 12.00 - 15.00MOQ: 50 Pieces -
Factory Price Dry Type Single Jet Mechanical Water Flow MeterUS$ 12.50 - 16.50MOQ: 50 Pieces
-
Digital IC Card Prepaid Water MeterUS$ 12.80 - 15.00MOQ: 50 Pieces
-
Smart Residential IC Card Prepaid Water MeterUS$ 800.00 - 1000.00MOQ: 50 Pieces
-
Multi-Jet Dry Type Vane Wheel Pulse Transmitting Cold(Hot) Water MeterUS$ 22.00 - 25.00MOQ: 50 Pieces
Brand Name
MIDAS
Place of Origin
China
Application:
Measuring the total volume of portable water passing through the pipeline.
It can be equipped with pulse output assembly (reed switch).
Feature:
Compact design, light weight, magnet transmission register which could be rotation in 360°for convenient reading.
Note: 1.The water mwter complies with the standard of <>（ISO4064-1~3:2005,IDT）
2. For hot water up to 90℃ is available on request.
Metrological requirements:
Temperature class：for cold water:T30 , for hot water：T30/90
Water pressure class：MAP10 or MAP16 on request
Pressure-loss class：Δp63
Sensitivity to the irregularity in the upstream velocity fields class：U10
Sensitivity to the irregularity in the downstream velocity fields class：D5
Maximum permissible error:
1）In the lower zone（Q1≤Q＜Q2）±5%
2）In the upper zone（Q2≤Q≤Q4）： for water temperature up to 30℃
±2% from 30℃ up to 90℃ ±3%
Dimensions
