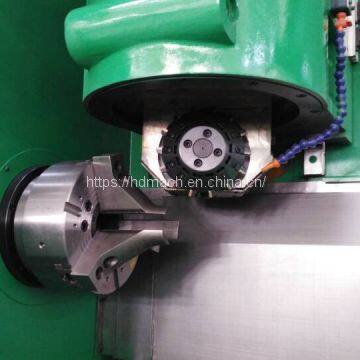

Help CenterCNC Spiral Milling Machine for Screw Pump Rotor
Related Products

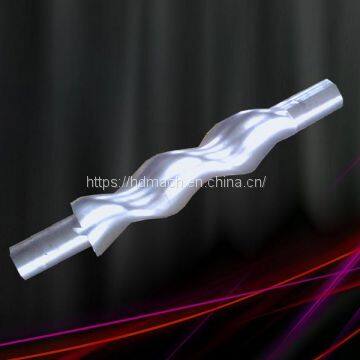

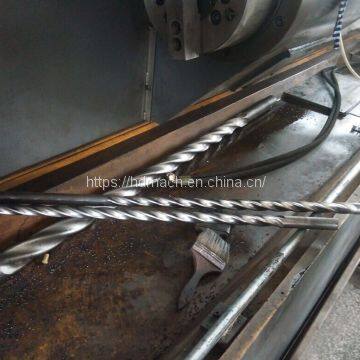

This machine can machining single-head and multihead rotors of screw pumps, PDM drills etc. Compaired with traditional machining, this machine has the features of high working efficiency, good finish, high accuracy, good operating performance.
Items |
Unit |
HYSK-LGX85 |
HYSK-LGX200 |
Range of machining diameter |
mm |
φ28～φ84 |
φ85～φ200 |
Max. machining length |
mm |
≤3400 |
≤6000 |
Work piece helical pitch |
|||
Work piece helix angle |
±60° |
±60° |
|
X-axis travel |
mm |
100 |
200 |
Z-axis travel |
mm |
3500 |
6000 |
X-axis quick movement speed |
mm/min |
0～1200 |
0～1200 |
Z-axis quick movement speed |
mm/min |
0～2400 |
0～2400 |
X、Z feeding speed |
mm/min |
0～1200 |
0～1200 |
Milling cutter speed |
r/min |
50～400 |
30～320 |
Cutter facer diameter |
mm |
200 |
|
Spindle bore diameter |
mm |
φ120 |
φ230 |
Chuck bore diameter |
mm |
φ90 |
φ210 |
Auxiliary headstock travel |
mm |
3600 |
6200 |
Spindle speed |
r/min |
0～20 |
0～15 |
Milling cutter motor power |
KW |
7 |
15 |
Spindle motor power |
KW |
5.2 |
7.5 |
X-axis motor power |
KW |
4.3 |
4.3 |
Z-axis motor power |
KW |
4.3 |
4.3 |
Chip conveyor motor power |
KW |
0.2 |
|
Water pump motor power |
W |
120 |
800 |
Liquid coolant capacity |
L |
80 |
160 |
Machine weight |
㎏ |
8000 |
|
Machine dimension（L×W×H） |
mm |
6500*2200*2000 |
9600*2200*2000 |
