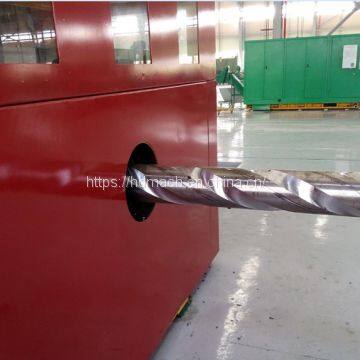

Drill collar spiral milling machine is the specialized cnc machine tool for milling drill collar, use three milling cutters cut the mutual 120°spiral groove of drill collar at the same time. X1, X2, X3 moving are controlled by CNC system and servo motor. With 3-jaw chuck, self-centering, whether pipe diameter how to change, the center keeps constant. Use 6sets idler wheel support and clamp workpiece, reduced the resistance of C axis, and increased the rigidity of clamps.
For example: If cut one ∮165 drill collar, three arc slot, then the process time can be in one hour.
Items |
Unit |
LXK320HY |
Cutter spindle speed range |
r/min |
80～500 |
Cutting speed range |
r/min |
80～160 |
Cutter diameter |
mm |
φ200 |
X-axis Max. travel |
mm |
150 |
Z-axis Max. travel |
mm |
10000 |
Manual chuck diameter |
mm |
φ780 |
Pneumatic chuck diameter |
mm |
φ730 |
The range of machining diameter |
mm |
φ100～φ310 |
Machine feeding speed |
ƒx≤4m/min；ƒz≤5m/min；ƒc≤3r/min |
|
X-axis quick movement speed |
m/min |
6 |
Z-axis quick movement speed |
m/min |
6 |
X1 radial feed speed |
m/min |
≤4 |
X2 radial feed speed |
m/min |
≤4 |
X3 radial feed speed |
m/min |
≤4 |
Setting accuracy of position |
mm |
0.001 |
X1 X2 X3 motor torque |
Nm |
20 |
C-axis motor torque |
Nm |
27 |
Z-axis motor torque |
Nm |
27 |
Spindle center height |
mm |
880 |
Roughness |
mm |
Ra3.2～Ra6.4 |
Machine weight |
㎏ |
20000 |
Machine dimension（L×W×H） |
mm |
14750*2450*2150 |
