Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CNC Casing Pipe Threading Lathe (flat Bed)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Automatic Grade
Automatic

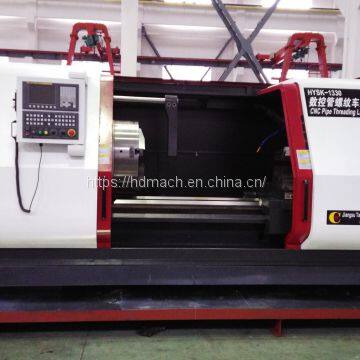

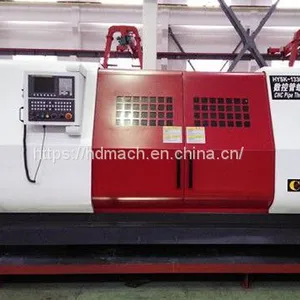

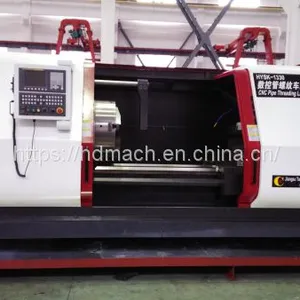

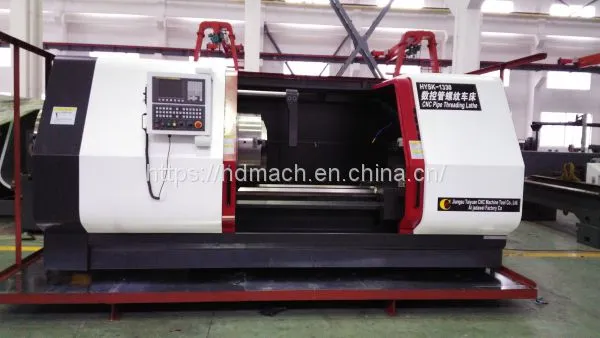

HYSK-1330 CNC pipe threading lathe is two coordinates continuous control CNC pipe threading lathe, flat bed machine, especially suitable for turning casing pipe thread. The CNC system is FUNAC0i Mate-TD
Main technical parameter:
No. | Item | Unit | HYSK-1330 |
1 | Max swing diameter over bed | mm | ∮680 |
2 | Pneumatic chuck diameter | mm | ∮630 |
3 | Pneumatic single jaw travel | mm | 20+7 |
4 | Working range of diameter | mm | 125～280 |
5 | Working range of length | mm | 1500 |
6 | Max swing diameter over carriage | mm | ∮380 |
7 | Spindle hole diameter | mm | ∮300 |
8 | Spindle rotate speed | rpm | 25～400 |
9 | Main motor power | kW | 15 |
10 | Max. stroke of X axis | mm | 400 |
11 | Max. stroke of Z axis | mm | 1000 |
12 | X/z servo motor | N.m | 22/22 |
13 | Turret type | 4 position | |
14 | Weight | kg | 9600 |
15 | Dimension(LXWXH) | mm | 3200×1900×1800 |
