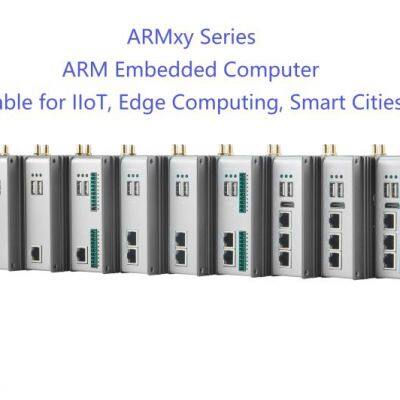

ARMxy BL340A ARM Controller T507-H 4*A53 64-Bit With Ubuntu 4*RS485 4DI 4DO for Energy Efficiency Management

CPU

 T507-H, 28nm

4x ARM Cortex-A53 cores, with a clock speed up to 1.416GHz.

GPU: G31 MP2, supporting OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, and OpenCL2.0

Encoder: Supports hardware encoding of 4K@25fps H.264 video.

Decoder: Supports hardware decoding of 4K@30fps H.265 video.

ROM

eMMC 8/16GByte

RAM

DDR4 1/2GByte

ETH

RJ-45, 1~3, 3x100M, ESD Level 3, EFT Level 3

USB

2x USB2.0 HOST(USB1, USB2), supports high-speed 480Mbps, full-speed 12Mbps, and low-speed 1.5Mbps modes, ESD Level 3

HDMI

1x HDMI2.0a, compatible with HDCP2.2, HDCP1.4 standard, supports up to 4K@30fps

IO Slot

X series IO board slot: 1, X series IO board, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc;

Y series IO board slot: 2, Y series IO board, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc.

LED

1x power indicator light

2x user-programmable indicator light

Mini PCIE

1, Supports Bluetooth, WiFi, 4G module, etc.

SIM Slot

1 slot, NANO

Antenna

2, For 4G/WIFI/GPS

Debug

1x Micro USB debug port

SD Slot

1

Reset

1 reset button

Watchdog

Onboard independent hardware watchdog

Power

Rated DC 24V, supports wide voltage range of 9-36VDC

Equipped with reverse polarity protection and overcurrent protection

3-pin terminal block with screw terminals

Grounding

1-pin GND terminal

Installation

DIN35 rail mounting, wall mounting

Material

Aluminum alloy casing + stainless steel

Dimension

110*83*42mm or 110*83*48mm

Kernel

Linux-4.9.170, Linux-RT-4.9.170

File System

Buildroot-201902, Ubuntu 18.04, Android 10

GUI development tool

Qt-5.12.5

Protocol Conversion Software

BLIoTLink, used for protocol conversion, such as Modbus,PLC, BACnet, IEC104, MQTT, OPC UA, support AWS IoTCore, Thingsboard, IgnitionSCADA, IoT, HUAWEI

IoT.

Remote Access Tool

BLRAT, enables remote device access for convenient remote maintenance.

Other Software

Node-Red, Python, Docker, C#, MySQL, SQLite

BL340

1x100M

2

X

1x6PIN

X

42x83x110mm

BL340A

1x100M

2

X

1x20PIN

X

42x83x110mm

BL340B

1x100M

2

X

1x20PIN

2

48x83x110mm

BL340C

1x100M

2

X

1x10PIN

X

42x83x110mm

BL341

2x100M

2

X

1x6PIN

X

42x83x110mm

BL341A

2x100M

2

X

1x20PIN

X

42x83x110mm

BL341B

2x100M

2

X

1x20PIN

2

48x83x110mm

BL342

3x100M

2

1

1x6PIN

X

42x83x110mm

BL342A

3x100M

2

1

1x20PIN

X

42x83x110mm

BL342B

3x100M

2

1

1x20PIN

2

48x83x110mm

SOM340

T507-H

1.4GHz

4 x A53

8GByte

1GByte

 -40~85°C

SOM341

T507-H

1.4GHz

4 x A53

16GByte

2GByte

 -40~85°C

SOM342

T507-H

1.4GHz

4 x A53

8GByte

1GByte

 0~70°C

SOM343

T507-H

1.4GHz

4 x A53

16GByte

2GByte

 0~70°C

X10

2

x

x

x

x

6PIN

X11

x

2

x

x

x

6PIN

Not support

X12

1

1

x

x

x

6PIN

Not support

X13

x

x

2

2

x

6PIN

X14

x

x

4

x

x

6PIN

X15

x

x

x

4

x

6PIN

X16

x

x

x

x

4

6PIN

X20

4

x

x

x

x

10PIN

X21

3

1

x

x

x

10PIN

Not support

X22

2

2

x

x

x

10PIN

Not support

X23

4

x

4

4

x

20PIN

X24

3

1

4

4

x

20PIN

Not support

X25

2

2

4

4

x

20PIN

Not support

X26

2

x

8

4

x

20PIN

X27

1

1

8

4

x

20PIN

Not support

X28

2

x

12

x

x

20PIN

X29

1

1

12

x

x

20PIN

Not support

X30

x

x

x

x

16

20PIN

Y01

4DI+4DO, NPN

Y41

4AO, 0/4~20mA

Y02

4DI+4DO, PNP

Y43

4AO, 0~5/10V

Y11

8DI, NPN

Y46

4AO, ±5V/±10V

Y12

8DI, PNP

Y51

2RTD, 3-Wire PT100

Y21

8DO, PNP

Y52

 2RTD, 3-Wire PT1000

Y22

8DO, NPN

Y53

2RTD, 4-Wire PT100

Y24

4DO, Relay

Y54

 2RTD, 4-Wire PT1000

Y31

4AI, single-ended, 0/4~20mA

Y56

Resistance measurement

Y33

4AI, single-ended, 0~5/10V

Y57

Voltage measurement

Y34

4AI, differential, 0~5/10V

Y58

4TC

Y36

4AI, differential, ±5V/±10V

Y63

4 RS485 or RS232

ESD immunity

Power ports

Signal ports

GB/T 17626.2-2018 / IEC61000-4-2:2008

Level 3

Air ±8KV, Contact±6KV

EFT immunity

Power ports

Signal ports

GB/T 17626.4-2018 / IEC61000-4-4:2012

Level 3

Surge (lightning) immunity

Power ports

Signal ports

GB/T 17626.5-2019 / IEC61000-4-5:2014

Level 3

Conducted susceptibility to RF field induced disturbances

Power ports

Signal ports

GB/T 17626.6-2017 / IEC61000-4-6:2013

Level 3

10V/150kHz~80MHz

Conducted interference

Power ports

Signal ports

GB/T 6113.201-2018 / CISPR 16-2-1:2017

150kHz~30MHz

Cold start and operation at low temperatures

GBT 2423.1-2008

Test environment temperature -40°C

Hot start and operation at high temperatures

GBT 2423.2-2008

Test environment temperature 60°C

Constant humidity and heat

GB/T 2423.3-2016

Test environment humidity +40°C/95%RH

High-Low temperature shock

GB/T 2423.22-2012

Startup after rapid switching between -40°C and 60°C for 30 seconds (no condensation).

Temperature change

GB/T 2423.22-2012

Temperature cycling test from -40°C to 60°C under powered test conditions.

Sinusoidal vibration

GB/T 2423.10-2019

Vibration testing with and without packaging while the product is in the powered-off state.

Free fall

ISTA 2A-2011GB/T 2423.7-2018GB/T 6587-2012

Drop test with packaging while the product is powered off.
