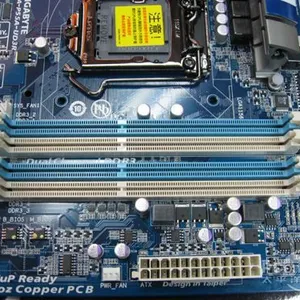

Product: 18 layer power system motherboard PCBA
Main installation: SMT+plugin+post soldering
SMT、 DIP、TEST、Helpset、 OEM workers who integrate assembly. Currently, the company has 16 SMT
production lines for YAMAHA high-speed SMT, with a daily production capacity of 35 million points. Automatic
inspection equipment includes X-RAY, AOI, ICT and other devices, 4 automatic AI devices capable of attaching
the smallest component 0.05mm, 4 DIP lines, and 6 post soldering assembly lines
Serial Number Project Manufacturing capability
1 Layers Floors 1-80
2 Maximum size of PCB 2500*1150mm
3 Maximum size of flexible FPC 500mm*100m
FAQ
Question Point Answer
Q: What information is required for PCB CEGSATE: Gberber files for PCB production, product process instructions, such as material requirements, surface treatment requirements, finished product thickness requirements, PCB stack structure diagram for advanced products, copper thickness requirements for each layer, sample quantity requirements, batch order requirements, product application fields, and other related information are required
Q: What information does PCBA need to provide CEGSATE: BOM report is required (including the brand, specifications, and model of the components), X and Y coordinate numbers of PCBA components, and processing requirements: Do we need to purchase the components on our behalf? Or customer supplied components? Do you need software burning? What is the required quantity? What is the monthly demand and other detailed information.
Question: Is my file secure? CEGSATE: Your files are very secure, and we protect intellectual property rights for our clients throughout the entire process. All files provided by the customer will never be shared with any third party.
Q: What is the minimum order quantity? CESGATE: There is no minimum order quantity in POE. We are able to handle small and large batches flexibly.
Q: Do you have any other services? CESGATE: We mainly focus on PCB+FPC production+SMT+assembly PCBA+component procurement services; In addition, we can also provide programming, testing, software burning, wiring, and shell assembly services; And product design, product development, software development
Q: What is your inspection method? How do you control the quality? CESGATE: In order to ensure the quality of PCB and FPC products, flying pin testing is usually used for samples and small batches; The inner circuit undergoes AOI optical inspection, online AOI inspection, and the finished product undergoes 100% inspection through E-SET testing rack. The appearance undergoes 100% inspection through fully automatic finished product inspection equipment and FQC. PCBA undergoes automatic optical inspection (AOI), BGA part X-Ray 100% radiographic inspection, and first article inspection (FAI). PCBA products that require software burning undergo 100% full testing through finished product testing rack according to product functional requirements.
