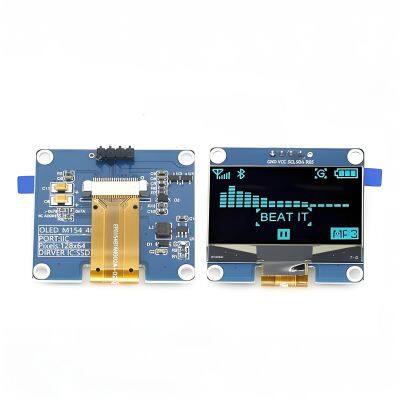

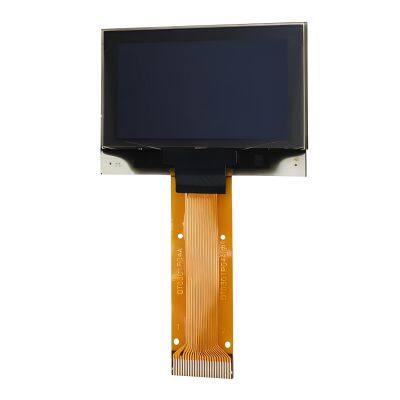

1.54 Inch OLED Display Module 128x64 Driver IC is SSD1309 SPI/IIC/parallel Interface Monochrome Oled
US$ 3 - 3.3
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Polymer
Place of Origin:
China
Model Number:
PLT-1.54
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
1.3 Inch 128x64 Yellow Super Thin 1.45mm Lcd OEL Oled Display ScreenUS$ 1.52 - 1.9MOQ: 2 Pieces -
0.96 Inch OLED Display Module 128x64 Driver IC is SSD1306 SPI/IIC/parallel Interface Monochrome OledUS$ 1 - 1.05MOQ: 2 Pieces
-
0.91 Inch OLED Display Module 128x32 Driver IC is SSD1306 I2C Interface Monochrome Oled DisplayUS$ 0.7 - 0.77MOQ: 2 Pieces
-
0.87 Inch OLED Display Module 128x32 Driver IC is SSD1316 I2C Interface Monochrome Oled DisplayUS$ 0.90 - 0.97MOQ: 2 Pieces
-
0.78 Inch OLED Display Module 128x80 Driver IC is SH1107G 4-wire SPI Interface Oled DisplayUS$ 1.05 - 1.15MOQ: 2 Pieces
Brand Name
Polymer
Place of Origin
China
Model Number
PLT-1.54
| Type | OLED |
| Display Size | 1.54" |
| Brand Name | Ploymer |
| Size | 1.54" PMOLED |
| Resolution | 64×128 Dots |
| Driver IC | SSD1309 |
| Interface Type | I2C/4-wire SPI |
| Display Color | Monochrome(White/Blue) |
| Panel Size | 42.04x27.22x1.45(mm) |
| Active Area | 35.052x17.516 (mm) |
| Module size | 42.04x27.22x1.45 (mm) |
| Pixel Pitch | 0.274x0.274 (mm) |
| Pin | 24 |
| Working Voltage | 1.65~3.3V |
| Brightness(cd/m³) | 360 |
| Driving Voltage | 9V |
| Module Structure | COG |
| Wide-angle View | 160° |
| Contrast Ratio | 2000:1 |
| Operating Temperature | -40-70℃ |
| Storage Temperature | -40-80℃ |
