Home > Products > OLED display > 0.87 inch OLED display module 128x32 driver IC is SSD1316 I2C interface Monochrome oled display

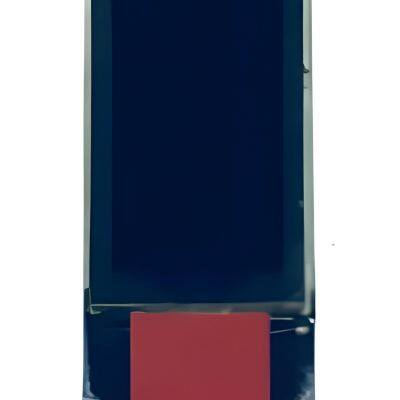

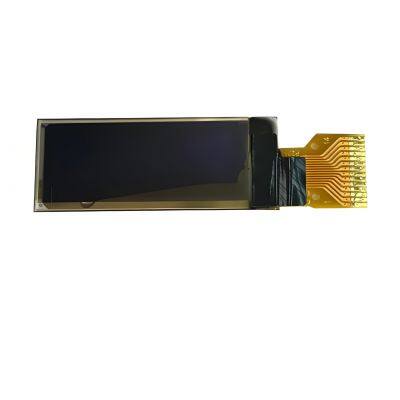

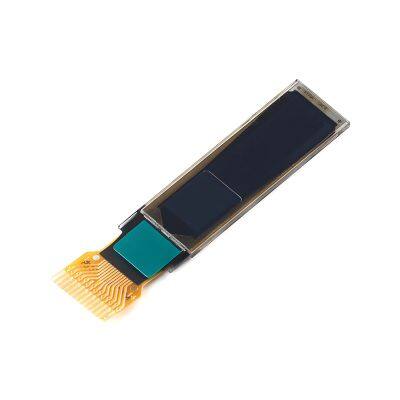

0.87 inch OLED display module 128x32 driver IC is SSD1316 I2C interface Monochrome oled display
US$ 0.90 - 0.97
/ Piece
2 Pieces(Min. Order)
- Shenzhen
- T/T L/C Other
- 7 days
You May Like
-
0.78 inch OLED display module 128x80 driver IC is SH1107G 4-wire SPI interface oled display
-
0.69 inch OLED display module96x16 driver IC is SSD1306BZ, SPI/I2C interface Monochrome oled display
-
0.49 inch 64x32 OLED display module driver IC is SSD1306BZ, I2C interface Monochrome oled display
-
0.42 inch 72x40 OLED display module driver IC is SSD1315, SPI/I2C interface Monochrome oled display
-
3.12 inch OLED display module 256x64 driver IC is SSD1322 SPI/parallel interface Monochrome oled
-
2.42 inch OLED display module 128x64 driver IC is SSD1309 SPI/IIC/parallel interface Monochrome oled
Product Details
| Brand Name | Polymer | Place of Origin | China | |
| Model Number | PLT-0.87 |
Product Description
| Type | OLED |
| Display Size | 0.87" |
| Brand Name | Ploymer |
| Size | 0.87" PMOLED |
| Resolution | 128×32 Dots |
| Driver IC | SSD1316 |
| Interface Type | I2C |
| Display Color | Monochrome(White) |
| Panel Size | 29.0x8.7x1.22 (mm) |
| Active Area | 21.356x5.324 (mm) |
| Module size | 39.5x8.7x1.22 (mm) |
| Pixel Pitch | 0.167x0.137 (mm) |
| Pin | 14 |
| Working Voltage | 1.65~3.3V |
| Brightness(cd/m³) | 360 |
| Driving Voltage | 7.5V |
| Module Structure | 4-wire SPI |
| Wide-angle View | 160° |
| Contrast Ratio | 2000:1 |
| Operating Temperature | -40-70℃ |
| Storage Temperature | -40-80℃ |
