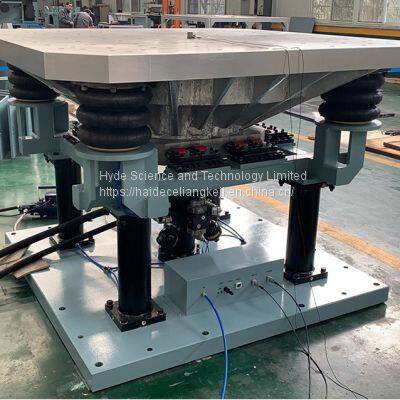

hydraulic vibration test table
KCT70 series hydraulic vibration test system is a tester that can convert the high pressure liquid energy into power to ensure the actuating element’s reciprocating motion of the application cylinder, through the electro-hydraulic servo valve as an energy conversion and amplification device. The frequency can be very low, and the pushing force can be very large, similar to the electrodynamic vibration test system, it can realize sinusoidal vibration, random vibration, multi-point excitation and shock bump by changing its control mode. It can be used in the vibration that transportation tools such as containers, products with large package, mechanical products, electronic and electric products are subjected to in the actual environment, to improve the structure of product and save cost.
Functions and features:
◆ Hydraulic vibration test system can achieve sinusoidal vibration, random vibration, multi-point excitation and shock pump;
◆ The hydraulic vibration test system can realize low-frequency excitation, and has high pushing force and prevents violence, therefore, it can be applied to simulate earthquake excitation, ammunition loading and others;
◆ High-strength aluminum cast or magnesium cast table, ensures the uniformity, consistency and high reproducibility of vibration, and avoids the deformation of the table;
Technical parameter:
Model |
KCT70-5000 |
KCT70-1T |
KCT70-2T |
KCT70-3T |
Pushing force (kN) |
5 |
10 |
20 |
30 |
Frequency range (Hz) |
0~200 |
0~200 |
0~200 |
0~150 |
Max. load (kg) |
250 |
500 |
800 |
1000 |
|
Max. displacement (p-p) (mm) |
100 |
100 |
100 |
100 |
Max. acceleration (m/s2) |
50 |
60 |
50 |
60 |
Table size (mm) |
800*800 |
1000*1000 |
1000*1000 |
1200*1200 |
|
Power supply and consumption power |
AC380V 18kVA |
AC380V 22kVA |
AC380V 30kVA |
AC380V 40kVA |
|
Hydraulic source Cooling mode |
Air cooling |
Water cooling |
||
Environment |
Temperature: 0~40℃, humidity: ≤80%, non condense |
|||
Model |
KCT70-4T |
KCT70-5T |
KCT70-10T |
KCT70-20T |
Pushing force (kN) |
40 |
50 |
100 |
200 |
Frequency range (Hz) |
0~150 |
0~150 |
0~150 |
0~150 |
Max. load (kg) |
1200 |
1500 |
2000 |
2500 |
|
Max. displacement (p-p) (mm) |
100 |
100 |
100 |
100 |
Max. Acceleration (m/s2) |
50 |
60 |
60 |
60 |
Table size (mm) |
1200*1200 |
1500*1500 |
1500*1500 |
1800*1800 |
|
Power supply and consumption power |
AC380V 45kVA |
AC380V 55kVA |
AC380V 90kVA |
AC380V 110kVA |
|
Hydraulic source Cooling mode |
Water cooling |
|||
Environment |
Temperature: 0~40℃, humidity: ≤80%, non condense |
|||
Notes: 1. Horizontal slip table is available to attach to full series of devices whose parameters can be customized.
2. The system standard configuration for controller and sensor are Chinese well-known one, if necessary, it can be equipped with imported controller according to requirements.
3. The system standard configuration for electro-hydraulic servo valve is Chinese well-known one, if necessary, it can choose MOGO valve as an option.
