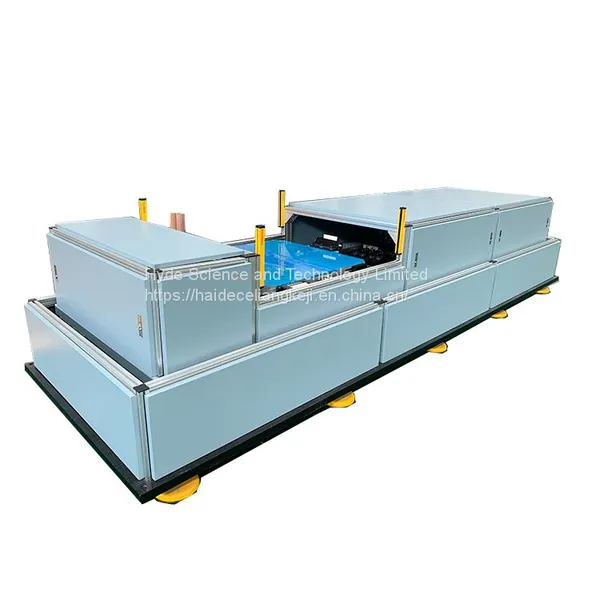

Pneumatic horizontal shock test system
KCT12 series is used to measure and determine the horizontal shock resistance performance of products or package, to check the functional reliability and structural integrity of the test product in a horizontal shock environment. The system can perform the shock test of general half sine wave, post peak sawtooth wave, square wave and other waveforms, to achieve the shock wave and shock energy of the product in the actual environment, then to improve the system or optimize the packaging structure of product.
Functions and features:
◆Windows-based stable control system: fully automatic remote control interface, the operator only needs to input simple values, KCT90 series shock and bump measuring controller can accurately complete the shock test;
◆Unique drive method: driven by shock cylinder, large driving force, short acceleration stroke, low cost and no pollution;
◆ Trapezoidal rail and guide support: large supporting force, good lubricity, no noise, fully automatic positioning table;
◆ Automatic control of shock speed: the shock cylinder is used as the power. The shock overload value is realized by adjusting the air pressure. After the cylinder pressure is set, the computer automatically controls the table shock speed, high accuracy and good repeatability;
◆Forged or cast aluminum table with high performance: Forged or cast aluminum table, provides a higher strength and hardness, and a higher first-order resonance frequency, low noise, and no clutter;
◆The most reliable brake system: The system is equipped with two brake mechanisms, which are more reliable to ensure the safety of the operator, can effectively avoid second rebound bump, and locate the table more safely.
◆Multiple waveforms: replace different waveform generators to perform general half sine wave, post peak sawtooth wave, square wave and other waveforms;
◆ Easy installation: The device has its own base. Adopt a shock cylinder, the drive stroke is short, take up small space, and the installation is convenient.
◆ Perfect measurement system: there are various waveform tolerance zones in the system memory, which is convenient for users to adjust and apply, and automatically complete the test report generation after the test is over;
◆ System compatibility: compatible with a variety of shock measurement and analysis software systems, to provide users with more choices;
◆System extensibility: The shock can be designed to a two-way shock according to user’s needs, to save test time more effectively.
Model |
KCT12-50 |
KCT12-100 |
||||
Rated load (kg) |
50 |
100 |
||||
Table size (mm) |
600*500 mm |
700*500 mm |
||||
Shock waveform |
Half sine |
Post peak sawtooth |
Trapezoid |
Half sine |
Post peak sawtooth |
Trapezoid |
Peak acceleration (m/s2) |
100~ 10000 |
100~ 2000 |
150~1000 |
100~ 10000 |
100~ 1000 |
150~1000 |
Pulse duration (ms) |
40~1 |
18~3 |
18~6 |
40~1 |
16~6 |
16~6 |
Overall dimensions (mm) |
3200*700*700 |
3500*750*700 |
||||
Weight (kg) |
1500 |
1800 |
||||
Power supply |
Three-phase, 380V, 50/60Hz |
|||||
Model |
KCT12-600 |
KCT12-1000 |
||||
Rated load (kg) |
600 |
1000 |
||||
Table size (mm) |
1000*600 mm |
1300*700 mm |
||||
Shock waveform |
Half sine |
Post peak sawtooth |
Trapezoid |
Half sine |
Post peak sawtooth |
Trapezoid |
Peak acceleration (m/s2) |
150~ 4000 |
100~500 |
150~500 |
150~3000 |
100~500 |
150~500 |
Pulse duration (ms) |
40~3 |
18~6 |
12~6 |
60~6 |
18~6 |
12~6 |
Overall dimensions (mm) |
4500*850*700 |
5500*960*750 |
||||
Weight (kg) |
3100 |
4500 |
||||
Power supply |
Three-phase, 380V, 50/60Hz |
|||||
