Home > Lights & Lighting > LED Encapsulation Series > SMD LED > Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip

Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip

Shenzhen Ledcolor Co.,ltd
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip thumbnail-1
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip thumbnail-2
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip thumbnail-3
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip thumbnail-4
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip thumbnail-5
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip photo-1
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip photo-2

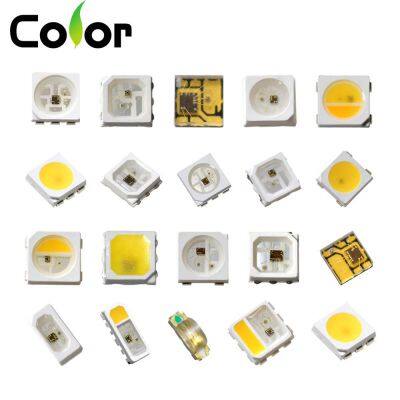

Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip photo-3
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip photo-4
Architectural Led Strip Light Chip Smd 5050 Led Fishchip Pixel Wrgb Led Chip photo-5
US$ 0.053 - 0.054 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
LC8805B-1515RGB
Certification:
CE, ROHS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number LC8805B-1515RGB
Certification CE, ROHS
Power Other, 0.1W/PCS
Color Temperature RGB
Storage Temperature(℃) 020, 60
Operating Temperature(℃) 20, 60
Color Rendering Index(Ra) 80
Viewing Angle(°) 120
Power Dissipation 0.2
Optical Attenuation(%) 0.2
Luminous Flux(lm) 3
Emitting Color Other, RGB
Chip Material AlGaInP
Products Description
Products
LED Type
Chip Input Voltage
R/G/B Port Output Current
Main Parameter
LC8822-5050RGB
5050
DC5V
18mA
Red:(620-630nm,400-800mcd,1.5-2.5LM)
Green:(520-535nm,1400-1800mcd,4.5-6.0LM)
Blue:(460-475nm,300-600mcd,1.0-2.0LM)
Warm White(WW):3000K,14-16LM,≥90Ra
Nature White(NW):4000K,15-17LM,≥90Ra
White(W):6000K,15-17LM,≥90Ra
LC8822-3535RGB
3535
DC5V
18mA
LC8822-2020-6RGB
2020
DC5V
18mA
LC8822-2020-8RGB
2020
DC5V
18mA
LC8822-X
5050
DC5V
18mA
LC8812B-5050RGB
5050
DC5V
12mA
Red:(620-630nm,400-800mcd,1.2-2.0LM)
Green:(520-535nm,1000-1800mcd,3.0-5.0LM)
Blue:(460-475nm,200-400mcd,0.5-1.2LM)
Warm White(WW):3000K,12-16LM,≥90Ra Nature White(NW):4000K,13-18LM,≥90Ra White(W):6000K,13-18LM,≥90Ra
LC8812B-3535RGB
3535
DC5V
12mA
LC8812B-4020RGB
4020
DC5V
12mA
LC8812B-3210RGB
3210
DC5V
12mA
LC8812B-A-3535RGB
3535
DC5V
12mA
LC8812B-X
5050
DC5V
12mA
LC8812B-WWA
5050
DC5V
12mA
White(W):6000K,3.0-5.0LM,≥90Ra
Warm White(WW):3000K,3.0-5.0LM,≥90Ra
Amber(A):1600K,1.0-2.0LM,≥90Ra
LC8812BC-RGBX
5050
DC5V
8mA
RGB+3000/4000/6000K
LC8812BC-4818RGBW
4818
DC5V
8mA
RGB+3000/6000K
LC8812BC-3535RGBW
3535
DC5V
8mA
LC8812BC-RGBY
5050
DC5V
8mA
RGB+Yellow:(585-595nm,300-500mcd,0.8-1.5LM)
LC8812BC-RGBA
5050
DC5V
8mA
RGB+Amber:(600-610nm,300-500mcd,0.8-1.5LM)
LC8808B-3535RGB
3535
DC12V
9mA
Red:(620-630nm,300-500mcd,0.8-1.5LM)
Green:(520-535nm,800-1200mcd,2.5-3.5LM)
Blue:(460-475nm,200-400mcd,0.5-1.2LM)
LC8808B-2020-6
2020
DC12V
9mA
LC8808B-W
5050
DC12V
9mA
Warm White(WW):3000K,9-15LM,≥90Ra
Nature White(NW):4000K,10-16LM,≥90Ra White(W):6000K,10-16LM,≥90Ra
LC8808B-3535W
3535
DC12V
9mA
Packing &Shipment
Packaging:
1000pcs per roll, one roll in one package bag.
Anti-static bags+Neutral packing carton box.

Shipment:
1. Ship Way: Door to Door express or by Air and Sea.
2. Shipping port: Shenzhen, Mainland China.
3. Lead time: 3-5 days fast delivery for small quantity, 7-10 days for bulk order(>10000m).
Our service
1. 24 hours online customer services.
2. Customized design, ODM/OEM Customized Service are available.
3. Professional after-sales support team, full support in the whole control system solutions.
4. Experienced sales consultant help to build your brand.

Warranty:
1. 100% aging test & QC inspection before shipping.
2. We offer 3-5 years Warranty.
view more >>Recommended by seller
Programmable Smart IC Buit-in LC8812CZ-RGBW SK6812 WS2813 APA101 Addressable LED Chip$38.60 - $39.00 / bag2 bags
Programmable Smart IC DC5V Buit-in APA102 High gray high brush LC8826 RGB 65536-level grayscale adjustable LED Chip$64.80 - $65.00 / bag2 bags
0.25w Addressable Sk6812 RGB Yellow/White Sk6812 RGBW 4 in1 Color Chips$51.50 - $53.50 / bag100 bags
High quality individually addressable LC8812BC-RGBW 5v rgb SK6812RGBW led chip$52.00 - $52.50 / bag2 bags
Hot Selling Digital SK6812WWA 4 Pin 5050 SMD WS2812B DC5V 256 Gray Grade Addressable LED Chip$0.0729 - $0.0759 / piece1000 pieces
LED Light Manufacturing SMD LED Chip 2835 High CRI White 2000K-6500K LED Chip For Lighting$0.0439 - $0.0469 / piece1000 pieces
High PWM Frequency Programmable Rgb APA102 2020 Smart LED Chip APA102 SMD2020 Addressable RGB SMD LED Digital SMD LED Chip$0.0736 - $0.0752 / piece1000 pieces
Addressable RGB SK6812 3535 Smart Pixel LED Chip Digital RGB SK6812MINI 3535 4PIN SMD LED Chip Digital RGB SMD LED Chip$0.046 - $0.047 / piece1000 pieces
Company Profile
Hi, welcome to Shenzhen LED Color Co., Ltd.,
Our company was established in 2012, we are a LED company integrating R&D, production, sales and service. Mainly engaged in the production of high-quality addressable LED chips and flexible LED lighting strips.
Our production and management area is about 5500 square meters and there are 100 employees. The company has set up a professional LED dust-free workshop with a number of high speed SMT machines and reflow soldering, semi-automatic boarding machine. Several automatic production lines, and a variety of advanced production equipment, which greatly improve production efficiency and shorten the lead time.
Our vision: To become the leader of the global intelligent LED industry!
FAQ
Why Choose Us ?
1. Factory Manufacturer: We can control the production process, all our products have quality assurance, higher cost-effective and fast delivery.
2. OEM/ODM Service: We are factory manufacturer and can provide OEM/ODM,customized service to meet customers` different demand.
3. Prefessional in LED: Our factory team has 12 years experience in the area of the digital led strip works.
4. Quality Assurance: All our products have to be 100% aged and QC inspection before delivery.
5. Payment Protection: Pay via alibaba 100% payment protection for your covered amount, also support T/T, paypal, western union.


Product Tags: Pixel Wrgb Led Chip , High Quality Dc5v , Bright Led Smd Chip 4 Pins 0.1w
