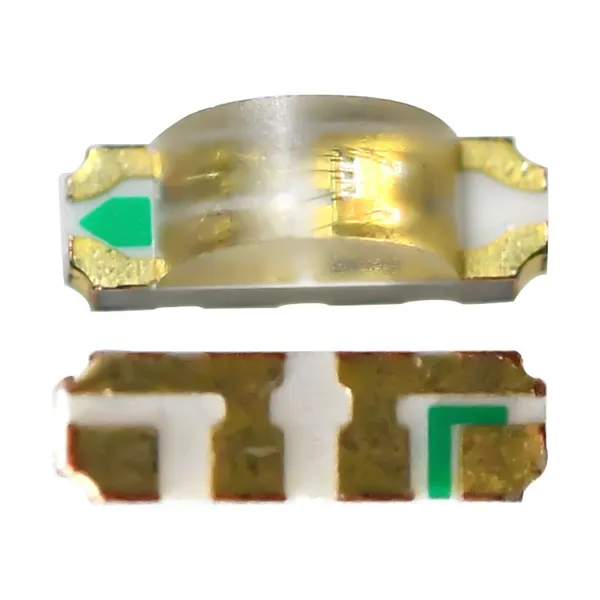

Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light

Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light thumbnail-1
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light thumbnail-2
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light thumbnail-3
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light thumbnail-4
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light thumbnail-5
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light photo-1
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light photo-2
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light photo-3
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light photo-4
Programmable Led Chip Smart Led New Chips 3210 Led Strip Chip For Bar Light photo-5
US$ 0.053 - 0.054 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
LC8805B-1515RGB
Certification:
CE, ROHS
Contact Supplier Request Quote Chat Now
Shenzhen Ledcolor Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number LC8805B-1515RGB
Certification CE, ROHS
Power Other, 0.1W/PCS
Color Temperature RGB
Storage Temperature(℃) 020, 60
Operating Temperature(℃) 20, 60
Color Rendering Index(Ra) 80
Viewing Angle(°) 120
Power Dissipation 0.2
Optical Attenuation(%) 0.2
Luminous Flux(lm) 3
Emitting Color Other, RGB
Chip Material AlGaInP
Products Description
Products
LED Type
Chip Input Voltage
R/G/B Port Output Current
Main Parameter
LC8822-5050RGB
5050
DC5V
18mA
Red:(620-630nm,400-800mcd,1.5-2.5LM)
Green:(520-535nm,1400-1800mcd,4.5-6.0LM)
Blue:(460-475nm,300-600mcd,1.0-2.0LM)
Warm White(WW):3000K,14-16LM,≥90Ra
Nature White(NW):4000K,15-17LM,≥90Ra
White(W):6000K,15-17LM,≥90Ra
LC8822-3535RGB
3535
DC5V
18mA
LC8822-2020-6RGB
2020
DC5V
18mA
LC8822-2020-8RGB
2020
DC5V
18mA
LC8822-X
5050
DC5V
18mA
LC8812B-5050RGB
5050
DC5V
12mA
Red:(620-630nm,400-800mcd,1.2-2.0LM)
Green:(520-535nm,1000-1800mcd,3.0-5.0LM)
Blue:(460-475nm,200-400mcd,0.5-1.2LM)
Warm White(WW):3000K,12-16LM,≥90Ra Nature White(NW):4000K,13-18LM,≥90Ra White(W):6000K,13-18LM,≥90Ra
LC8812B-3535RGB
3535
DC5V
12mA
LC8812B-4020RGB
4020
DC5V
12mA
LC8812B-3210RGB
3210
DC5V
12mA
LC8812B-A-3535RGB
3535
DC5V
12mA
LC8812B-X
5050
DC5V
12mA
LC8812B-WWA
5050
DC5V
12mA
White(W):6000K,3.0-5.0LM,≥90Ra
Warm White(WW):3000K,3.0-5.0LM,≥90Ra
Amber(A):1600K,1.0-2.0LM,≥90Ra
LC8812BC-RGBX
5050
DC5V
8mA
RGB+3000/4000/6000K
LC8812BC-4818RGBW
4818
DC5V
8mA
RGB+3000/6000K
LC8812BC-3535RGBW
3535
DC5V
8mA
LC8812BC-RGBY
5050
DC5V
8mA
RGB+Yellow:(585-595nm,300-500mcd,0.8-1.5LM)
LC8812BC-RGBA
5050
DC5V
8mA
RGB+Amber:(600-610nm,300-500mcd,0.8-1.5LM)
LC8808B-3535RGB
3535
DC12V
9mA
Red:(620-630nm,300-500mcd,0.8-1.5LM)
Green:(520-535nm,800-1200mcd,2.5-3.5LM)
Blue:(460-475nm,200-400mcd,0.5-1.2LM)
LC8808B-2020-6
2020
DC12V
9mA
LC8808B-W
5050
DC12V
9mA
Warm White(WW):3000K,9-15LM,≥90Ra
Nature White(NW):4000K,10-16LM,≥90Ra White(W):6000K,10-16LM,≥90Ra
LC8808B-3535W
3535
DC12V
9mA
Packing &Shipment
Packaging:
1000pcs per roll, one roll in one package bag.
Anti-static bags+Neutral packing carton box.

Shipment:
1. Ship Way: Door to Door express or by Air and Sea.
2. Shipping port: Shenzhen, Mainland China.
3. Lead time: 3-5 days fast delivery for small quantity, 7-10 days for bulk order(>10000m).
Our service
1. 24 hours online customer services.
2. Customized design, ODM/OEM Customized Service are available.
3. Professional after-sales support team, full support in the whole control system solutions.
4. Experienced sales consultant help to build your brand.

Warranty:
1. 100% aging test & QC inspection before shipping.
2. We offer 3-5 years Warranty.
