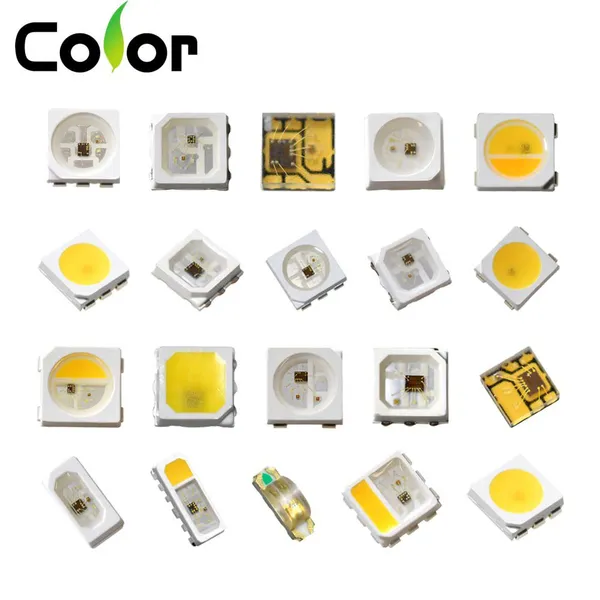

High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip

High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip thumbnail-1
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip thumbnail-2
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip thumbnail-3
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip thumbnail-4
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip thumbnail-5
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip photo-1
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip photo-2
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip photo-3
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip photo-4
High Color Rendering Rgb Led Diode Chips Ws2815 2812 2811 Led Headlight Chip Rgba Rgbwyv Led Chip photo-5
US$ 0.053 - 0.054 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
LC8805B-1515RGB
Certification:
CE, ROHS
Contact Supplier Request Quote Chat Now
Shenzhen Ledcolor Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number LC8805B-1515RGB
Certification CE, ROHS
Power Other, 0.1W/PCS
Color Temperature RGB
Storage Temperature(℃) 020, 60
Operating Temperature(℃) 20, 60
Color Rendering Index(Ra) 80
Viewing Angle(°) 120
Power Dissipation 0.2
Optical Attenuation(%) 0.2
Luminous Flux(lm) 3
Emitting Color Other, RGB
Chip Material AlGaInP
Products Description

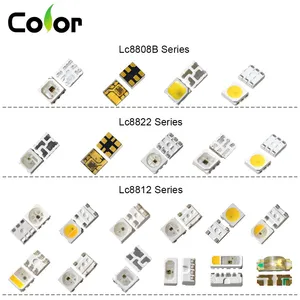

Products
LED Type
Chip Input Voltage
R/G/B Port Output Current
Main Parameter
LC8822-5050RGB
5050
DC5V
18mA
Red:(620-630nm,400-800mcd,1.5-2.5LM)
Green:(520-535nm,1400-1800mcd,4.5-6.0LM)
Blue:(460-475nm,300-600mcd,1.0-2.0LM)
Warm White(WW):3000K,14-16LM,≥90Ra
Nature White(NW):4000K,15-17LM,≥90Ra
White(W):6000K,15-17LM,≥90Ra
LC8822-3535RGB
3535
DC5V
18mA
LC8822-2020-6RGB
2020
DC5V
18mA
LC8822-2020-8RGB
2020
DC5V
18mA
LC8822-X
5050
DC5V
18mA
LC8812B-5050RGB
5050
DC5V
12mA
Red:(620-630nm,400-800mcd,1.2-2.0LM)
Green:(520-535nm,1000-1800mcd,3.0-5.0LM)
Blue:(460-475nm,200-400mcd,0.5-1.2LM)
Warm White(WW):3000K,12-16LM,≥90Ra Nature White(NW):4000K,13-18LM,≥90Ra White(W):6000K,13-18LM,≥90Ra
LC8812B-3535RGB
3535
DC5V
12mA
LC8812B-4020RGB
4020
DC5V
12mA
LC8812B-3210RGB
3210
DC5V
12mA
LC8812B-A-3535RGB
3535
DC5V
12mA
LC8812B-X
5050
DC5V
12mA
LC8812B-WWA
5050
DC5V
12mA
White(W):6000K,3.0-5.0LM,≥90Ra
Warm White(WW):3000K,3.0-5.0LM,≥90Ra
Amber(A):1600K,1.0-2.0LM,≥90Ra
LC8812BC-RGBX
5050
DC5V
8mA
RGB+3000/4000/6000K
LC8812BC-4818RGBW
4818
DC5V
8mA
RGB+3000/6000K
LC8812BC-3535RGBW
3535
DC5V
8mA
LC8812BC-RGBY
5050
DC5V
8mA
RGB+Yellow:(585-595nm,300-500mcd,0.8-1.5LM)
LC8812BC-RGBA
5050
DC5V
8mA
RGB+Amber:(600-610nm,300-500mcd,0.8-1.5LM)
LC8808B-3535RGB
3535
DC12V
9mA
Red:(620-630nm,300-500mcd,0.8-1.5LM)
Green:(520-535nm,800-1200mcd,2.5-3.5LM)
Blue:(460-475nm,200-400mcd,0.5-1.2LM)
LC8808B-2020-6
2020
DC12V
9mA
LC8808B-W
5050
DC12V
9mA
Warm White(WW):3000K,9-15LM,≥90Ra
Nature White(NW):4000K,10-16LM,≥90Ra White(W):6000K,10-16LM,≥90Ra
LC8808B-3535W
3535
DC12V
9mA
Packing &Shipment
Packaging:
1000pcs per roll, one roll in one package bag.
Anti-static bags+Neutral packing carton box.

Shipment:
1. Ship Way: Door to Door express or by Air and Sea.
2. Shipping port: Shenzhen, Mainland China.
3. Lead time: 3-5 days fast delivery for small quantity, 7-10 days for bulk order(>10000m).
Our service
1. 24 hours online customer services.
2. Customized design, ODM/OEM Customized Service are available.
3. Professional after-sales support team, full support in the whole control system solutions.
4. Experienced sales consultant help to build your brand.

Warranty:
1. 100% aging test & QC inspection before shipping.
2. We offer 3-5 years Warranty.
