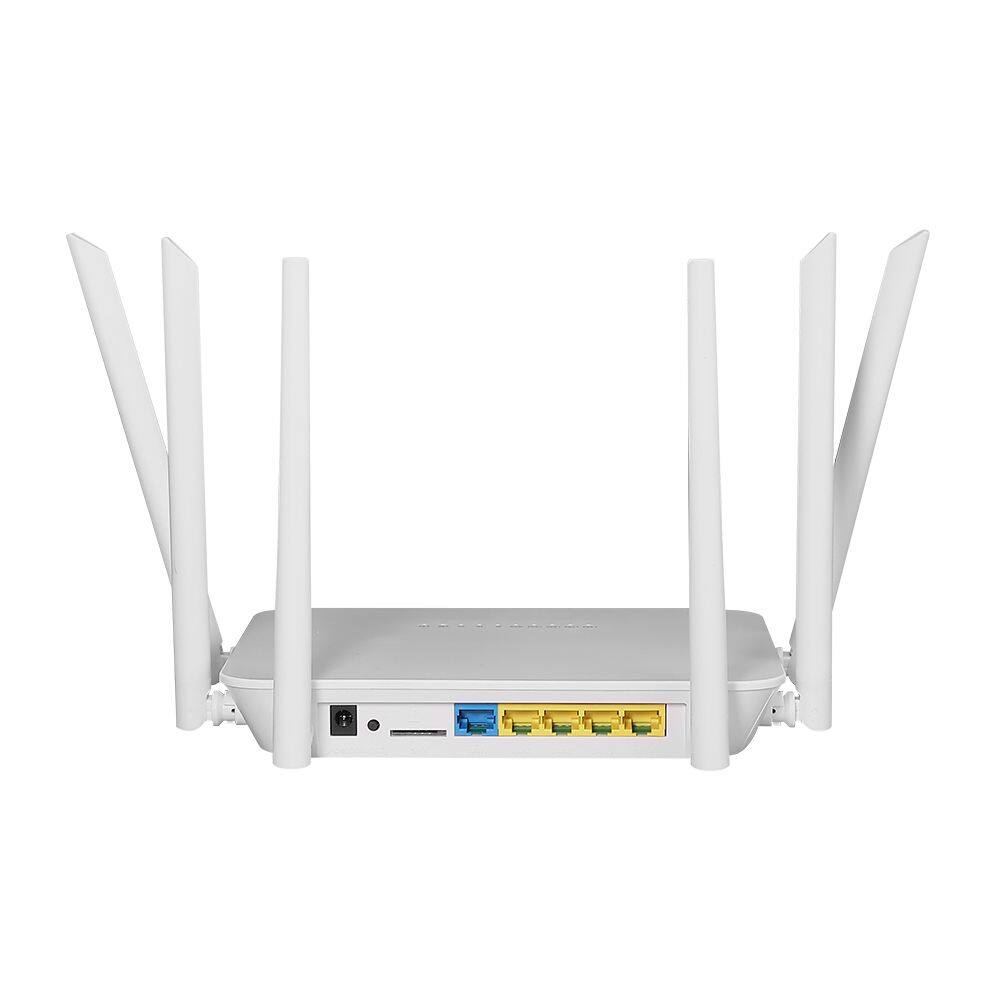

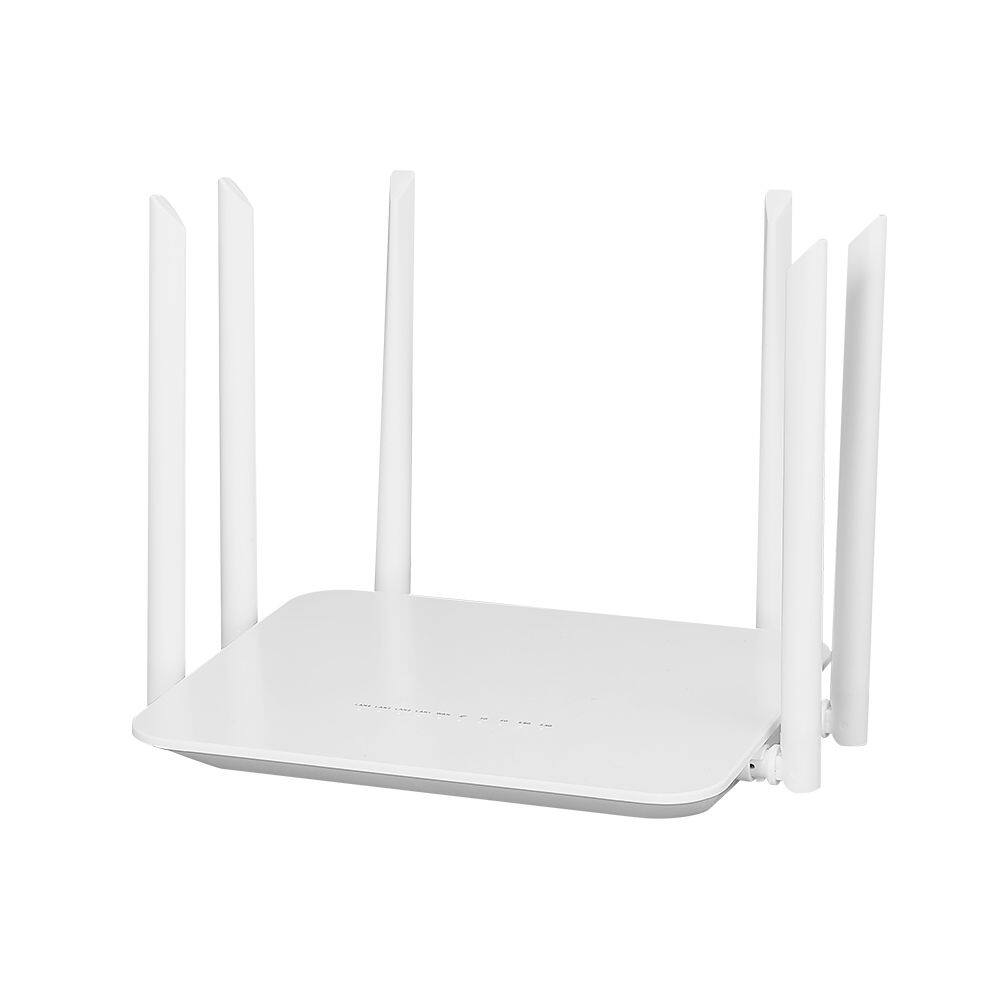

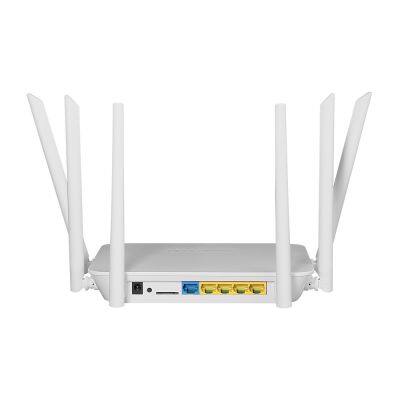

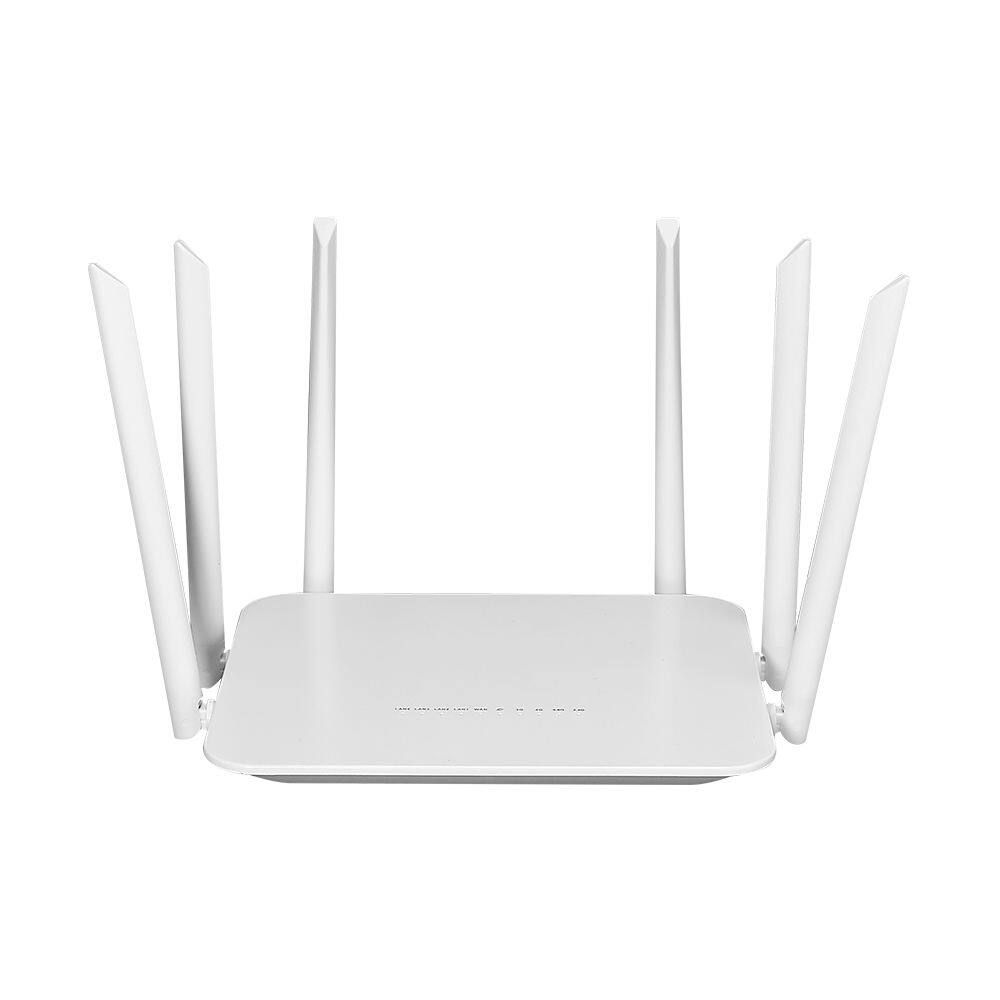

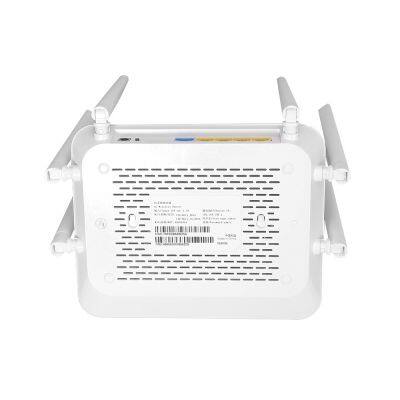

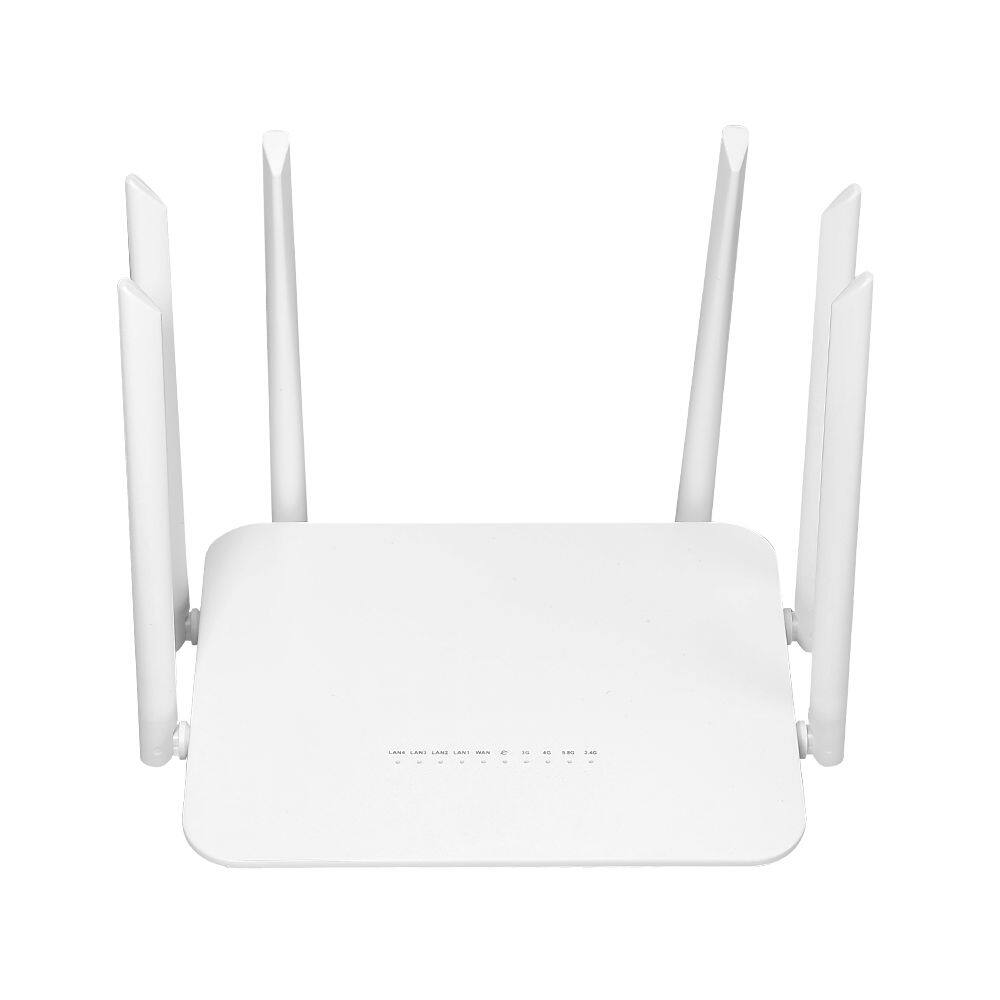

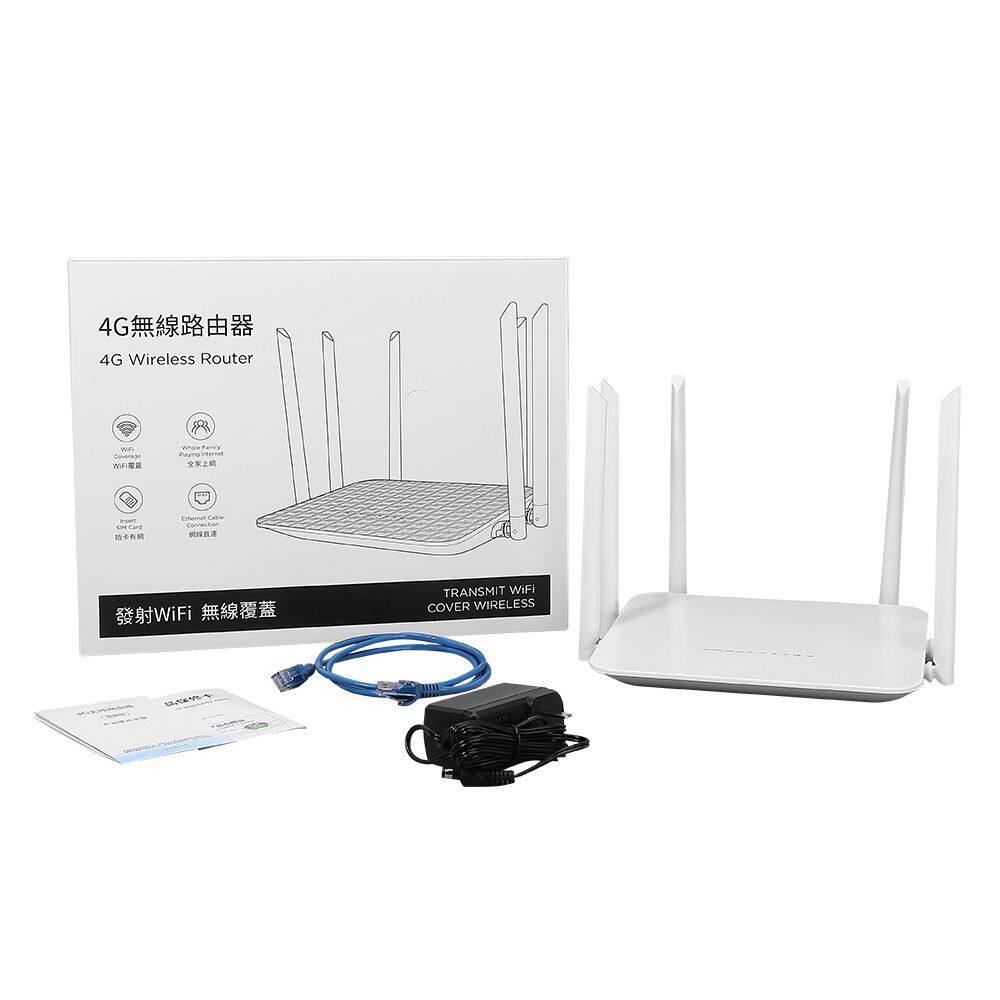

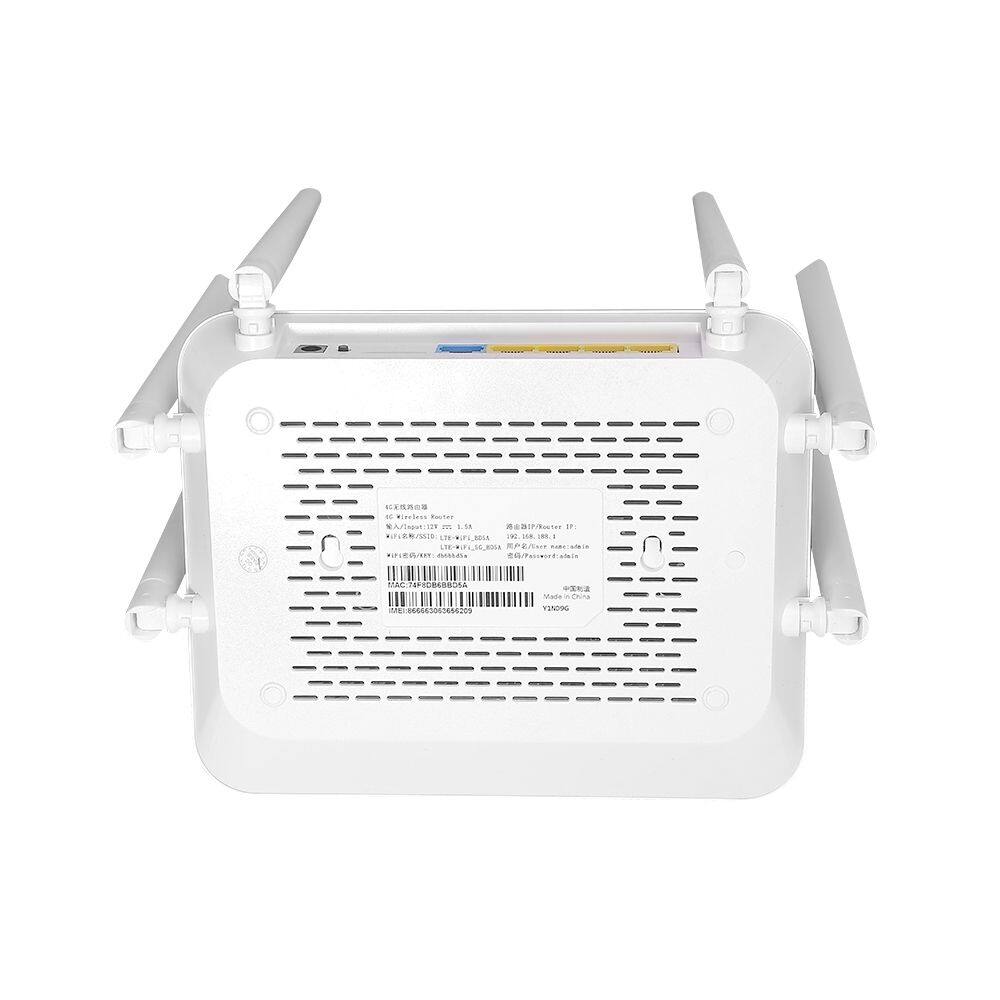

AC1200 Cat 6 OpenWRT 4g Lte Wifi Router

Item no.

HY8210AC-Cat 6

CPU

ASR 1826

Wifi chipset

MTK 7628A+MT7612E

Interface

1 WAN+4 LAN

Button

Reset/wps/wifi

Power Suppply

DC 12V/1.5A

DDR/SPI

64MBytes/16MBytes

SIM Card

2 FF

MIMO for WiFi

2.4G 5dbi X 2; 5.8G 5dbi X 2;

Max. transmitter power for WiFi

802.11a    14dBm±2dBm;

802.11b    22dBm±2dBm;

802.11g    18dBm±2dBm;

802.11n    16dBm±2dBm;

802.11ac   15dBm±2dBm;

WiFi security

WPA/WPA2

Software

APN Setting、Device Settings、Routing Settings、Firewall Settings

System

Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux

Browser

IE (7.0 and later), Firefox (3.0 and later), Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later)

EG060V-EA

LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 ;

LTE-TDD: B38 / B40 / B41 ;

2 × CA②: B1 + B1 / B3 / B5 / B8 / B20 / B28 ;

           B3 + B3 / B5 / B7 / B8③ / B20 / B28 ;

           B7 + B5 / B7 / B8 / B20 / B28 ;

           B38 + B38; B40 + B40; B41 + B41

WCDMA: B1/B5/B8

Protocol

IEEE 802.11n; IEEE 802.11g; IEEE 802.11b

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Dimension

Device: 34*27*6cm; 0.73Kg/pc;

20pc/ctn; CTN size: 63*35*55cm; G.W.: 16.1Kg/ctn;
