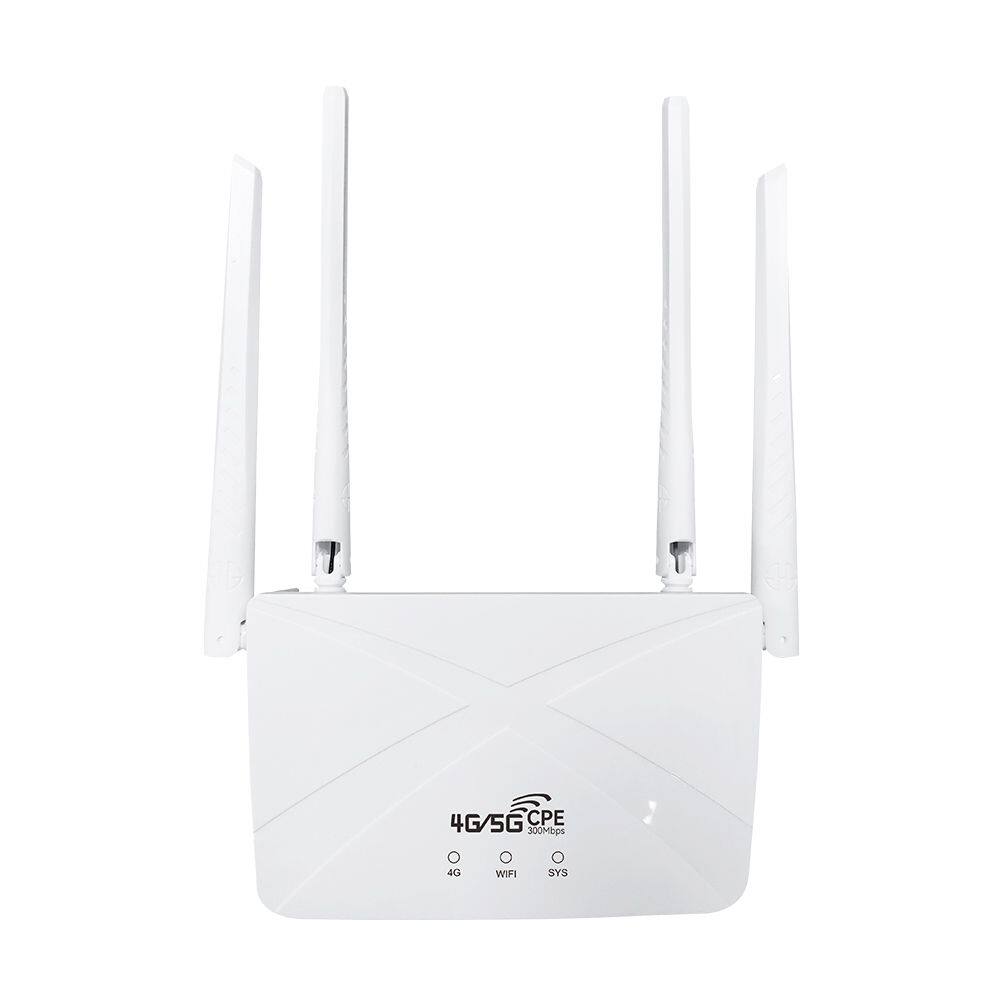

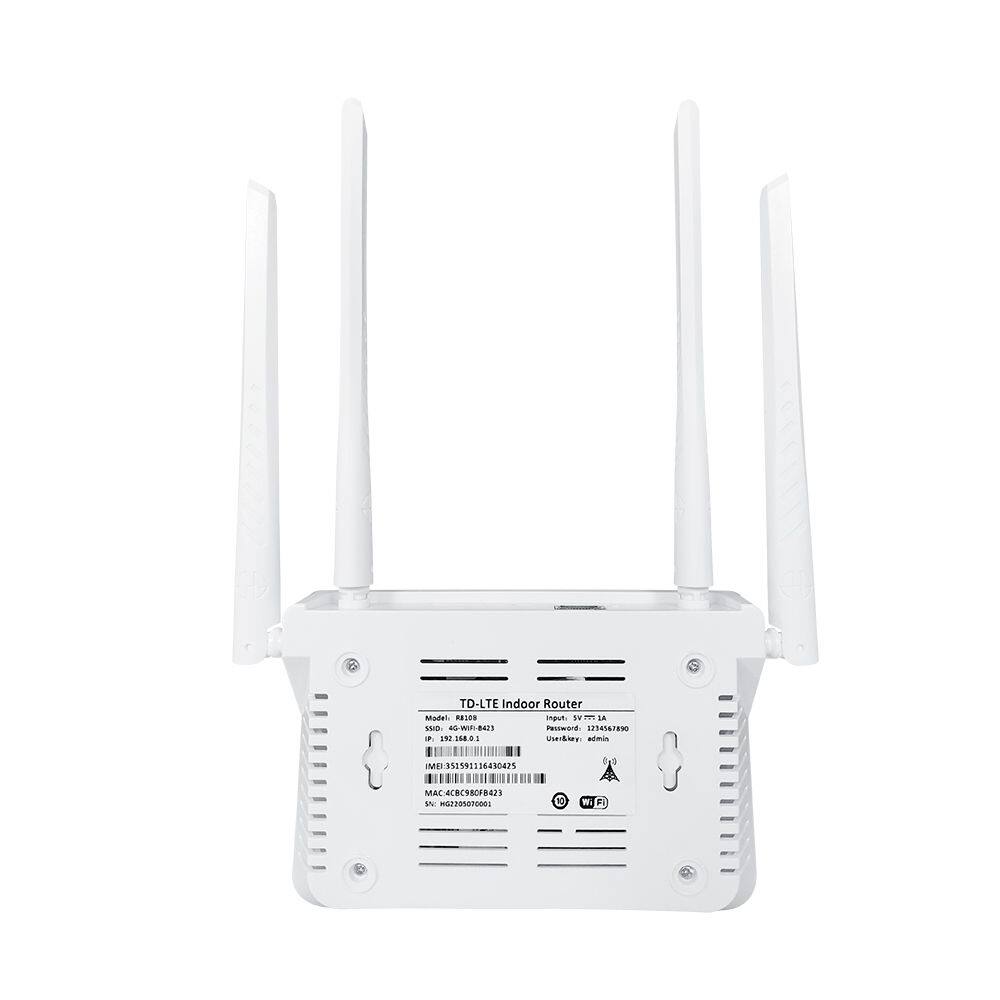

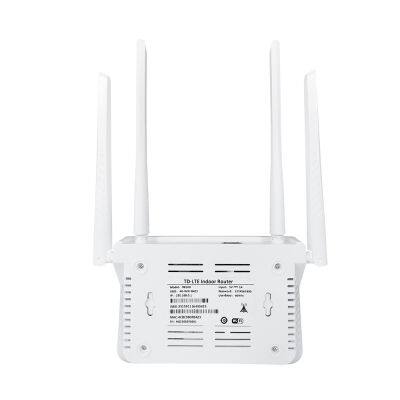

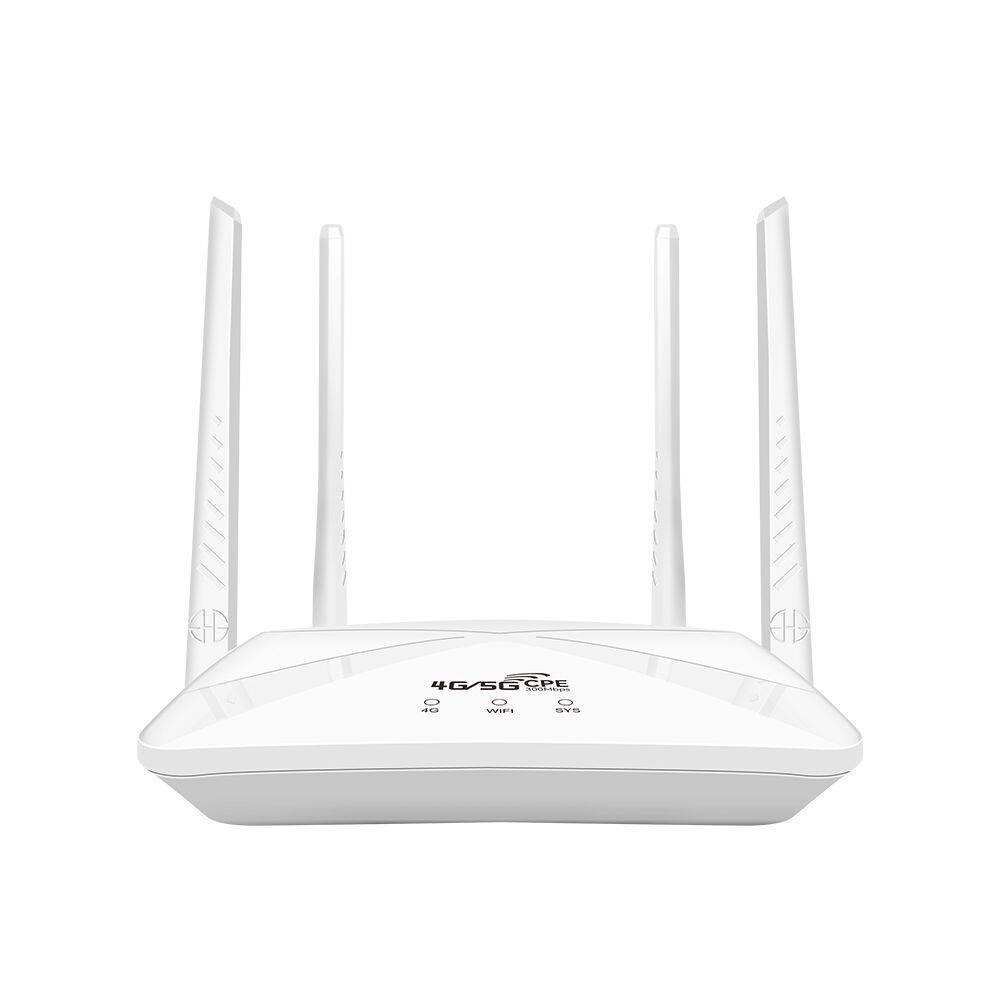

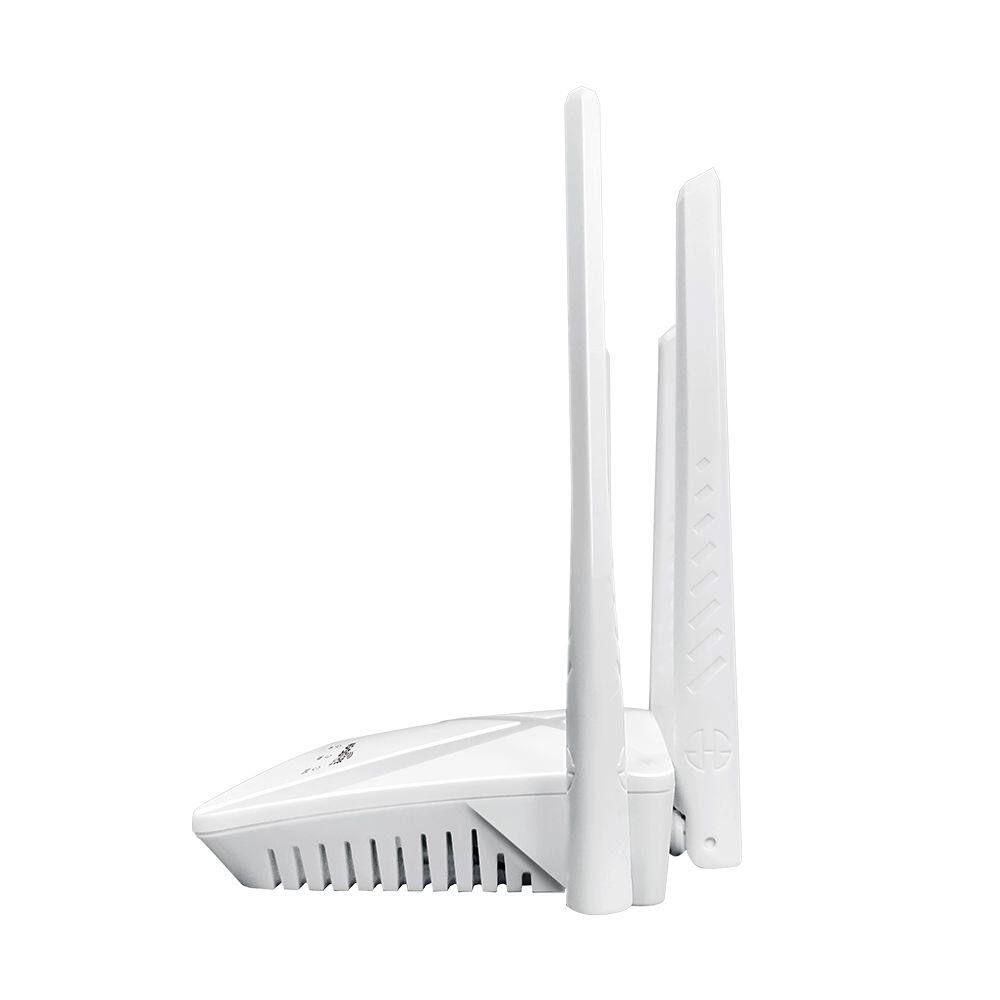

Cat 4 OpenWRT 2.4G Wifi 4g Hotspot Router

Form Factor

4g hotspot router

Dimension

Unit size: 170*107*208mm;

300g/pc

20pcs/ctn, ctn size: 45*41.5*22cm, 7.8Kg/ctn

Color

White or blue

Frequency

LTE:B1/3/5/7/8/20/28/38/40/41

WCDMA:B1/5/8

WIFI

2.4G, WIFI 2*2 MIMO，802.11 b/g/n

Technical Standard

Compatible with WCDMA, FDD-LTE，TDD-LTE

Default 802.11b/g/n

Maximum Data Throughput

LTE CAT 4
FDD-LTE(DL/UL) 300Mbps/150Mbps

HSPA+ (DL/UL)  21/5.76Mbps

Receive Diversity

Support Receive Diversity

MIMO

Support DL 2x2 MIMO

BB Chipset

ZX297520V3

WiFi Chipset

RTL8192ES

WiFi Users

16

power consumption

<10W

Power Voltage

Mircro 5V/1A

USIM/SIM

2FF SIM card
support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal

LED

Power Indication LED， WiFi Indication LED， LAN/WAN
Interface Status LED，Internet Status LED, Signal Strength LED

Antenna

External Antenna

Buttons

Reset,WPS

Ethernet

1LAN, 10BaseT/100Base/ automatic adaptive port

RJ11

N/A

Reset

Pin hole

ESD

Contact±8KV、Air±10KV

Battery

N/A

SW Update

TR069 & FOTA(customized) & Local

WIFI Mode

AP/STATION mode

WIFI Security

OPEN & WPA-PSK& WPA2-PSK

SMS & Phone Book

YES

UPnP

Need customize

IPv4

Support IPv4

IPv6

Support IPv6

Firewall

Mac/IP address filter, Port forwarding, WiFi Black/Whilte list

Data Statistics

Support

SIM Lock

Support

HTTP

Support

DMZ

Support

Operating Temperature

Normal:-10°C to +65°C;

Storage Temperature

-20° C  to +85° C

Humidity

5%~ 95%
