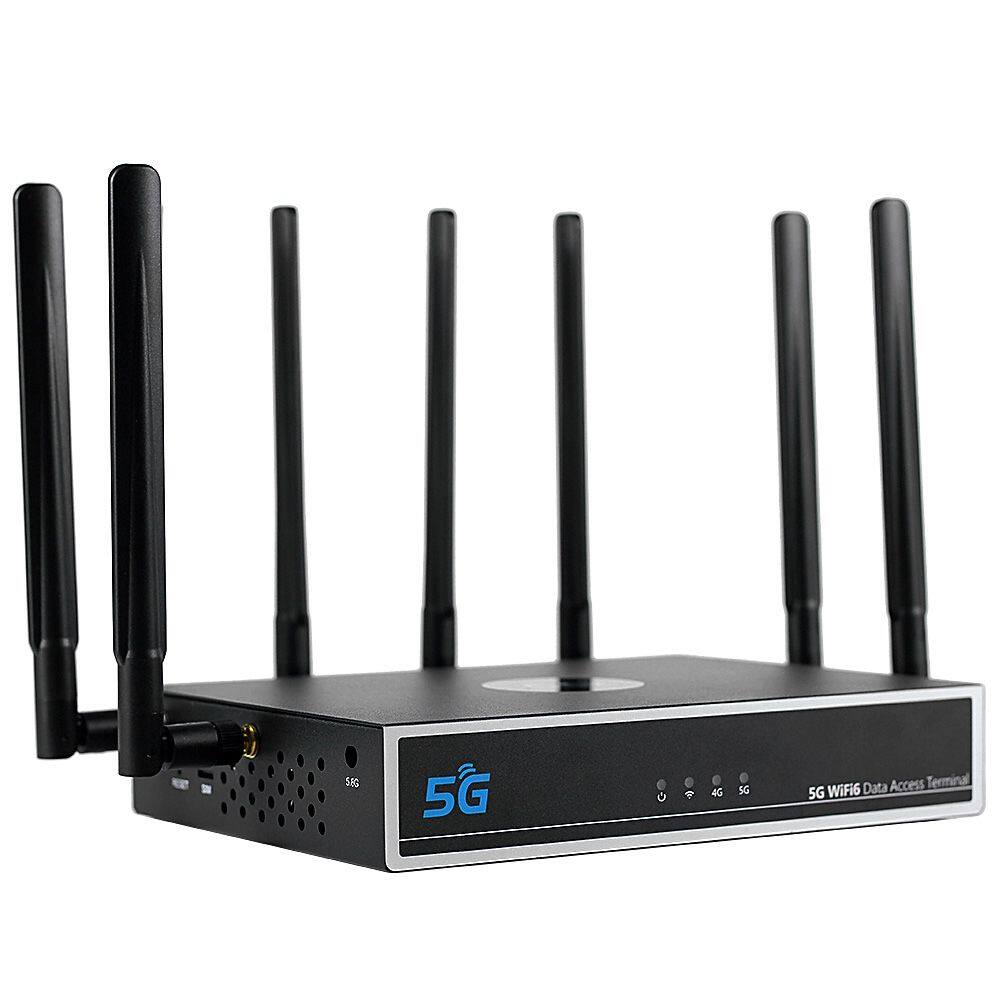

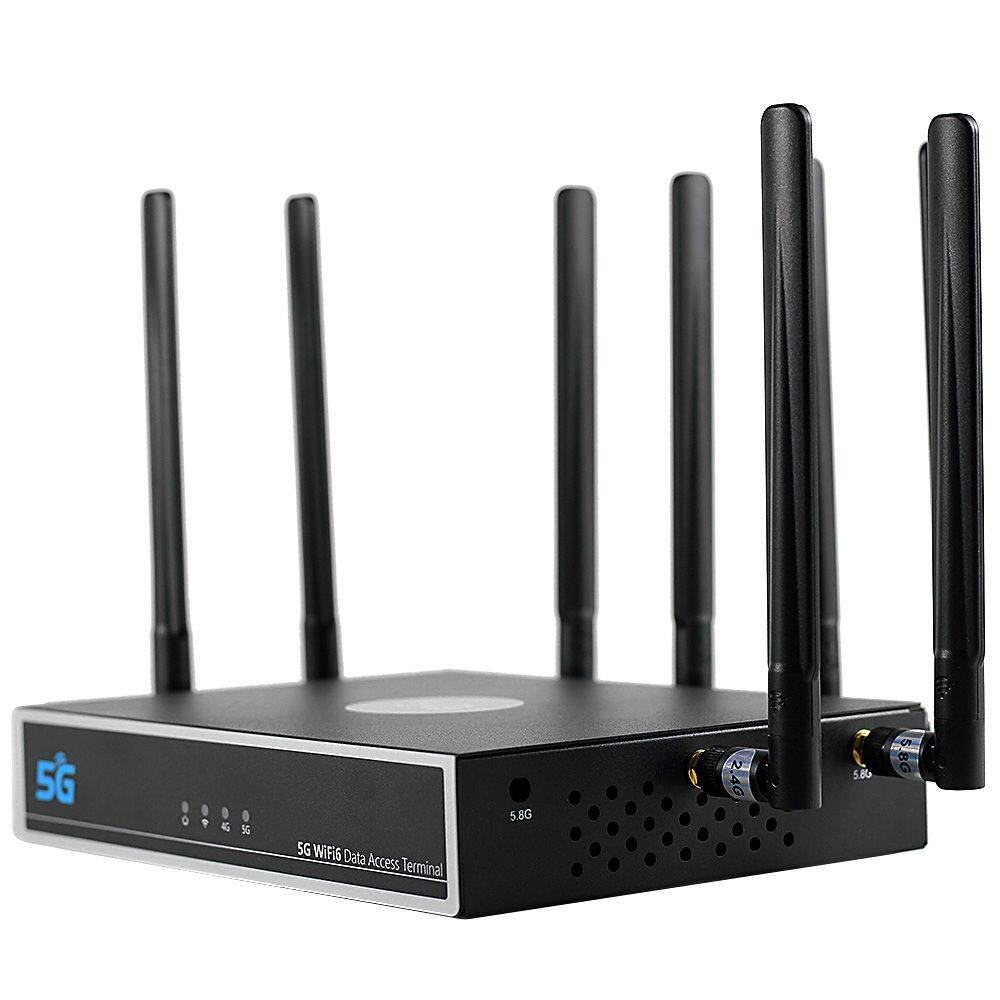

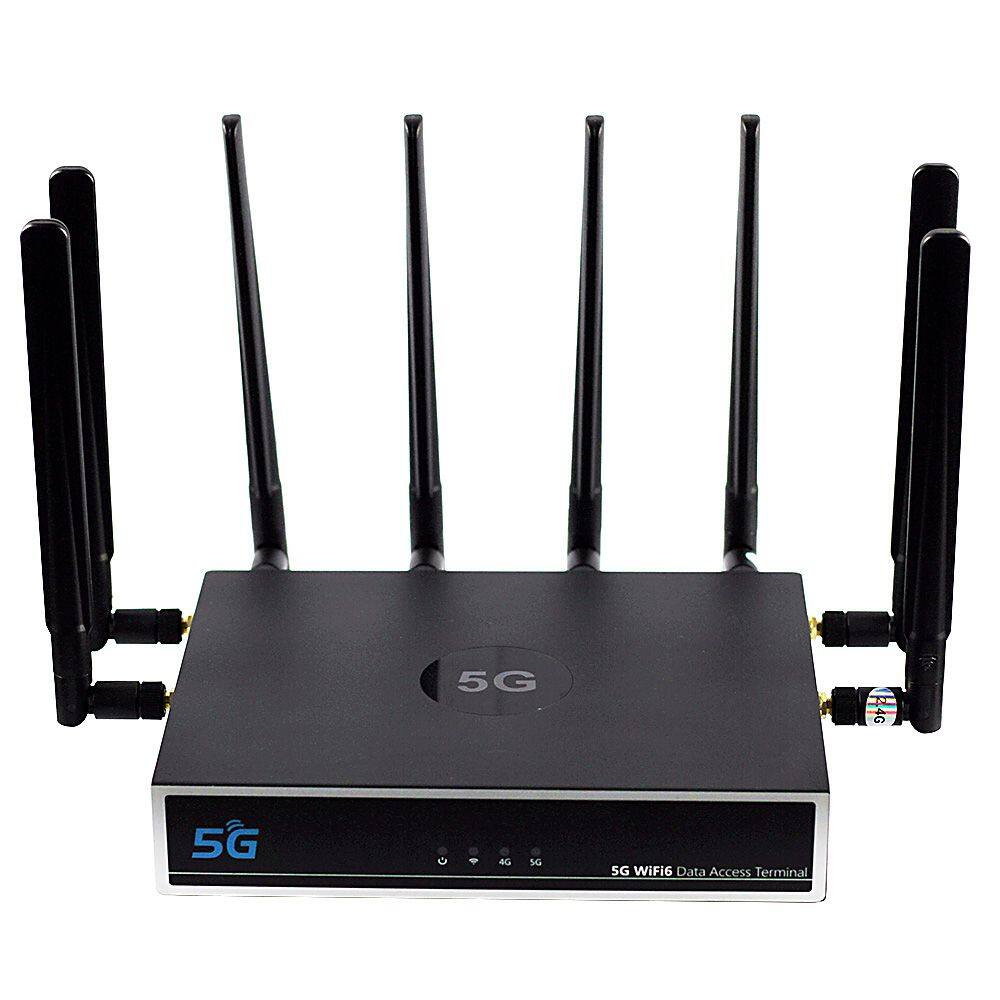

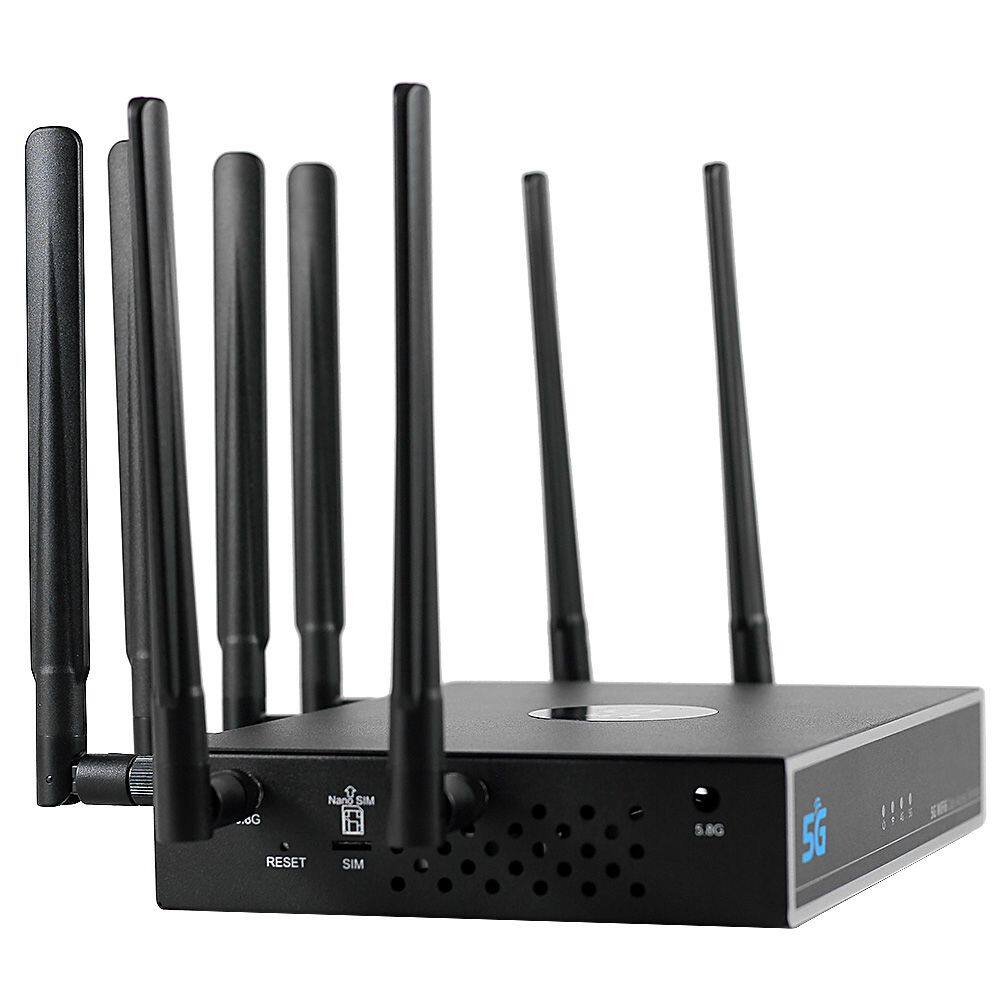

Wifi 6 AX3000 2.4g&5.8g SA NSA Wifi 6 AX3000 2.4g&5.8g SA NSA 5g Router With Sim Slot

Item no.

HY807

CPU

MT7981+SDX62

Memory

16MB flash

128MB NAND

2*256MB DDR 3

Sim slot

Nano-SIM

WiFi Frequency

2.4G&5G

WiFi Standard

2.4G:802.11b/g/n /ax 2T2R MIMO,

5.8GHz：802.11a/n/ac/ax 2T2R MIMO

WiFi

2.4GHz :600Mbps ,5GHz :1200Mbps

5G Standard

3GPP Release 15 NSA/SA operation, Sub-6 GHz

5G/4G Data Rate

5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs)

5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to

ISPs)

LTE: Down 1.0 Gbps; UP 200 Mbps

5G Frequency

5G NR NSA

n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

5G NR SA

n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

LTE Category

Down Cat 19/UP Cat 18

4G&3G

Frequency

FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

TDD: B34/B38/B39/B40/B41/B42/B43/B48

4×4MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66

WCDMA:B1/B2/B3/B4/B5/B8/B19

Wifi receive sensitivity

2.4G:

11X HE20: -70dBm@MCS11, -80dBm@MCS0.

11X HE40: -70dBm@MCS11, -80dBm@MCS0.

11n HT20: -70dBm@MCS7, -80dBm@MCS0.

11n HT40: -70dBm@MCS7, -78dBm@MCS0.

11g: -68dBm@54Mbps, -82dBm@6Mbps.

11b: -70dBm@11Mbps, -85dBm@1Mbps.

5.8G:

11a: -72dBm@54Mbps, -85dBm@6Mbps.

11nHT20: -75dBm@MCS7,-85dBm@MCS0.

11nHT40: -75dBm@MCS7,-88dBm@MCS0

11ac HT80: -65dBm@MCS9

11aX HT80: -65dBm@MCS11

EVM

802.11n@MCS7: ≤ -30dB

802.11g@54M: ≤ -30dB

802.11b@11M: ≤ -15dB

802.11a@54M: ≤ -28dB

802.11ac @MCS9: ≤ -33dB

802.11aX @MCS11: ≤ -33dB

Frequency Deviation

 ±20ppm

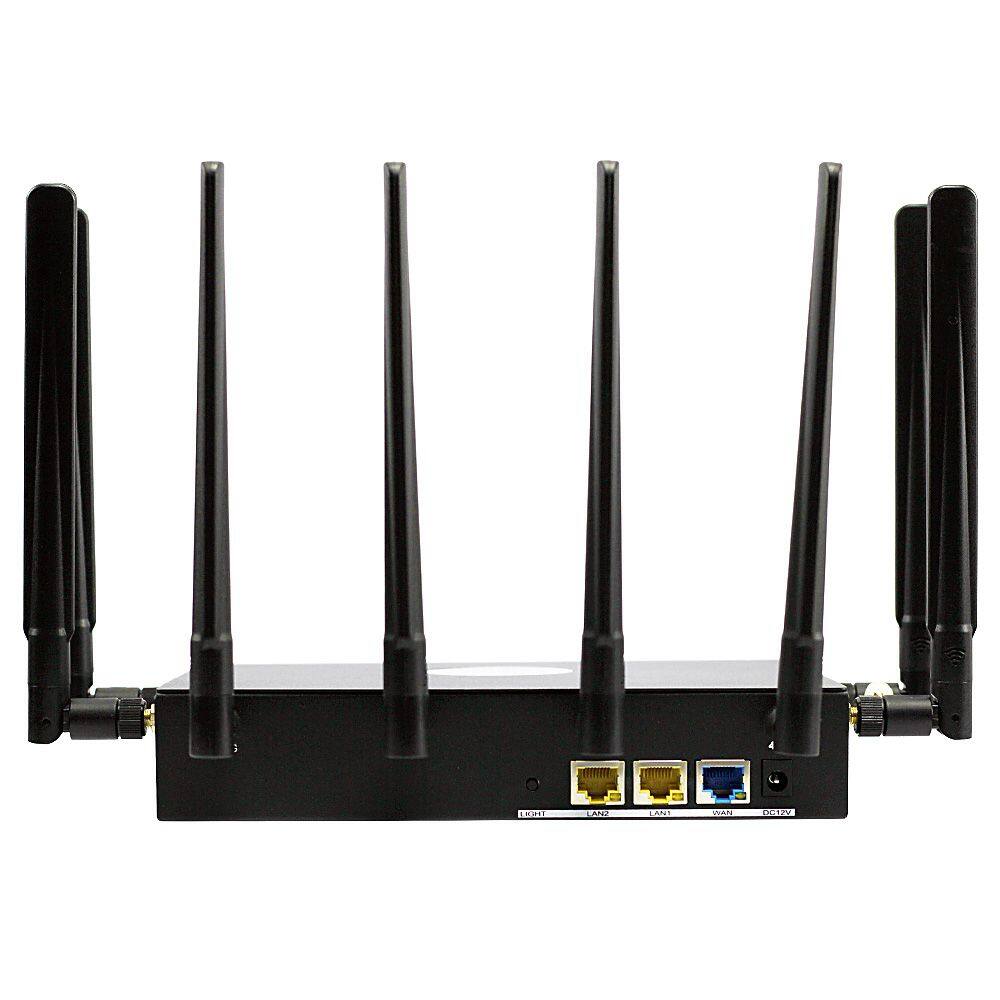

Interface

2*10/100M/1000 LAN

1*2.5G WAN

1*12V 2A DC Power Input

1 Reset Button

1 Breathing Light Button

1 SIM card slot

1 MESH Networking Button

Network Extension

MESH

Reset

Reset（Long press 10 seconds to restore the factory settings）

MESH

Networking: short press (blue networking light flashes)

LED Indicator

Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal

Power Consumption

＜23W

IPV4

Support

IPV6

Support

Smart QOS

Support

Parent Control

Support

UPNP

Support

VPN

Supports L2TP VPN client; Supports PPTP VPN client

APN

Support

DDNS

Support

DMZ

Support

Port Mapping

Support

APP

Support

TR069

Support

WiFi Encryption

Open

WEP

WPA2-PSK

WiFi Encryption WPA3-SAE

WPA/WPA2-PSK

WPA2-PSK/WPA3-SAE

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Dimension

Device: 160*170*80MM

10pcs/ctn size: 528*400*283mm

G.W.: 15Kg/ctn

Package

1m Cat 6 Ethernet cable*1pc, Power Adapter*1pc, Quick Start Guide*1pc, 5G CPE Router*1pc
