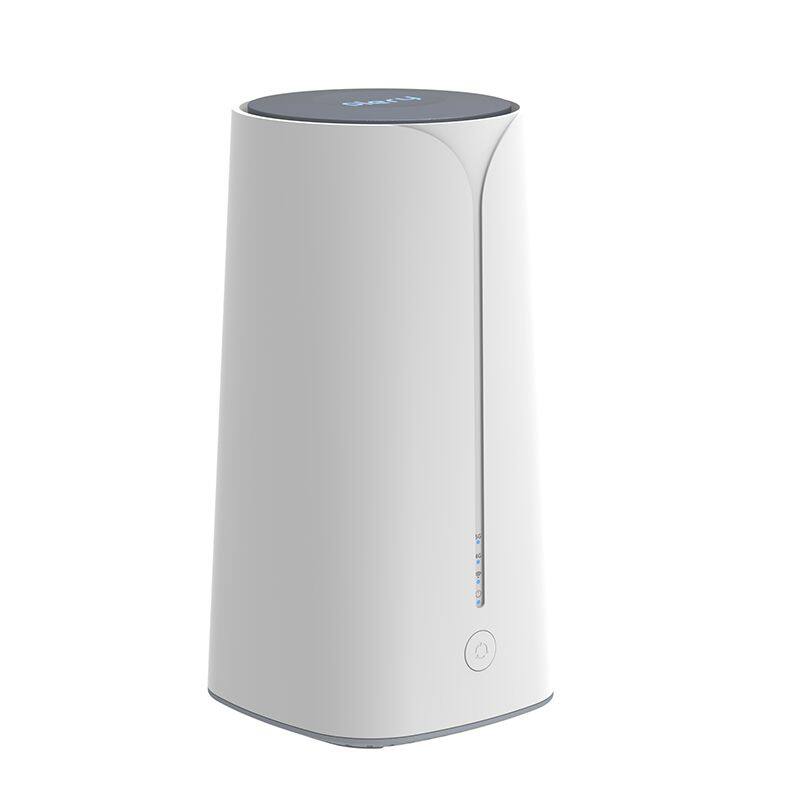

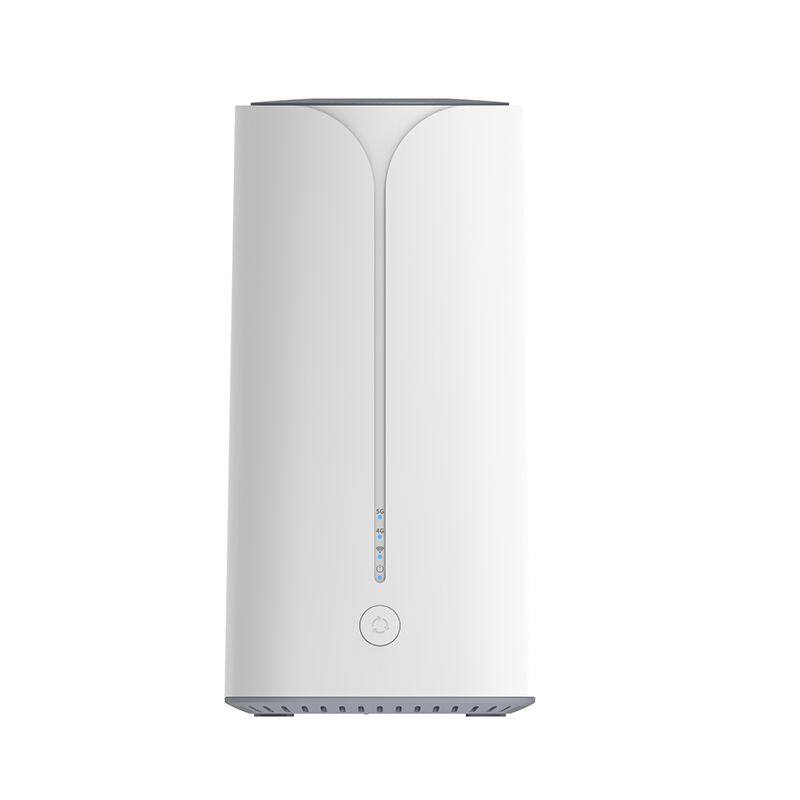

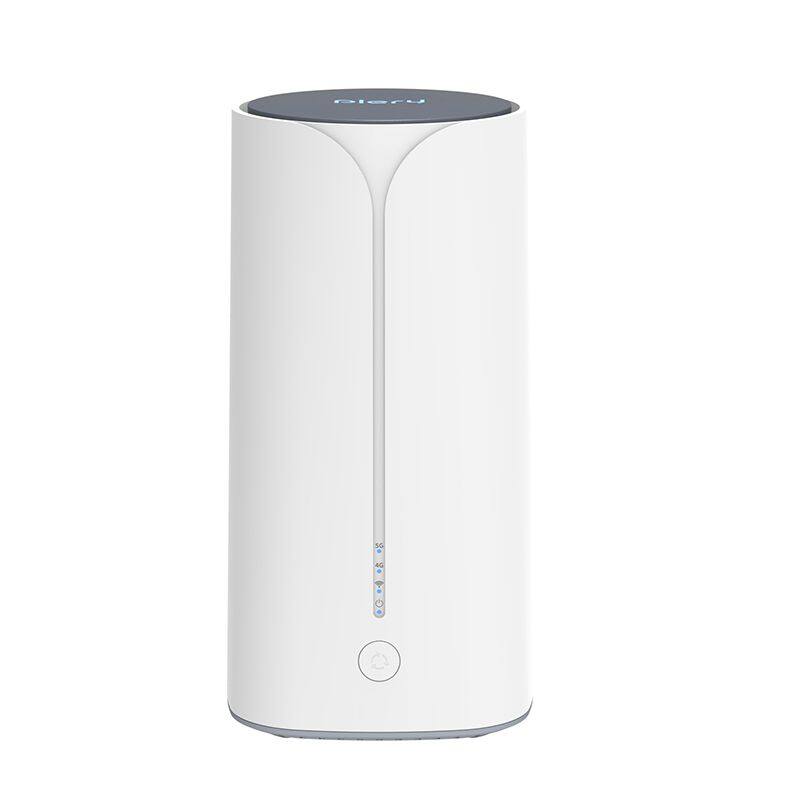

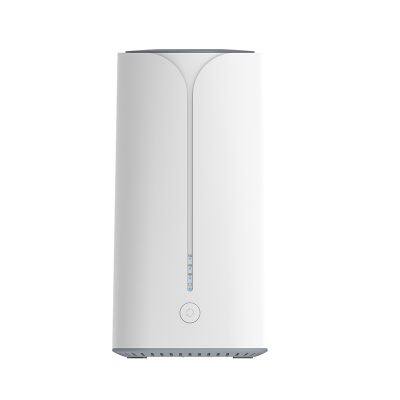

AX3000 Wifi 6 SA NSA 5g Wifi Router With Sim Card Slot

Item no.

HY8652

Chipset

IPQ5018+SDX62

CPU Frequency

Quad core 1GHz

RAM

256MB

Flash

4MB +128MB(NOR+NAND)

 Interfaces

1 x SIM Card Slot

2x RJ45 10M/100M/1000M LAN Ethernet Interfaces

1 x RJ45 10M/100M/1000M WAN Ethernet Interfaces

1 x x Breathing Light Button

1 x Reset button

1 x DC port

1 x MESH button

WIFI Antenna

4 x 3dBi Internal 2.4G&5G Dual Band Antenna

5G/LTE Antenna

4 x 3dBi Internal Antenna

Power Supply

12V/2A

Standard

3GPP Release 16 NSA/SA operation, Sub-6 GHz

Frequency

5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/78/ 79

5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/78/ 79

MIMO DL：4 × 4 MIMO on

n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

Downlink Cat 19/ Uplink Cat 18

LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71

LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48

MIMO DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26

B29/B30/B66/B41/B42/B43/B48/B71

WCDMA B1/ 2/ 4/ 5/ 8/ 19

Transfer Rate

5G SA Transmission Speed:2Gbps/900Mbps (up to ISPs)

5G NSA Transmission Speed:2.2Gbps/576Mbps (up to ISPs)

LTE : Down 600 Mbps；UP 200 Mbps

MIMO

DL: 4 × 4 UL: 2 × 2(only support 5G SA)

Output Power

23dBm±2dBm; 5G NR n38/n41/n77/n78 HPUE 26dBm+2/-3dBm

Wifi Standard

2.4G:802.11b/g/n /ax 2T2R MIMO

5.8GHz：802.11a/n/ac/ax 2T2R MIMO

Modulation Schemes

5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM

WIFI: 1024-QAM / OFDMA

Transfer Rate

2.4GHz: 600Mbps

5.8GHz:2400Mbps

WAN Type

5G/4G/3G/2G or Wired

5G/4G/3G Features

Auto-APN

Auto dial-up

Roaming

SMS(Send/Receive/Delete)

USSD

Data limted

PIN Management

 Wifi

SSID, Broadcast and Hide Wi-Fi Name

WEP, WPA-PSK, WPA2-PSK, WPA/WPA2,WPA3

WiFi Frequency, Channel, Bandwidth

MAC IP Address Blacklist and Whitelist

MESH

 Firewall

NAT(DMZ, UPNP)

telnet, ping, http

Defense Dos Attacks

User Define to Prevent Attacks

 Management

User Access Restrictions

URL Filter

QOS speed limit

System Log

System Settings

Traffic Statistics of Wireless and Ethernet Networks

Ping or Traceroute to Check the Network Working Status

Iperf Speed Test

VPN(PPTP Client/L2TP Client/PPTP Server)

TR069 Remote Management

TR181/TR104/TR140/TR143/TR157(periodicstatistics)

IPV4/IPV6

Upgrade Firmware from Local or OTA

Operating Environment

Operating Temperature:Normal:0°C to +45°C;

Operating Temperature:-20° C to +70° C

Operating Humidity:5%~ 95%

Storage Humidity:5%~ 95%

Dimension

Device: 295*130*129mm

CTN size: 55*28*31.3 CM, 10pc/ctn

G.W.: 9.24 KGS
