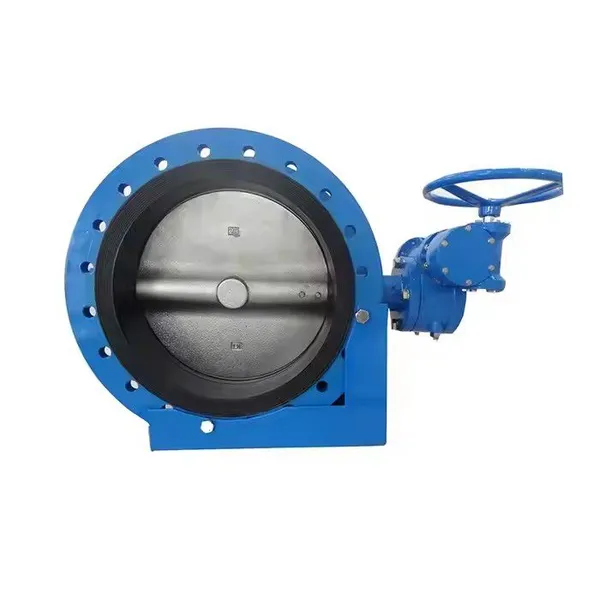

BS5155 Ductile Iron Double Flanged Double Eccentric Butterfly Valve
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price for BS750 DN100 Ductile Iron Fire HydrantNegotiableMOQ: 1 Ton -
API 6D Class 2500 RTJ Ends Split Body 3 Piece Trunnion Mounted Ball ValveNegotiableMOQ: 1 Ton
-
Fire Safe to API 607 Anti Blow-out Stem Cast Steel Trunnion Ball ValveNegotiableMOQ: 1 Ton
-
API 6D Flange 2 Piece Cast Steel 300LB Forged Trunnion Mounted Ball ValveNegotiableMOQ: 1 Ton
-
2PC CF8M and WCB Material Screwed End 1000WOG Ball ValvesNegotiableMOQ: 1 Ton
Size: DN100-DN1800 (4-72”)
Standard:
1. Design standard: BS5155, MSS SP 68.
2. Test standard: DIN3230 Part3, API598, EN12266-1.
3. Face to face standard: DIN3202 F4, EN558 13/14 series, ISO5752 13/14 series.
4. Flange connection: DIN 2501 PN10/16, BS4504 PN10/PM16, ASME B 16.1 125LB/150LB, JIS B2220 10K.
5. Medium: water, oil, gas and so on.
6. Working pressure: 10 bar/16 bar
7. Test pressure:
Shell: 15bar/24 bar
Seal: 11bar/17.6 bar
NO. |
Name |
Material |
Specification |
1 |
Body |
Ductile Iron |
ASTM A536 |
2 |
Disc |
Plated Ductile Iron |
ASTM A536 |
3 |
Stem |
Stainless Steel |
A276-410 |
4 |
Disc sealing |
NBR(NIRILE) EPDM |
|
5 |
Pin |
Stainless Steel |
A182 F6A |
6 |
Clamping ring |
Steel |
|
7 |
Bushing |
PTFE |
|
8 |
Connecting bracket |
Ductile iron |
ASTM A536 |
8 |
Packing gland |
Ductile iron |
ASTM A536 |
10 |
Packing |
EPDM NBR |
