Home > Industrial Equipment & Components > Valve > Ball Valve > 3PCS Threaded Stainless Steel WCB Pneumatic Actuator Control Ball Valve

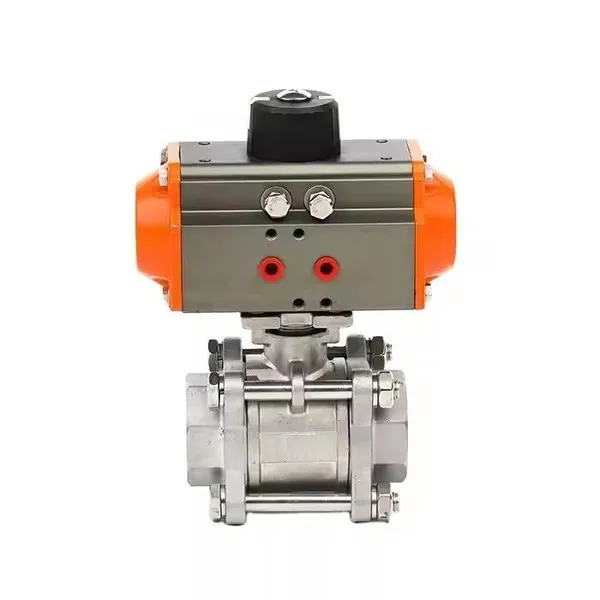

3PCS Threaded Stainless Steel WCB Pneumatic Actuator Control Ball Valve
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carbon Steel WCB 3PC Ball Valve With Bsp/BSPT/NPT ThreadNegotiableMOQ: 1 Ton -
Handle Lever CAST Steel WCB 3 Way Ball Valve L Type With Mounting Pad ISO5211NegotiableMOQ: 1 Ton
-
API 150LB Cast Steel/CF8 /WCB Flanged Type Floating Ball ValveNegotiableMOQ: 1 Ton
-
Stainless Steel 316 CF8M 1000 WOG 2PC Female Thread Ball Valve With Handle LockNegotiableMOQ: 1 Ton
-
PN16 PN40 DIN Flanged RF Floating Ball Type Stainless Steel 3PC Wcb Flanged Ball ValveNegotiableMOQ: 1 Ton
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | Body | CF8M | CF8 | WCB |
| 2 | Ball Seat | PTFE/RPTFE/PPL | ||
| 3 | Ball | 316 | 304 | 201 |
| 4 | Body Gasket | PTFE | ||
| 5 | Cap | CF8M | CF8 | WCB |
| 6 | Stem | 316 | 304 | 201 |
| 7 | Thrust Washer | PTFE | ||
| 8 | Stem Packing | PTFE | ||
| 9 | Gland Nut | 304 | ||
| 10 | Handle | 201 | ||
| 11 | Spring Washer | 304 | ||
| 12 | Nut | 304 | ||
| 13 | Locking Device | 201 | ||
| 14 | Handle Cover | Plastic | ||
Application:
Applicable Temperature: -20ºC ~ 150 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: 1000WOG/2000WOG
Size Range: 1/4" ~ 4"(DN8-DN100)
