Medical Packaging Testing Machine Face Mask Stretching Tester Medical Shield Mask Testing Equipment

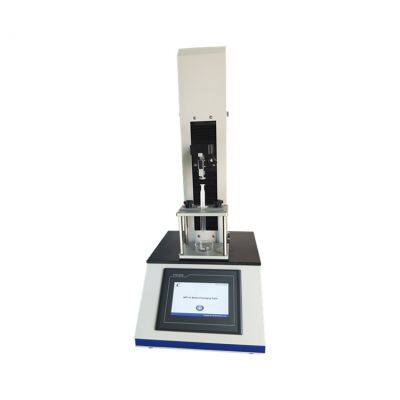

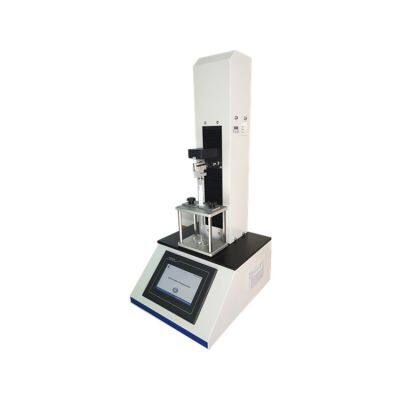

MPT-01 Medical Packaging Tester

Application

A Medical Packaging Tester is a specialized tool used in the medical industry to assess the mechanical properties of various packaging materials for medical devices and pharmaceutical products. It can perform tests such as tensile, compression, tear, opening force, penetration, breaking strength, and pull tests on materials like polymers, bags, ampoules, rubber stoppers, syringes, and needles.

With its adaptable fixtures, this tester is essential for quality control and compliance with regulatory standards in medical device and pharmaceutical packaging.

Versatility

These are various tests and measurements conducted in the medical packaging industry to ensure the quality and safety of packaging materials and components. These tests include:

Penetration Test of Rubber Stoppers in Antibiotic Bottles and Hypodermic Needles

Fracture Strength Test of Ampoule Bottles

Leak Test of Plastic Packages under External Pressure

Connection Force between Hypodermic Needle and Needle Hub/cap

Bottle stiffness test

Bottle lid puncture test with animated finger

Sliding Resistance Test of Pistons

Technical Features

The unit is controlled by a programmable logic controller (PLC) at an industrial level, ensuring stability and reliability. It features an HMI (Human-Machine Interface) touch screen for user-friendly operation. Precision ball lead screw mechanism guarantees precise and consistent speed and displacement control. Customized programs can be designed for specific applications.

Test speed is adjustable.

Dual movement direction tests could be provided

Multiple fixtures available for pulling and compression tests.

Limit protection and automatic returning

Microprinter

Professional software and RS232 port(optional)

Various Clamps Clamps are made on demand

Various Clamps Clamps are made on demand

Main Parameters

Test Range: 500N (or as required)

Stroke: 200mm (without clamp)

Test Speed: 1~500mm/min

Displacement Accuracy: 0.01mm

Accuracy: 0.5% F.S.

Control: PLC and human machine interface

Output: Screen, Microprinter, RS232(optional)

Power: 110~220V
