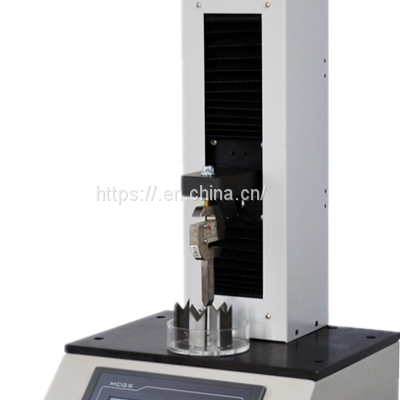

Ampoule Breaking Tester

Description

Ampoules are commonly used to contain pharmaceuticals and they are hermetically sealed by melting the thin top with an open flame, and usually opened by snapping off the neck. The proper breaking force of the neck is crucial for both the pharmaceutical safety and clinical application.

Standard:ISO 9187, GB 2637, YBB00332002

Principle

An ampoule sample is place on the fixtures and the pressing head is driven down by the power system at the speed of 10 mm/m. The breaking strength is detected by the high precision load cell when the pressing head touches ampoule neck and breaks it.

Features

BST-01 ampoule breaking tester is more than this application. It is a compression device with constant rate of displacement, with industrial level stability. Other usage can also be applied in pharmaceutical and medical sector, such as compression, cap opening, syringe gliding force, puncture, stopper penetration etc.

Key Parameters

Test Range                            0~200N (Or as required)

 Speed                                  1~500mm/min (10mm/min for ampoule)

 Resolution                           0.1N

 Accuracy                              0.5% F.S.

 Power Supply                      AC 110~220V 50/60Hz

 Dimension                           400 mm (L) x 360 mm (W) x 800 mm (H)
