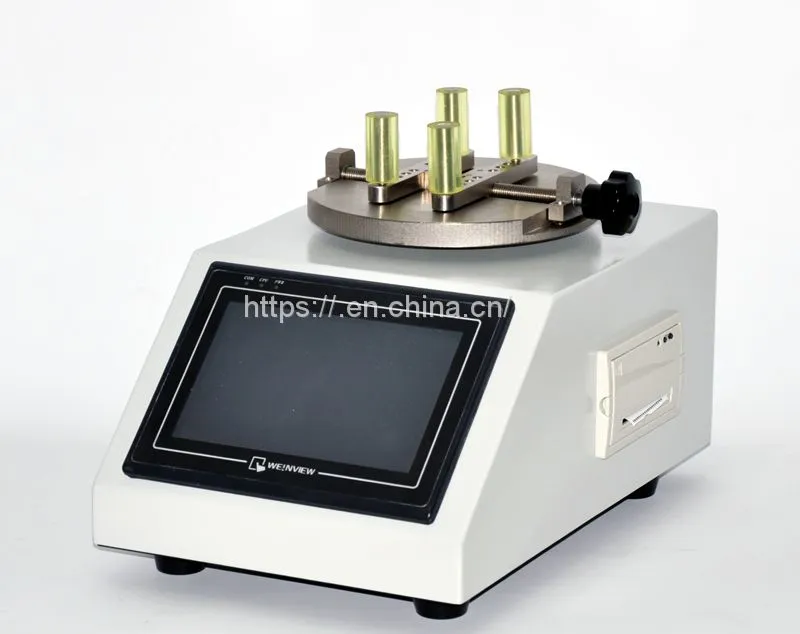

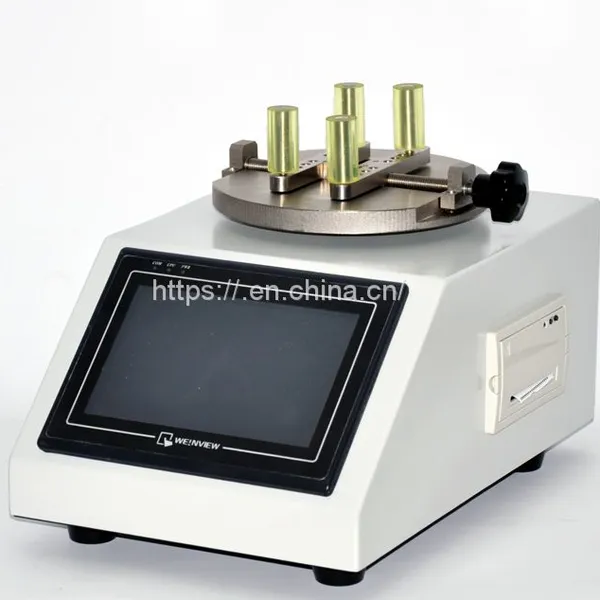

Help CenterTorque Test Instrument TT-01
Related Products
Description
The open and lock forces of bottle caps are important online and offline technical parameters of production. They can influence the transportation and consumption of products. Its great stability and precision make it a necessity for the manufacturing process. Torque Tester measures the open force and lock force of the caps of medicine bottles, PET bottles, spout bags and flexible tube packages. The torque test can determine the proper lock and open force of caps in production and thus guide the transportation and consumption process.
Features
It's a PLC controlled unit (industrial level stable) and HMI touch screen operated device
RS232 port and professional computer software (optional)
Standards
ASTM D2063, ASTM D3198, ASTM D3474, GB/T17876, BB/T0025, BB/T0034
Parameters
Test Range 10 Nm (or as required) Accuracy 1% FS Resolution 0.001 Nm Clamp Range Φ5mm~Φ170mm(or as required) Power AC 110~220V
