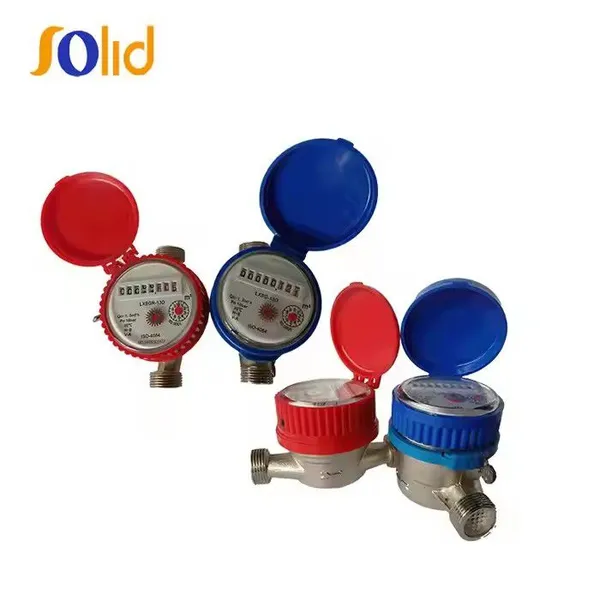

Manufacturer Brass Single Jet Type Water Meter
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15mm-25mm Rotary Type Single-Jet Brass Body Valve Controlled Water Flow MeterNegotiableMOQ: 1 Ton -
Class B R160 DN15 DN20 Brass Home Water Meter Body Single-Jet Dry Type Cold Water MeterNegotiableMOQ: 1 Ton
-
ISO4064 Class B R80 Single-Jet Dry Type Cold Water Meter Brass Water MeterNegotiableMOQ: 1 Ton
-
China Single Jet Dry Type Pulse Output Transmission Domestic Cold Water MeterNegotiableMOQ: 1 Ton
-
DN15 DN20 Domestic Plastic Single-Jet Dry Type Vane Wheel Water MeterNegotiableMOQ: 1 Ton
Product Name: Vane Wheel Single-Jet Super Dry Dial Magnetic Type Cold (Hot) Water Meter
Specification:
Item |
Standard |
Operating condition |
PN: 1.0/1.6 Mpa (10/16bar) |
The water temperature |
cold water up to 50℃ and hot water up to 90℃ |
Standard |
ISO 4064 Class B |
Material |
Brass |
Size |
DN15 - DN50 |
Pressure loss |
ΔP63 |
Application:To totalize the total volume of water passing through the pipeline.
Features: Large measuring range, high flow accuracy; Long life of service; Reliable operation; Magnetic shield protection; Vacuum sealed register. Upon request, the meter can be equipped with pulse output device.
Error curve: From qt inclusive up to and including qs is ±2%; From qmin inclusive up to but excluding qt is ±5%.
Packing:Carton + pallet.
