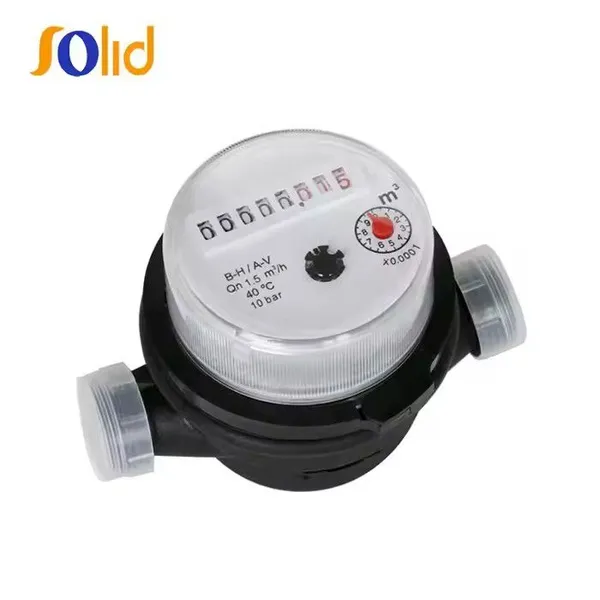

DN15 DN20 Domestic Plastic Single-Jet Dry Type Vane Wheel Water Meter
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN15mm-20mm Class B Vane Wheel Brass Body Single Jet Super Dry Type Cold Water MeterNegotiableMOQ: 1 Ton -
Factory 15-20mm Class B Brass Single Jet Impulse Cold Water Meter With Pulse OutputNegotiableMOQ: 1 Ton
-
ISO4064 R160 Class C Brass Copper Blue Volumetric Rotary Piston Water MeterNegotiableMOQ: 1 Ton
-
ISO 4064 Class C DN20 Water Meter Rotary Piston Volumetric Type Water Meter ManufacturerNegotiableMOQ: 1 Ton
-
Blue Color DN20 Class C/ R160/ R200 Rotary Piston Volumetric Type Smart Water MeterNegotiableMOQ: 1 Ton
APPLICATION:
Measuring the volume of cold potable water passing through the pipeline.
FEATURES:
Single jet, Dry dial, Plastic body;
Magnetic drive, magnet resistance;
Optimum accuracy and performance at all times;
External adjustment device
Accurate measurement, easy and long term clear reading, up to Class C;
Pulse output (Optional)
WORKING CONDITION:
Water temperature: ColdWater Meter ≤50ºC Hot Water Meter ≤90ºC
Water pressure: ≤1.0Mpa (10bar) or 1.6Mpa (16 bar on request)
MAXIMUM PERMISSIBLE ERROR:
In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2%
