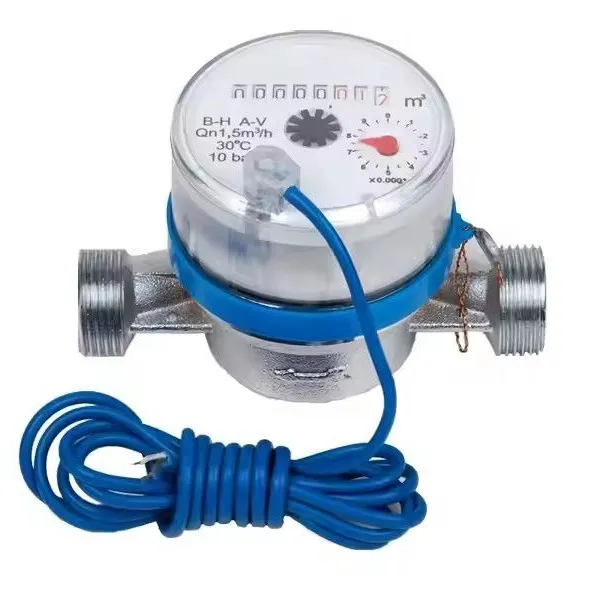

Help CenterChina Single Jet Dry Type Pulse Output Transmission Domestic Cold Water Meter
Related Products
-
DN15 DN20 Domestic Plastic Single-Jet Dry Type Vane Wheel Water MeterNegotiableMOQ: 1 Ton -
DN15mm-20mm Class B Vane Wheel Brass Body Single Jet Super Dry Type Cold Water MeterNegotiableMOQ: 1 Ton
-
Factory 15-20mm Class B Brass Single Jet Impulse Cold Water Meter With Pulse OutputNegotiableMOQ: 1 Ton
-
ISO4064 R160 Class C Brass Copper Blue Volumetric Rotary Piston Water MeterNegotiableMOQ: 1 Ton
-
ISO 4064 Class C DN20 Water Meter Rotary Piston Volumetric Type Water Meter ManufacturerNegotiableMOQ: 1 Ton
Single-jet,dry-dial cold(hot) water meter
Application
Measuring the volume of cold potable water passing though the pipeline.
Feature
a)Single-jet,dry-dial,free rotating register,small size and lighet weight;
b)Magnetic drive,Resistance to exterior magnet interference;
c)Keep the reading clear in a long time;
d)Measuring conform to ISO4064 class B;
e)Good looking.
Working condition
Water temperature:0.1℃~40℃
Water pressure:≤1.0MPa(1.6MPa)
Maximum permissible errors
(1). In lower zone from incluing the min flow to excluding the transitional flow:±5%.
(2). Inupper zone from incluing the transitional flow to including the max flow:±2%.
MAIN TECHNICAL SPECIFICATIONS
Type |
Size(mm) |
Class |
Overload Flow |
Permanent Flow |
Transitional Flow |
Min. Flow |
Min. Reading |
Max. Reading |
m3/h |
L/h |
M3 |
||||||
LXSG-15S |
15 |
B |
3.0 |
1.5 |
120 |
30 |
0.000 |
199,999,999 |
LXSG-20S |
20 |
B |
5.0 |
2.5 |
200 |
50 |
0.0001 |
99,999,999 |
DIMENSION
Type |
Size |
Length |
Width |
Height |
Connecting Thread |
mm | |||||
LXSG-15S |
15 |
110 |
75 |
72 |
G3/4B |
LXSG-20S |
20 |
130 |
75 |
72 |
G1B |
If you are interested in our water meter, please feel free to contact us!
